EQLR Easy® 450/750 V

The cable may be used for fixed installation indoors and outdoors, also in ground and water, for control and signalling functions in power electrical applications.

Download all documents

Products

Description

Standards

Product

HD 627.4 S1/C1
National

SS 424 03 21

Description

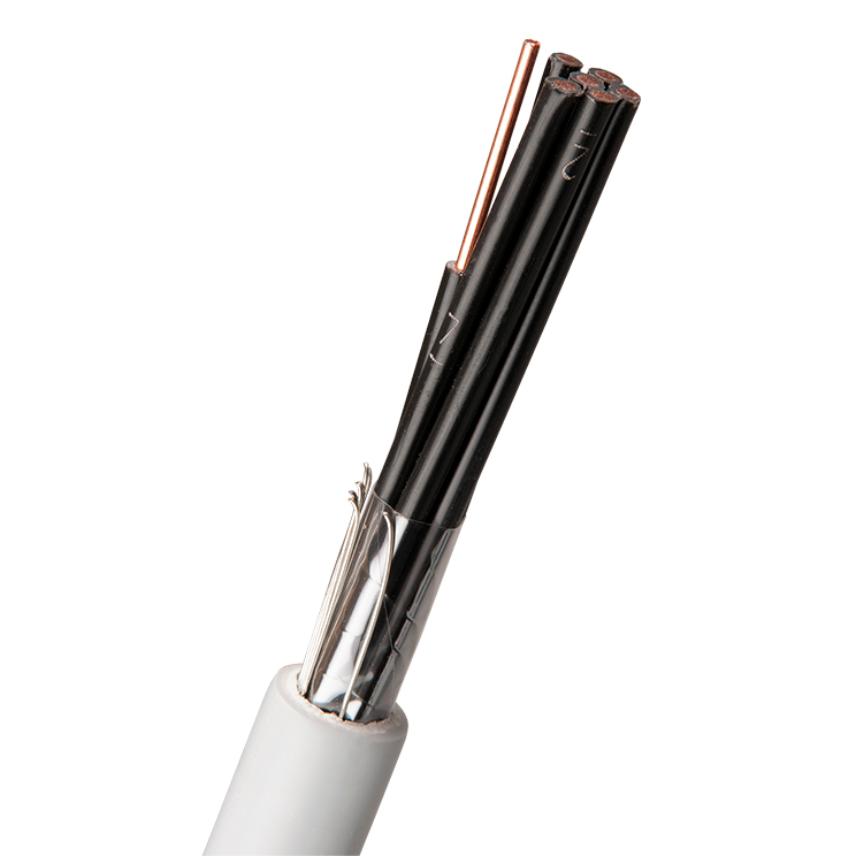

EQLR Easy is a halogen free HFFR-insulated, aluminium screened, HFFR-sheathed control cable with circular, solid copper conductors. The cable is designed according to HD 627 in applicable parts. The conductors have resistance and number of wires according to IEC 60228 class 1. The cores are identified by numbers according to HD 308. The sheath is marked type/manufacturer/year+month/metre marking. EQLR Easy meets the requirements for fire classification according to CPR class Dcas2,d2,a2 and emits no corrosive gases during fire and has low smoke production.

Lifemark™ recycling marking

The external surface of the outer sheath is embossed with a text which specifies all components in the polymers and prepares the cable for future recycling.

Standards

EQLR Easy is manufactured and tested according to HD 627.4-C1 in applicable parts.

Certification

Certified by Intertek.

Quality and environmental management system

Certified according to ISO 9001, ISO/TS 16949 and ISO 14001.

Characteristics

Construction characteristics

Conductor material

Copper

Conductor shape

Circular

Insulation

Halogen free polyolefin

Insulation colour

Black

Core identification

Numbers

Screen

Aluminium tape with tinned copper drain wire

Outer sheath

HFFR (polyolefin)

Colour

Grey

Halogen free

Yes

Dimensional characteristics

Conductor cross-section

1.5 mm²

Electrical characteristics

Rated Voltage Uo/U (Um)

450/750 V

Usage characteristics

Minimum installation temperature

-10 °C

Recommended minimum installation temperature

0 °C

Maximum operating temperature

70 °C

Minimum operating temperature

-40 °C

Length

500 m

Bending factor when laying

12 (xD)

Short-circuit max. conductor temperature

150 °C

U.V resistance

Yes

Water proof

Good

Resources

Selling & delivery Information

EQLR Easy will be delivered in lengths of 500 m. The drum is marked with manufacturer, date, type of cable, weight and length.
