FQAR-PIG 150/250 V
FQAR-PIG 150/250 V

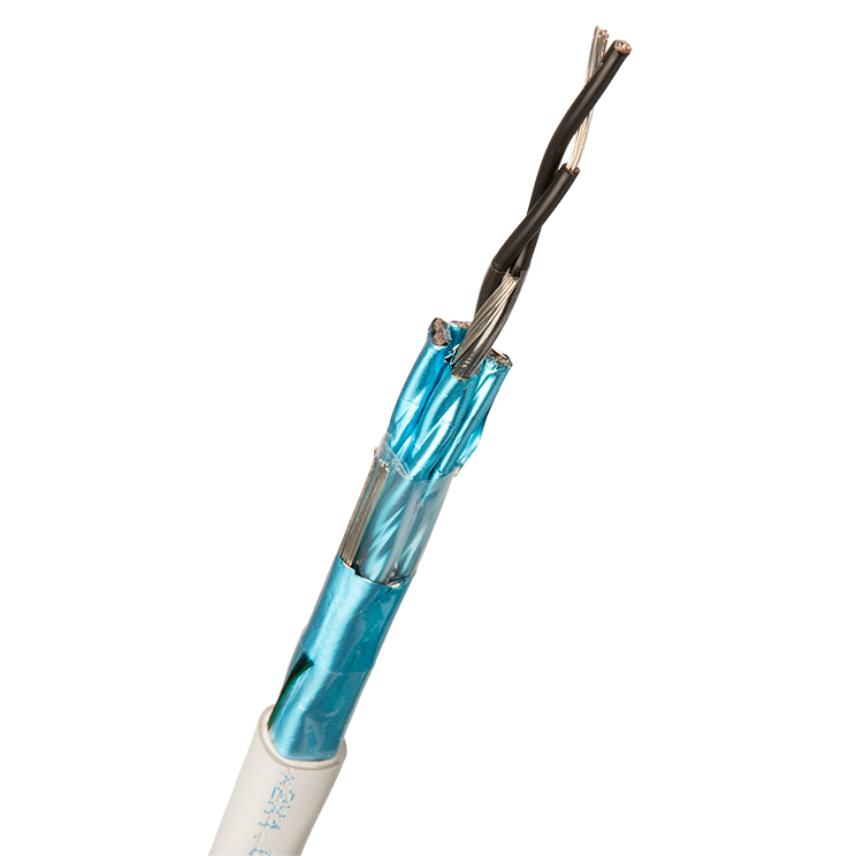

The cable is cabled in pairs and may be used for fixed installation indoors and outdoors for control and signalling functions in power electrical applications. The cables are also suitable in ducts in ground. It has an individual aluminium screen for each conductor pair and one common aluminium screen.
Read moreFQAR-PIG 150/250 V 2X2X1,0
Nexans ref. 16217098-898-05 - Country ref. 0128165
- Packaging: Drum (500m)
- Number of pairs: 2
- Nominal outer diameter: 12.0 mm
- Approximate weight: 16.5 kg/100m
FQAR-PIG 150/250 V 4X2X1,0
Nexans ref. 16217198-898-05 - Country ref. 0128175
- Packaging: Drum (500m)
- Number of pairs: 4
- Nominal outer diameter: 12.5 mm
- Approximate weight: 22.6 kg/100m
FQAR-PIG 150/250 V 8X2X1,0
Nexans ref. 16217298-898-05 - Country ref. 0128185
- Packaging: Drum (500m)
- Number of pairs: 8
- Nominal outer diameter: 18.7 mm
- Approximate weight: 42.0 kg/100m
FQAR-PIG 150/250 V 16X2X1,0
Nexans ref. 16217398-898-05 - Country ref. 0128195
- Packaging: Drum (500m)
- Number of pairs: 16
- Nominal outer diameter: 23.3 mm
- Approximate weight: 76.3 kg/100m
Description
Description
Standards
-
ProductHD 627.4 C2
-
NationalSS 424 03 21
DESCRIPTION
FQAR-PIG is a halogen free HFFR-insulated, aluminium screened, HFFR-sheathed control cable with circular, stranded, tinned copper conductors cabled in pairs. It has an individual aluminium screen for each conductor pair and one common aluminium screen. To simplify the stripping the cable is provided with a tear thread. The cable is designed according to HD 627 in applicable parts. The cores are identified by numbers according to HD 308. The sheath is marked type/manufacturer/year+month/metre marking. FQAR-PIG meets the requirements for flammability class Dcas2d2a2 according to CPR. The cable is certified by Intertek SEMKO.
Lifemark(TM) recycling marking
The external surface of the outer sheath is embossed with a text which specifies all components in the polymers and prepares the cable for future recycling.
Certification
Certified by Intertek SEMKO.
Quality and environmental management system
Certified according to ISO 9001, ISO/TS 16949 and ISO 14001.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Selling & delivery Information
FQAR will be delivered in lengths of 500 m. The drum is marked with manufacturer, type of cable and length. The ends of the cable are sealed.
