H05V2-K 1 (RK 90°C) 300/500V Orange

Description

Description

Standards

  • Product
    EN 50525-2-31; SS EN 50525-2-31

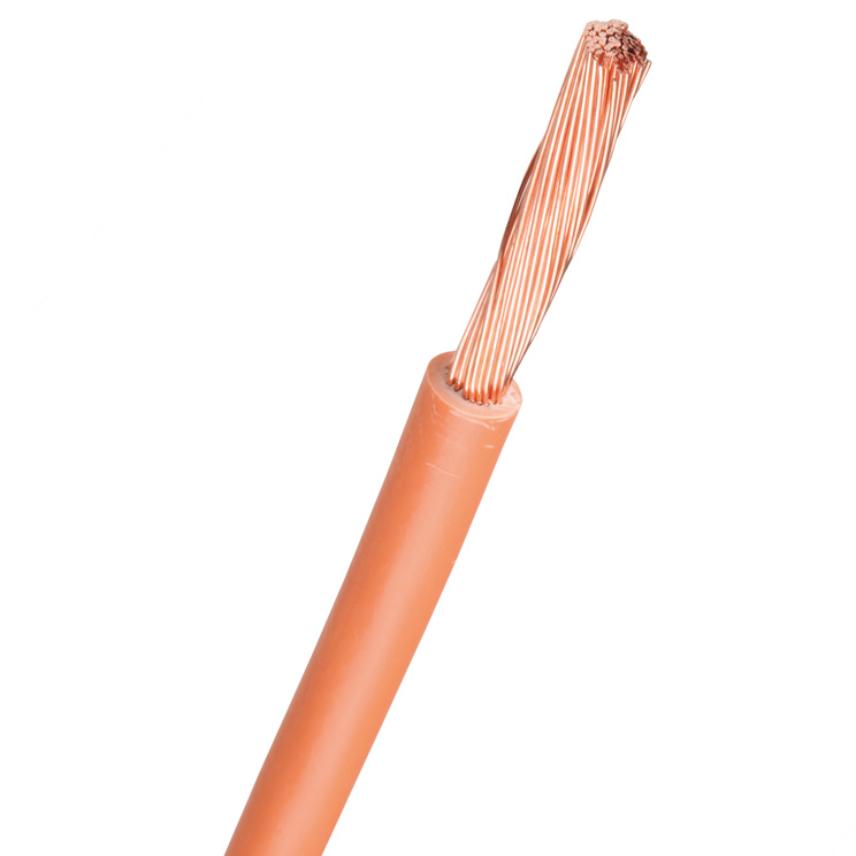

H05V2-K is a lead free, PVC insulated, connecting cable with one circular, multi stranded copper conductor. The cable is designed according to EN 50525-2-31. Maximum 90°C conductor temperature. The conductor has resistance according to EN 60228 class 5. The insulation is marked ”NEXANS GS H05V2-K 0,75 SEMKO HAR MAX 90 C”. H05V2-K meets the requirements for CPR class E.


Certification

Certifeid by INTERTEK SEMKO.



Quality system

Certified according to ISO 9001, IRIS, ISO/TS 16949 and ISO 14001.

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Colour
Orange
Conductor material
Bare copper
Insulation
PVC
Halogen free
No

Dimensional characteristics

Dimensional characteristics

Number of cores
1
Conductor cross-section
1 mm²
Number of core wires (nb x mm Ø)
32 x 0.19 mm Ø
Conductor diameter
1.3 mm
Average insulation thickness
0.6 mm
Nominal outer diameter
2.45 mm
Approximate weight
14 kg/km

Electrical characteristics

Electrical characteristics

Max. DC resistance of the conductor at 20°C
19.5 Ohm/km
Rated Voltage Uo/U (Um)
300/500 V

Usage characteristics

Usage characteristics

Bending factor when laying
4 (xD)
Length
100 m
Packaging
-
Flame retardant
EN 60332-1-2
Operating temperature, range
0 ... 90 °C

Resources

Resources

Selling & delivery Information

H05V2-K is delivered in specified lengths. The package is marked with manufacturer, type of cable, length and manufacturing date. On the label on boxes upon request also the customer item number and/or order number.

Declaration of Performance

  • Declaration of Performance n� : 1000079-SEGR
  • Certification Date : 11/6/18
  • AVCP (Assessment and Verification of Constancy of Performance) : System 3
  • Notified body : 0366
  • Declared performance : Eca
