H05Z1-K 1,0 (RQ) 300/500V

Description

Description

Standards

  • Product
    EN 50525-3-31; SS EN 50525-3-31

Description

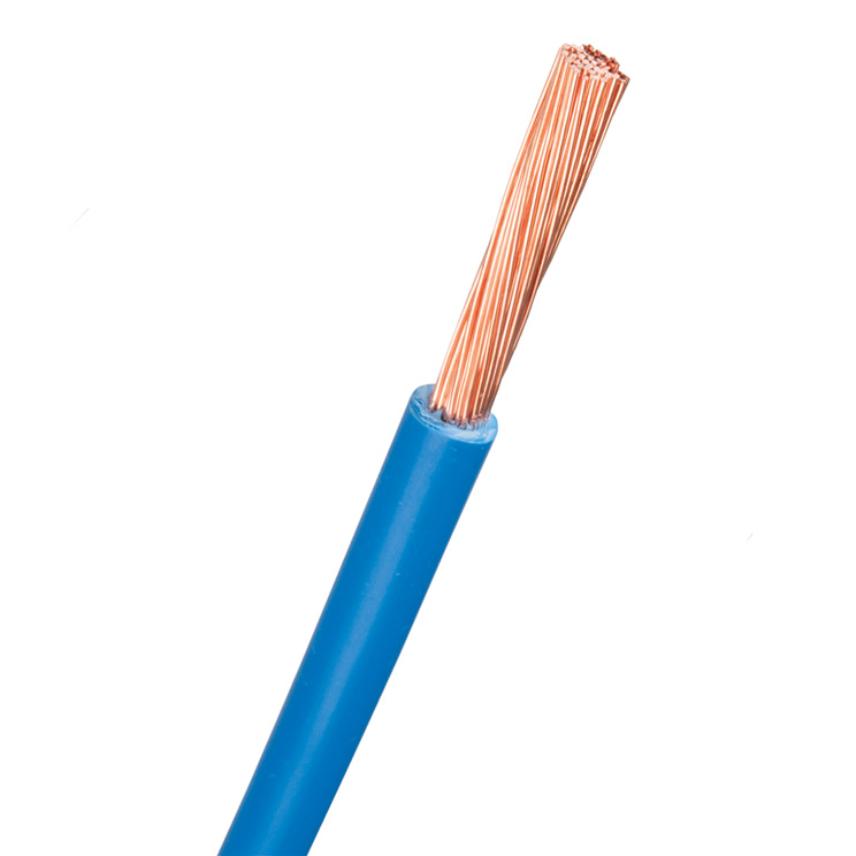

H05Z1-K is a halogen free, HFFR-insulated, connecting cable with one circular, multi stranded copper conductor. The cable is designed according to EN 50525-3-31. The conductor has resistance according to EN 60228 class 5. The insulation is marked "NEXANS GS H05Z1-K 0,75 MM2 TYPE 1 SEMKO". H05Z1-K meets the requirements for CPR Dcas2d2a2. The cable emits no corrosive gases and has low smoke production during fire.

Certification

Certified by INTERTEK SEMKO.

Quality and environmental management system

Certified according to ISO 9001, ISO/TS 16949 and ISO 14001.

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Colour
Blue
Conductor material
Bare copper
Insulation
HFFR
Halogen free
Yes
Conductor flexibility
Class 5
Conductor shape
Circular

Dimensional characteristics

Dimensional characteristics

Number of cores
1
Conductor cross-section
1 mm²
Number of core wires (nb x mm Ø)
32 x 0.19 mm Ø
Conductor diameter
1.3 mm
Average insulation thickness
0.57 mm
Nominal outer diameter
2.45 mm
Approximate weight
15 kg/km

Electrical characteristics

Electrical characteristics

Max. DC resistance of the conductor at 20°C
19.5 Ohm/km
Rated Voltage Uo/U (Um)
300/500 V

Usage characteristics

Usage characteristics

Length
200 m
Packaging
Reel
Operating temperature, range
0 ... 70 °C
Bending factor when installed
4 (xD)

Resources

Resources

Selling & delivery Information

S05Z1-K RQ will be delivered according to arrangement. The drum is marked with manufacturer, type of cable and length.

Declaration of Performance

  • Declaration of Performance n� : 1000210-SEGR
  • Certification Date : 3/20/17
  • AVCP (Assessment and Verification of Constancy of Performance) : System 3
  • Notified body : 402
  • Declared performance : Dca-s2,d2,a2
