H07V-K 35 (RK) 450/750V
H07V-K 35 (RK) 450/750V
The cable may first be used for inside couplings in switch cabinet boxes and similar applications.
Read more- Nexans ref. : 11363198-004-05
- Country ref. : 0389465
- EAN : 7330000115583
Description
Description
Standards
-
ProductEN 50525-2-31; SS EN 50525-2-31

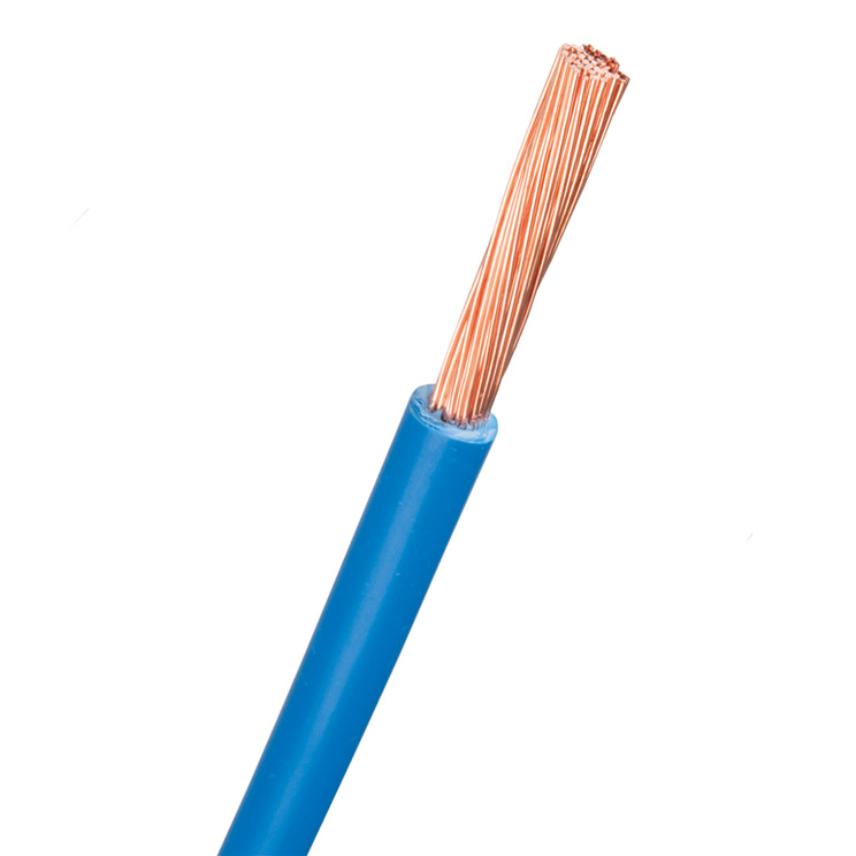

H07V-K is a lead free, PVC insulated, connecting cable with one circular, multi stranded copper conductor. The cable is designed according to EN 50525-2-31. The conductor has resistance according to IEC 60228 class 5. The insulation is marked "NEXANS GS H07V-K AREA mm2 SEMKO HAR YEAR/MONTH" for cables up to 240 mm2. S07V-K 300 mm2 and 400 mm2 is marked "Nexans GS AREA mm2". H07V-K meets the requirements for CPR class Eca. This product is also part of our Windlink® offer dedicated to wind turbines.
Certification
Certifeid by INTERTEK SEMKO.
Quality system
Certified according to ISO 9001, IRIS, ISO/TS 16949 and ISO 14001.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Documentation
Selling & delivery Information
H07V-K is delivered in specified lengths. The package is marked with manufacturer, type of cable, length and manufacturing date. On the label on boxes upon request also the customer item number and/or order number.
Declaration of Performance
- Declaration of Performance n� : 1000127-SEGR
- Certification Date : 3/23/17
- AVCP (Assessment and Verification of Constancy of Performance) : System 3
- Notified body : 366
- Declared performance : Eca
