H07Z1-K 2,5 FT (RQ FT) 450/750 V
H07Z1-K 2,5 FT (RQ FT) 450/750 V
The cable may first be used for inside couplings in switch cabinet boxes and similar applications.
Read more- Nexans ref. : 11198540-232-02
- Country ref. : 0345682
- EAN : 7330000086340
Description
Description
Standards
-
ProductEN 50525-3-31; SS EN 50525-3-31
-
TestEN 50268; IEC 60754
Description

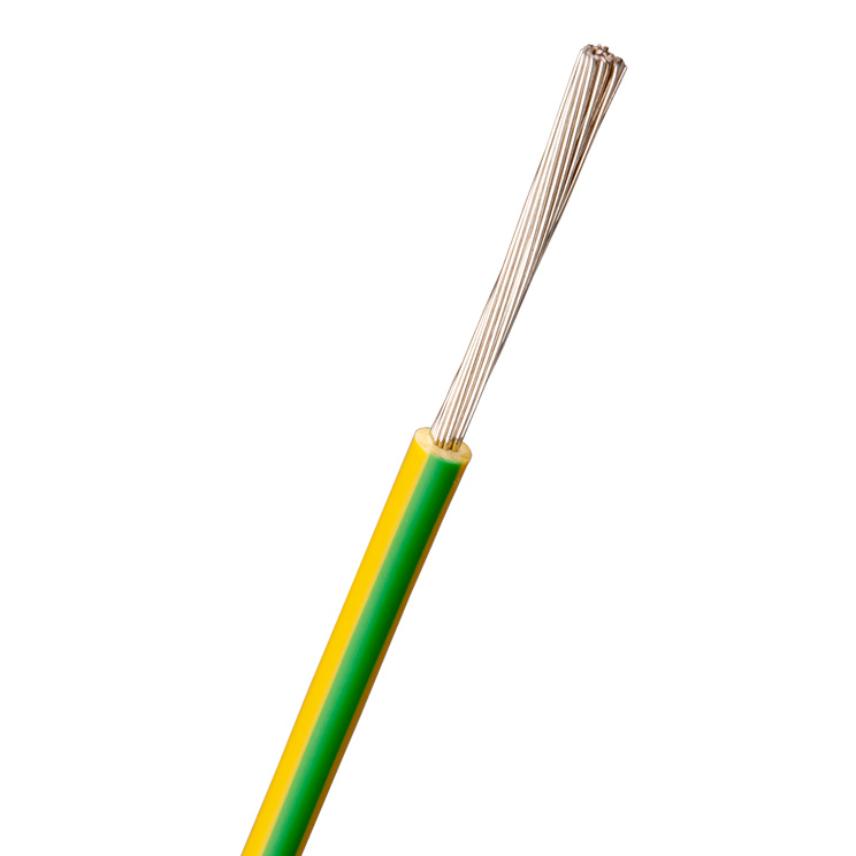

H07Z1-K is a halogen free, HFFR insulated, connecting cable with one circular, multi stranded tinned copper conductor. The cable is designed according to EN 50525-3-31 in applicable parts. The conductor has resistance according to IEC 60228 class 5. The insulation is marked "NEXANS GS Z1 SEMKO AREA mm2". H07Z1-K meets the requirements for CPR Dcas2d2a2. The cable emits no corrosive gases and has low smoke production during fire. This product is also part of our Windlink® offer dedicated to wind turbines.
Certification
Certified by INTERTEK SEMKO.
Quality and environmental management system
Certified according to ISO 9001, ISO/TS 16949 and ISO 14001.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Selling & delivery Information
H07Z1-K is delivered in specified lengths. The package is marked with manufacturer, type of cable, length and manufacturing date.
Declaration of Performance
- Declaration of Performance n� : 1000265-SEGR
- Certification Date : 9/21/17
- AVCP (Assessment and Verification of Constancy of Performance) : System 3
- Notified body : 0422
- Declared performance : Dca-s2,d2,a2
