ALSECURE® PREMIUM EQAQXB
ALSECURE® PREMIUM EQAQXB
ALSECURE® PREMIUM

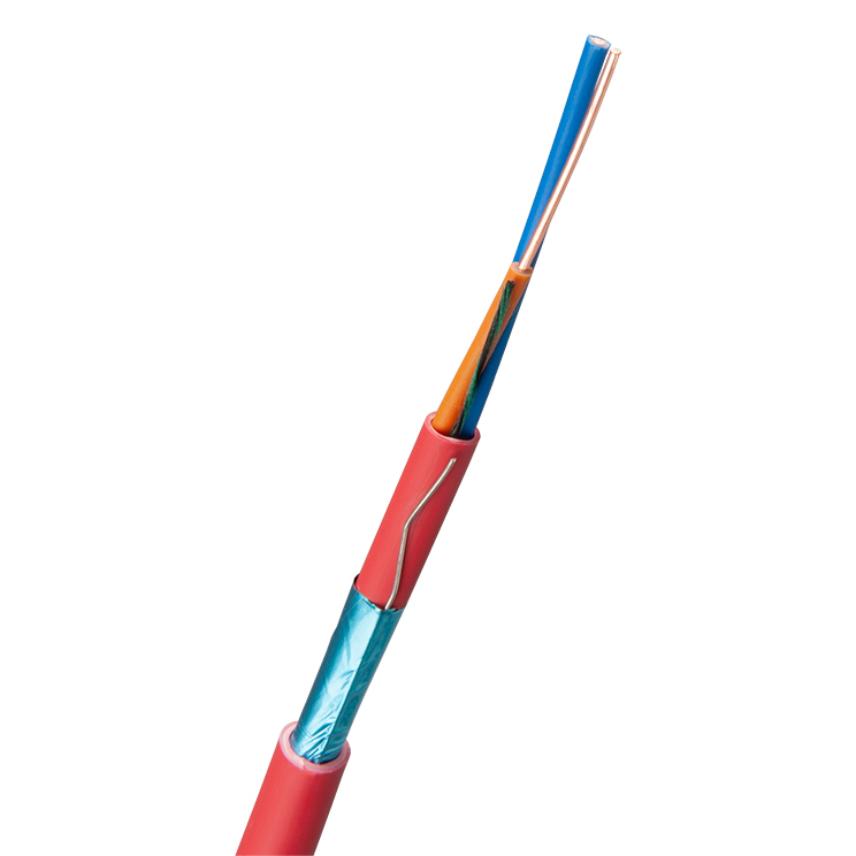

Fire resistant screened alarm cable with halogen free, UV-protected flame retardant sheath.
Read moreALSECURE® PREMIUM EQAQXB 1x2x1,0 (EN 50200)
Nexans ref. 17547171-803-05 - Country ref. 4800085
- Packaging: Reel (500m)
- Approximate weight: 70 kg/km
- Nominal outer diameter: 7.5 mm
- Laying operation bending radius: 60 mm
ALSECURE® PREMIUM EQAQXB 1x4x1,0 (EN 50200)
Nexans ref. 17547271-803-05 - Country ref. 4800095
- Packaging: Reel (500m)
- Approximate weight: 105 kg/km
- Nominal outer diameter: 8.8 mm
- Laying operation bending radius: 70 mm
Description
Description
Standards
-
TestIEC 60332-3 Cat.C; IEC 60754; IEC 61034
DESCRIPTION
Design
Halogen free, flame retardant, fire resistant, screened, pair-twisted signalling cable. PE insulated Cu wire, halogen free UV-protected sheath type HFFR-LS. ALSECURE® PREMIUM EQAQXB is used as a signalling cable in fire alarm installations where there is a demand for function also during and after a fire. intended for fixed installation indoors and protected against mechanical damage also outdoors.
Meets fire safety requirements according to IEC 60331-2/EN 50200 and fire spread requirements according to IEC 60332-3-24
Quality system
Design, manufacture and testing have been carried out according to the requirements in ISO 9001.
Environmental management system
The activities at our plant are certified to ISO 14001.
