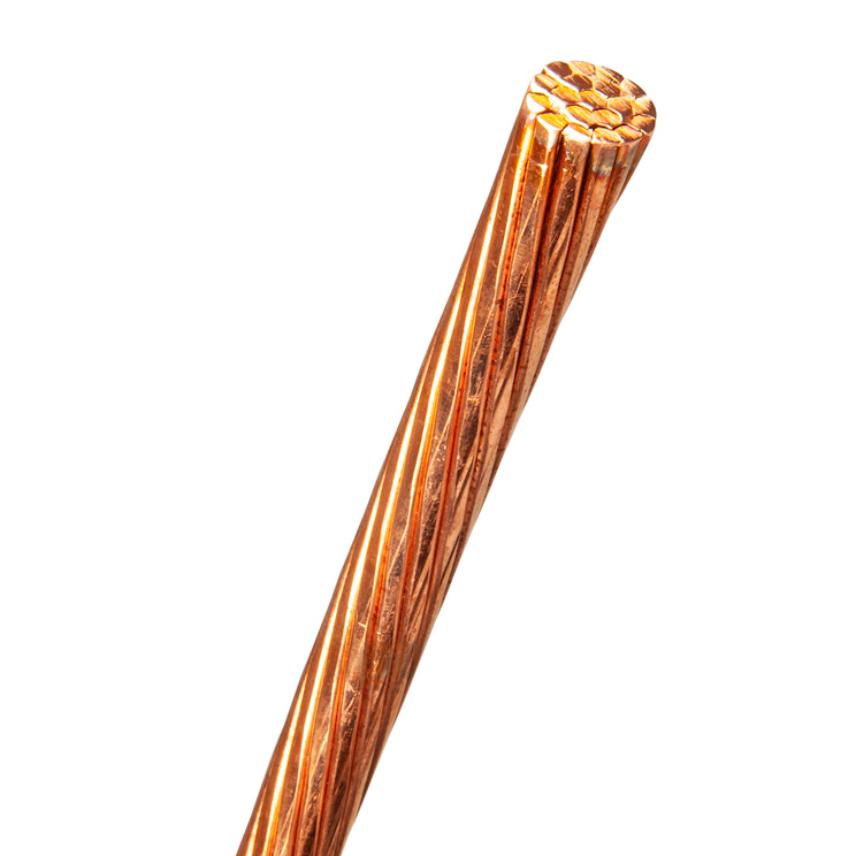

150 mm² Bare Cu-conductor
150 mm² Bare Cu-conductor
Cu-conductor for use in the network as earthconductor
Read more- Nexans ref. : 26004398-000-05
- Country ref. : 0622405
- EAN : 7330000045149
Description
Description
Standards
-
ProductIEC 60228
Description
Bare copper wire with resistance according to IEC 60228. In order to facilitate siting, the copper wire is annealed.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor flexibility
Class 2
Conductor material
Bare copper
Conductor shape
Circular compacted
Number of conductors
1
Dimensional characteristics
Dimensional characteristics
Approximate weight
1280 kg/km
Conductor cross-section
150 mm²
Nominal outer diameter
14.3 mm
Electrical characteristics
Electrical characteristics
Max. DC resistance of the conductor at 20°C
0.124 Ohm/km
Usage characteristics
Usage characteristics
Adaptor
Element length
- m
Length
500 m
Packaging
Drum
Short-circuit max. conductor temperature
370 °C
