DUOLEX (SE-N1XE-AS Gul) 4G50
DUOLEX (SE-N1XE-AS Gul) 4G50
XLPE-insulated, 4-core cable with double PE-sheath. The design makes the cable suitable for tough installation conditions. The cable may be used for fixed installation in air, ground and water.
Read more- Nexans ref. : 15022798-281-05
- Country ref. : 0012605
- EAN : 7330000015425
Description
Description
Standards
-
ProductHD 603 S1/5O
-
NationalSS 424 14 18
Description

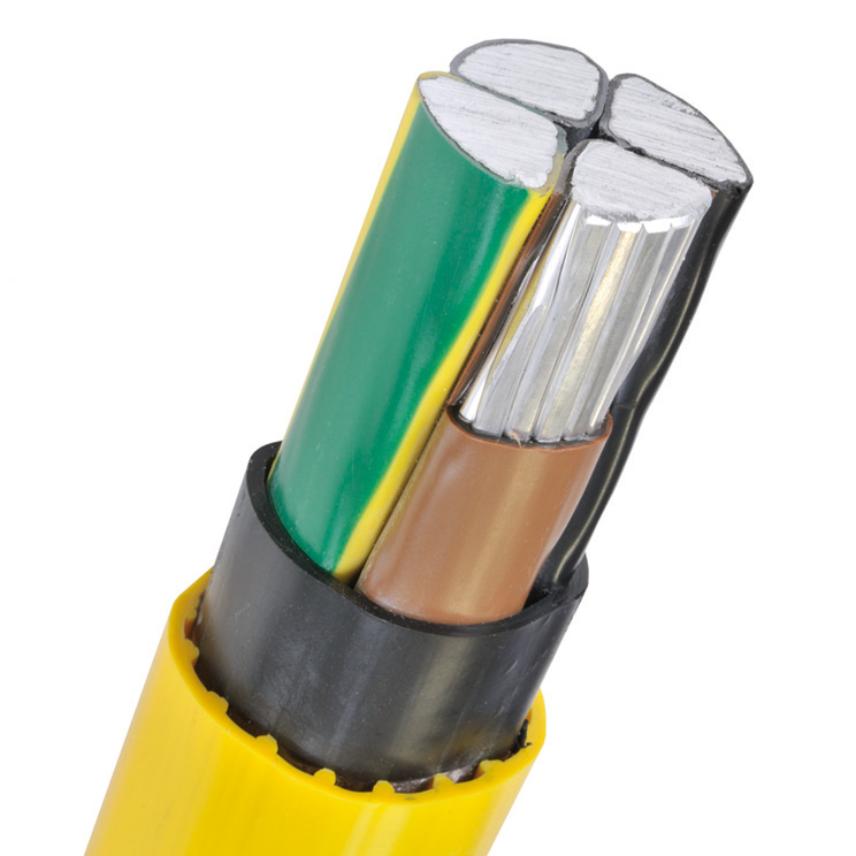

DUOLEX is a halogen free, XLPE-insulated 4-core cable with double PE-sheath and sector shaped, stranded, annealed aluminium conductors. The cable is designed according to HD 603. The conductors have resistance and number of wires according to IEC 60228 class 2. The cores are identified by colours according to HD 308. The cable is provided with ripcord. The sheath is marked type/manufacturer/year+month/metre marking. DUOLEX is not flame retardant.
The yellow cable provides extra visibility when the cable is installed on/above ground in the event of temporary power outages, for example.
Lifemark™ recycling marking
The external surface of the inner sheath is embossed with a text which specifies all components in the polymers and prepares the cable for future recycling.
Standards
DUOLEX is manufactured and tested according to SS 424 14 18.The cable can be loaded in accordance with valid powercurrent regulations and SS 424 14 24.
Quality and environmental management system
Certified according to ISO 9001, ISO/TS 16949 and ISO 14001.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Selling & delivery Information
DUOLEX will be delivered in lengths of 500 m. The drum is marked with manufacturer, type of cable and length. The ends of the cable are sealed.
