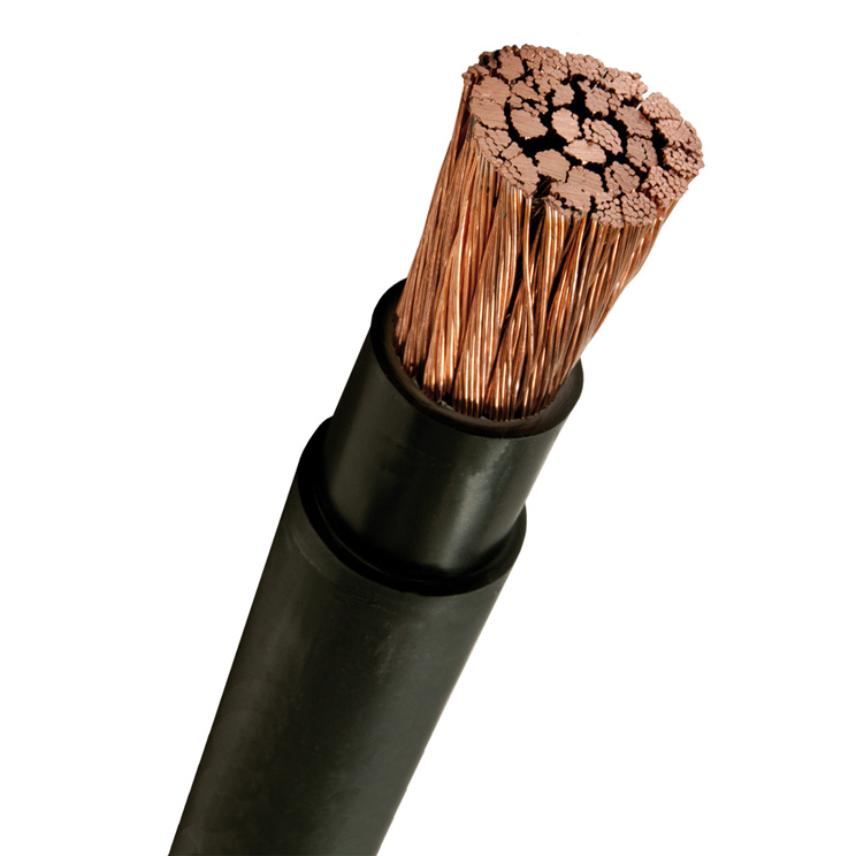

RQQ 1 kV
RQQ 1 kV
Halogenfree low voltage cable. For permanent installation indoor and outdoor in or above ground and in water.
Read moreRQQ 1x6 1kV
Nexans ref. 11120298-201-05 - Country ref. 0378015
- Packaging: Drum (m)
- Conductor cross-section: 6 mm²
- Conductor diameter: 3.2 mm
- Nominal outer diameter: 7.55 mm
- Approximate weight: 10.5 kg/100m
RQQ 1x10 1kV
Nexans ref. 11120398-201-05 - Country ref. 0378025
- Packaging: Drum (m)
- Conductor cross-section: 10 mm²
- Conductor diameter: 4.2 mm
- Nominal outer diameter: 8.95 mm
- Approximate weight: 15.8 kg/100m
RQQ 1x16 1kV
Nexans ref. 11120498-201-05 - Country ref. 0378035
- Packaging: Drum (m)
- Conductor cross-section: 16 mm²
- Conductor diameter: 5.3 mm
- Nominal outer diameter: 10.1 mm
- Approximate weight: 22.3 kg/100m
RQQ 1x25 1kV
Nexans ref. 11120598-201-05 - Country ref. 0378045
- Packaging: Drum (m)
- Conductor cross-section: 25 mm²
- Conductor diameter: 6.9 mm
- Nominal outer diameter: 12.1 mm
- Approximate weight: 31.7 kg/100m
RQQ 1x35 1kV
Nexans ref. 11120698-201-05 - Country ref. 0378055
- Packaging: Drum (m)
- Conductor cross-section: 35 mm²
- Conductor diameter: 7.9 mm
- Nominal outer diameter: 13.1 mm
- Approximate weight: 41.3 kg/100m
RQQ 1x50 1kV
Nexans ref. 11120798-201-05 - Country ref. 0378065
- Packaging: Drum (m)
- Conductor cross-section: 50 mm²
- Conductor diameter: 9.4 mm
- Nominal outer diameter: 15.0 mm
- Approximate weight: 56.5 kg/100m
RQQ 1x70 1kV
Nexans ref. 11120898-201-05 - Country ref. 0378075
- Packaging: Drum (m)
- Conductor cross-section: 70 mm²
- Conductor diameter: 11.1 mm
- Nominal outer diameter: 16.9 mm
- Approximate weight: 76.7 kg/100m
Description
Description
Standards
-
TestEN 50268; IEC 60754
-
NationalSS 424 14 18
Description
RQQ (S1Z1Z1-F) is a halogenfree, HFFR-insulted and -sheathed cable with circular and multi stranded copper conductor. The cable is designed according to SS 424 14 18. The conductors have resistance according to IEC 60228 class 5. The sheath is marked "NEXANS GS AREA mm2 1kV Dca2d2a2 year+month". RQQ meets the requirements for flame class Dcas2d2a2 according to CPR.
Lifemark(TM) recycling marking
The external surface of the outer sheath is embossed with a text which specifies all components in the polymers and prepares the cable for future recykling.
Quality system
Designed, manufactured and tested in accordance with ISO 9001.
Environmental management system
The activities at our plant in Grimsås are certified to ISO 14001.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Selling & delivery Information
RQQ will be delivered in lengths of 500 m. The drum is marked with manufacturer, type of cable and length. The ends of the cable are sealed.
