AXCLTV TT 24 kV
AXCLTV TT 24 kV
AXCLTV TT is longitudinally and radial watertight, steel armoured cable for fixed installation in water, ground and air.
Read moreAXCLTV TT 24 kV 3x50/16
Nexans ref. 21089298-201-05
- Packaging: Drum (500m)
- Conductor cross-section: 50 mm²
- Conductor diameter: 8.0 mm
- Nominal outer diameter: 63.3 mm
- Approximate weight: 485.2 kg/100m
AXCLTV TT 24 kV 3x95/25
Nexans ref. 21089498-201-05
- Packaging: Drum (500m)
- Conductor cross-section: 95 mm²
- Conductor diameter: 11.3 mm
- Nominal outer diameter: 71.0 mm
- Approximate weight: 611.5 kg/100m
AXCLTV TT 24kV 3x150/25
Nexans ref. 21088598-201-05
- Packaging: Drum (500m)
- Conductor cross-section: 150 mm²
- Conductor diameter: 14.1 mm
- Nominal outer diameter: 79.5 mm
- Approximate weight: 819.4 kg/100m
AXCLTV TT 24 kV 3x240/35
Nexans ref. 21088698-201-05
- Packaging: Drum (500m)
- Conductor cross-section: 240 mm²
- Conductor diameter: 18.2 mm
- Nominal outer diameter: 89.5 mm
- Approximate weight: 1015.8 kg/100m
Description
Description
Standards
-
InternationalHD 620 S2 2010 10M; IEC 60502-2
-
NationalSS 424 14 16

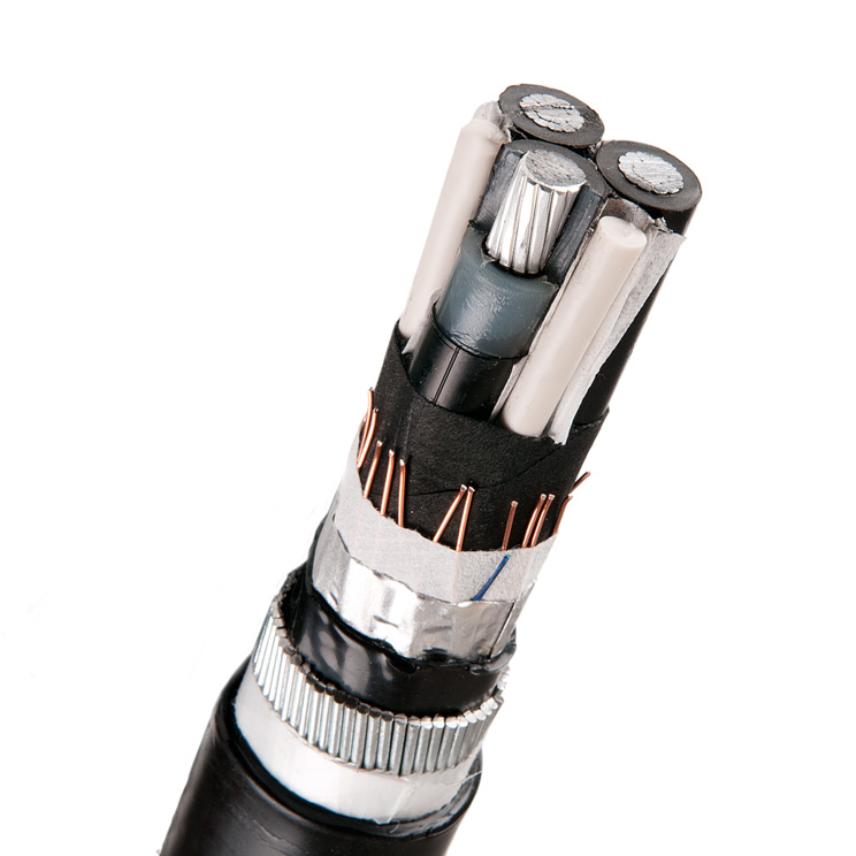

AXCLTV TT is a longitudinally and radial watertight, halogen free, XLPE-insulated, Cu wire screened, steel wire armoured and PE-sheathed three core medium voltage cable with circular aluminium conductors. The cable has a Cu wire screen together with aluminium foil. The screen has continouos contact with the foil. The cable is designed according to HD 620 in appl. parts. The conductor meets the requirements for SS EN 60228 class 2. The sheath is marked type/manufacturer/year+month/metre marking. AXCLTV TT is not flame retardant.
Lifemark(TM) recycling marking
The external surface of the outer sheath is embossed with a text which specifies all components in the polymers and prepares the cable for future recycling.
Standards
AXCLTV TT is in applicable parts manufactured and tested according to SS 424 14 16 (HD 620 S2 2010 10M). The cable can also be loaded according to the same standard.
Quality and environmental management system
Certified according to ISO 9001, IRIS, ISO/TS 16949 and ISO 14001.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Selling & delivery Information
AXCLTV TT is delivered on drums. The drum is marked with manufacturer, type of cable and length. The ends of the cable are sealed.
