Axclight TT 24 kV

Description

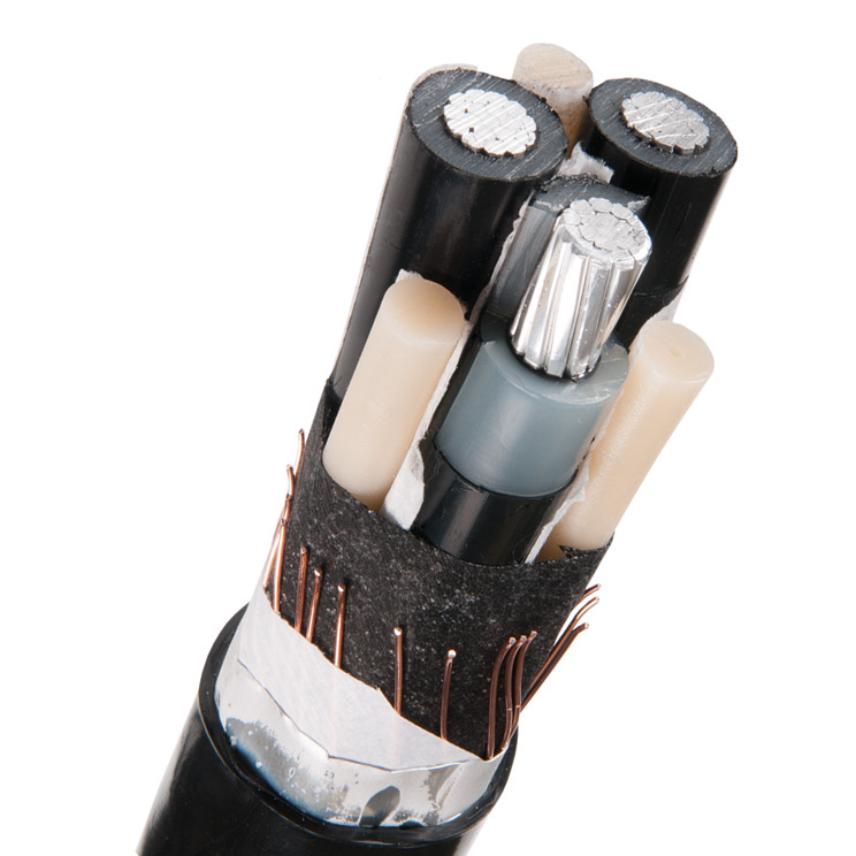

Axclight TT is a longitudinally and radial watertight, halogen free, XLPE-insulated, CU screened. The concentric screen and the aluminium foil are in contact along the entire lenght of the cable. The cable is a three core medium voltage cable with circular aluminium conductors and HDPE sheath. The cable is designed according to HD 620.S2 2010 10M  The conductor meets the requirements for SS IEC 60228 class 2 and is waterblocked by swellable powder. Diffusion barrier consisting of a longitudinally plastic coated aluminium foil. The sheath is marked type/manufacturer/year+month/metre marking. Axclight TT is not flame retardant. The sheath opens with cable rip cord. Joint and cable terminations are standard materials from accesory manufacturers. Maximum pulling force using cable stocking: F (N)= 5 x D² (D is outer cable diameter in mm).

Lifemark™ recycling marking

The external surface of the outer sheath is embossed with a text which specifies all components in the polymers and prepares the cable for future recycling.

Standards

Axclight TT is manufactured and tested according to SS 424 14 16 (HD 620.S2 2010 10M). The cable can also be loaded according to the same standard.

Quality and environmental management system

Certified according to ISO 9001, ISO/TS 16949 and ISO 14001.
