N-LINE 2xCat6 U/UTP 20-50 krt.
N-LINE 2xCat6 U/UTP 20-50 krt.
Halogen-free corrugated installation PP conduit. Un-shielded Cat 6 data cable with 4 pairs in star alignement with center cross divider. Sheath and insulation are made of flame retarded halogen-free material.
Read more- Nexans ref. : 27125284-904-01
- Country ref. : 1415168
- EAN : 7045210134612
Description
Description
Standards
-
InternationalEN 50173; IEC 61156-5; ISO/IEC 11801
-
NationalANSI/TIA-568-C.2

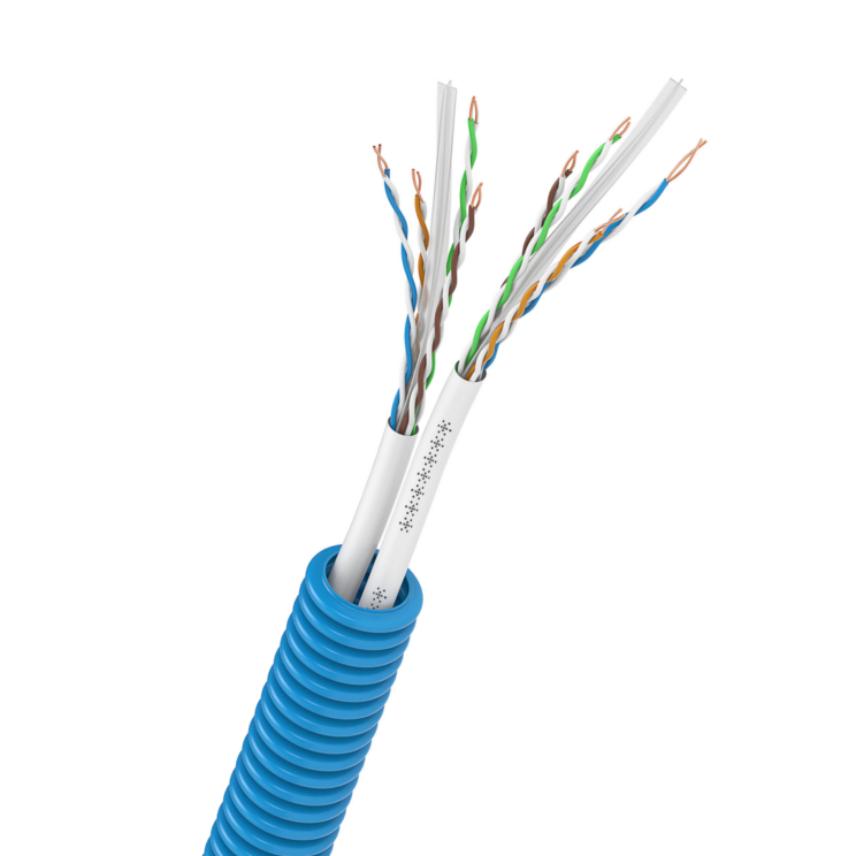

Pre-wired Category 6 U/UTP cable in corrugated conduit. It is produced with either one white CAT. 6 U/UTP in 16 mm conduit or two white (one cable will be marked) CAT. 6 U/UTP in 20 mm conduit. Thanks to the center cross in the cable's core, a performance level that exceeds current standards is guaranteed. Sheath and insulation are made of halogen-free material. The cable meets fire requirements according to CPR class Dcas2d2a2. In the event of a fire, the cable emits no corrosive gases and has little smoke.
The halogen-free PP (polypropylene) corrugated conduits are intended for recessed installation, laying on cable ladders and casting in concrete. The product will be delivered in a flexible and user-friendly packaging, Cable Guy, that simplifies the installation work significantly, alternatively on the cable drum that fits in Nexans’ drum trolley, Cable Walker.
CATEGORY 6 U/UTP OPTIONS:
Single run Cat 6 U/UTP LSZH in 16mm Blue conduit
Dual run (2x) Cat 6 U/UTP LSZH in 20mm Blue conduit
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Mechanical characteristics
Mechanical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Declaration of Performance
- Declaration of Performance n� : 1001119-NOLA
- Certification Date : 11/25/22
- AVCP (Assessment and Verification of Constancy of Performance) : System 3
- Notified body : 1783
- Declared performance : Dca-s2,d2,a2
