H03V2V2H2-F 2X0,75 (SKX-U 90GR) 300/300V
H03V2V2H2-F 2X0,75 (SKX-U 90GR) 300/300V

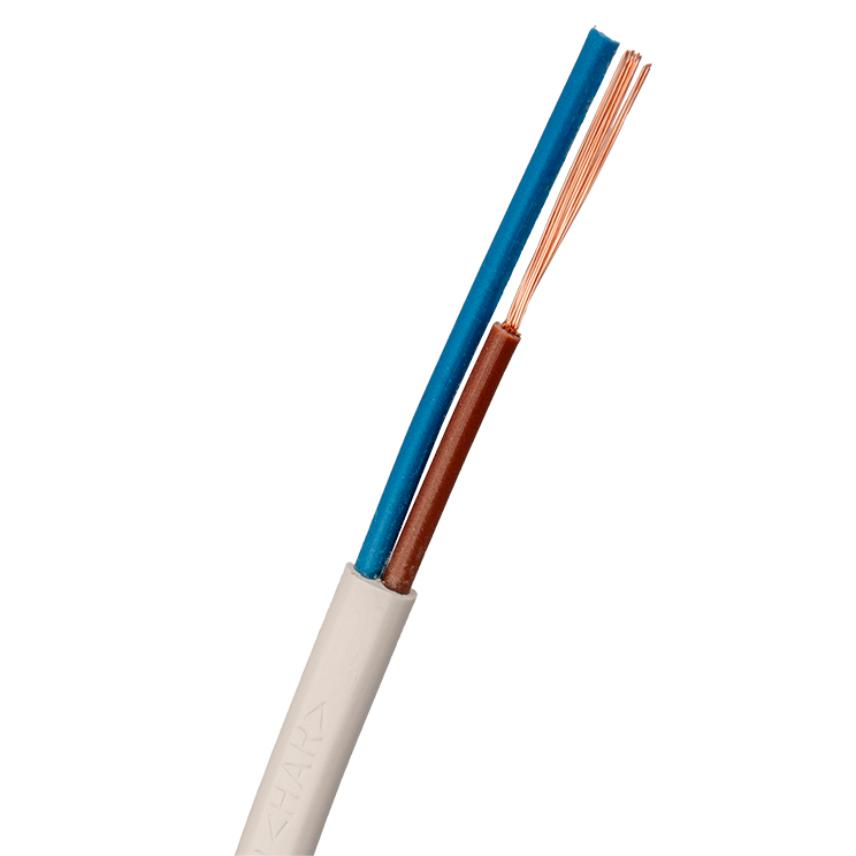

Oval, light, flexible cable with lead free PVC insulation and sheath for max 90 °C operating temperature.
Read more- Nexans ref. : 22011016-002-42
- EAN : 7330000152939
Description
Description
Standards
-
InternationalEN 50525-2-11
-
NationalSS EN 50525-2-11
Design
- Conductor Circular, multiple stranded copper conductor in accordance with EN 60228, class 5.
- Insulation Coloured lead free PVC in accordance with EN 50525-2-11, EN 50363-3 TI3. The conductors are laid parallel.
- Sheath Coloured lead free PVC in accordance with EN 50525-2-11, EN 50363-4-1, TM3. Example of sheath marking "NEXANS GS H03V2V2H2-F 2X0,75 SEMKO HAR".
Certification
Approved by INTERTEK SEMKO.
Flammability class
EN 60332-1-2.
Quality system
EN ISO 9001.
Environmental system
The activities at our plant in Grimsås are certified to EN ISO 14001.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Sheath colour
White
Conductor material
Bare copper
Insulation
PVC
Outer sheath
PVC
Halogen free
No
Dimensional characteristics
Dimensional characteristics
Number of cores
2
Conductor cross-section
0.75 mm²
Number of core wires (nb x mm Ø)
24 x 0.20 mm Ø
Conductor diameter
1.1 mm
Average insulation thickness
0.5 mm
Diameter over insulation
2.1 mm
Average sheath thickness
0.6 mm
Height
5.4 mm
Width
3.3 mm
Approximate weight
33 kg/km
Electrical characteristics
Electrical characteristics
Max. DC resistance of the conductor at 20°C
26 Ohm/km
Rated Voltage Uo/U (Um)
300 / 300 V
Usage characteristics
Usage characteristics
Length
8000 m
Packaging
Plastic drum
Operating temperature, range
0 ... 90 °C
Resources
Resources
Selling & delivery Information
H03V2V2H2-F is delivered in specified lengths. The package is marked with manufacturer, type of cable, length and manufacturing date. On the label on drums and boxes upon request also the customer item number and/or order number.
