H05VV-F 2X1,5 (RKK-U) 300/500V

Description

Description

Standards

  • Product
    EN 50525-2-11; SS EN 50525-2-11

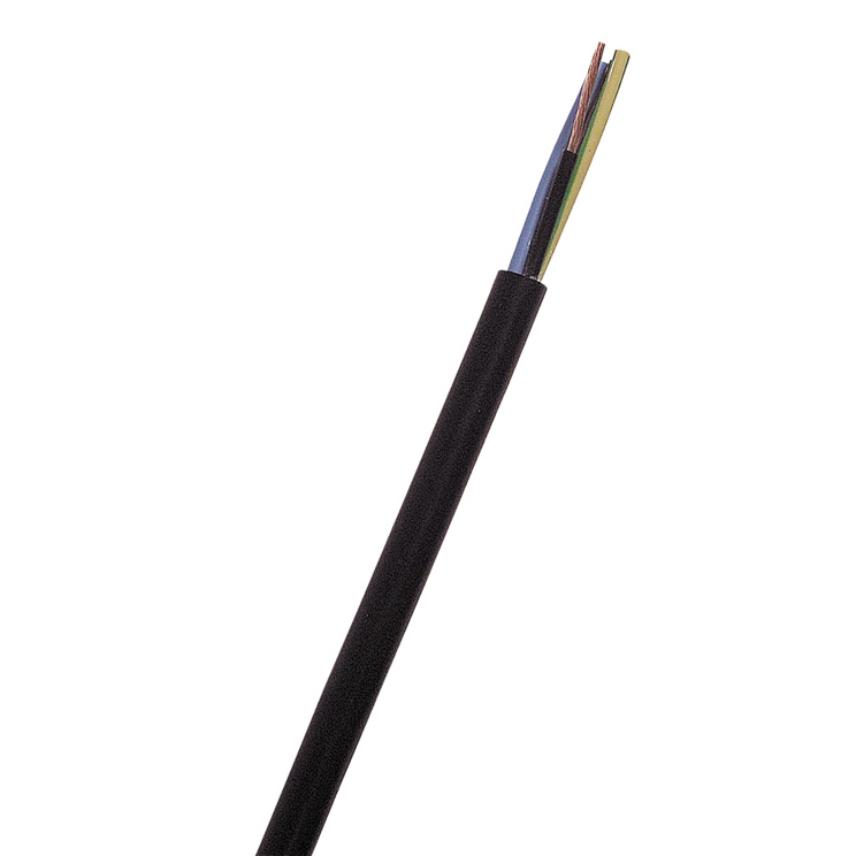

H05VV-F is a round, lead free, PVC insulated, PVC sheathed connecting cable with circular and multi stranded copper conductors. The cable is designed according to EN 50525-2-11. The conductors have resistance according to EN 60228 class 5. The cores are cabled together and identified by colours according to HD 308. Example of sheath marking "NEXANS GS H05VV-F 3G0.75 SEMKO HAR ".


Certification

Certified by INTERTEK SEMKO.

Flammability class

EN 60332-1-2 (F2).

Quality- and environmental systems

The activities at our plant in Grimsås are certified according to ISO 9001, ISO 14001, IATF 16949 and IRIS.

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Sheath colour
White
Conductor material
Bare copper
Insulation
PVC
Outer sheath
PVC
Halogen free
No

Dimensional characteristics

Dimensional characteristics

Number of cores
2
Conductor cross-section
1.5 mm²
Number of core wires (nb x mm Ø)
32 x 0.23 mm Ø
Conductor diameter
1.55 mm
Average insulation thickness
0.7 mm
Diameter over insulation
2.95 mm
Average sheath thickness
0.8 mm
Nominal outer diameter
7.5 mm
Approximate weight
86 kg/km

Electrical characteristics

Electrical characteristics

Max. DC resistance of the conductor at 20°C
13.3 Ohm/km
Rated Voltage Uo/U (Um)
300/500 V

Usage characteristics

Usage characteristics

Length
100 m
Packaging
Coil
Flame retardant
EN 60332-1-2
Operating temperature, range
0 ... 70 °C

Resources

Resources

Selling & delivery Information

H05VV-F is delivered in specified lengths. The package is marked with manufacturer, type of cable, length and manufacturing date. On the label on drums and boxes upon request also the customer item number and/or order number.
