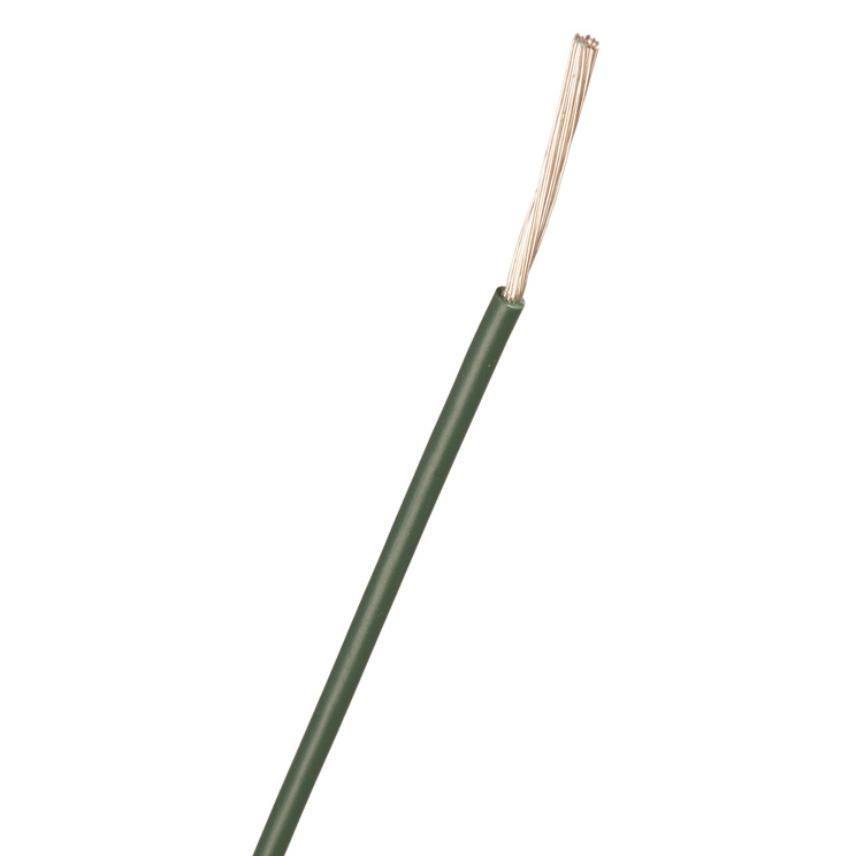

Robotic lawnmower wire 1 mm²
Robotic lawnmower wire 1 mm²
The cable may first be used for robotic lawn moving installation to guide the lawn mover around the garden.
Read more- Nexans ref. : 13146056-244-25
- Country ref. : 0352563
- EAN : 7330000012981
Description
Description
Standards
-
InternationalEN 50525-3-31
-
NationalSS EN 50525-3-31
Slingkabel (RQ 1 FT) is a halogen free, HFFR-insulated, connecting cable with one circular, multi stranded tinned copper conductor. The cable is designed according to EN 50525-3-31. The conductor has resistance according to IEC 60228 class 5.
Certification
Certified by INTERTEK SEMKO.
Quality and environmental management system
Certified according to ISO 9001, IRIS, ISO/TS 16949 and ISO 14001.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Colour
Green
Conductor material
Tinned copper
Insulation
HFFR
Halogen free
Yes
Dimensional characteristics
Dimensional characteristics
Number of cores
1
Conductor cross-section
1 mm²
Number of core wires (nb x mm Ø)
32 x 0.21 mm Ø
Conductor diameter
1.3 mm
Average insulation thickness
0.6 mm
Nominal outer diameter
2.45 mm
Approximate weight
13.7 kg/km
Electrical characteristics
Electrical characteristics
Max. DC resistance of the conductor at 20°C
20 Ohm/km
Rated Voltage Uo/U (Um)
300/500 V
Usage characteristics
Usage characteristics
Length
300 m
Packaging
Reel
Operating temperature, range
0 ... 70 °C
Bending factor when installed
4 (xD)
Resources
Resources
Selling & delivery Information
Perimeter wire (H05Z1-K RQ 1 FT) is delivered in specfied lengths. The package is marked with manufacturer, type of cable, length and manufacturing date.
