FLAQQBR 4x1+2x2x0,22
FLAQQBR 4x1+2x2x0,22

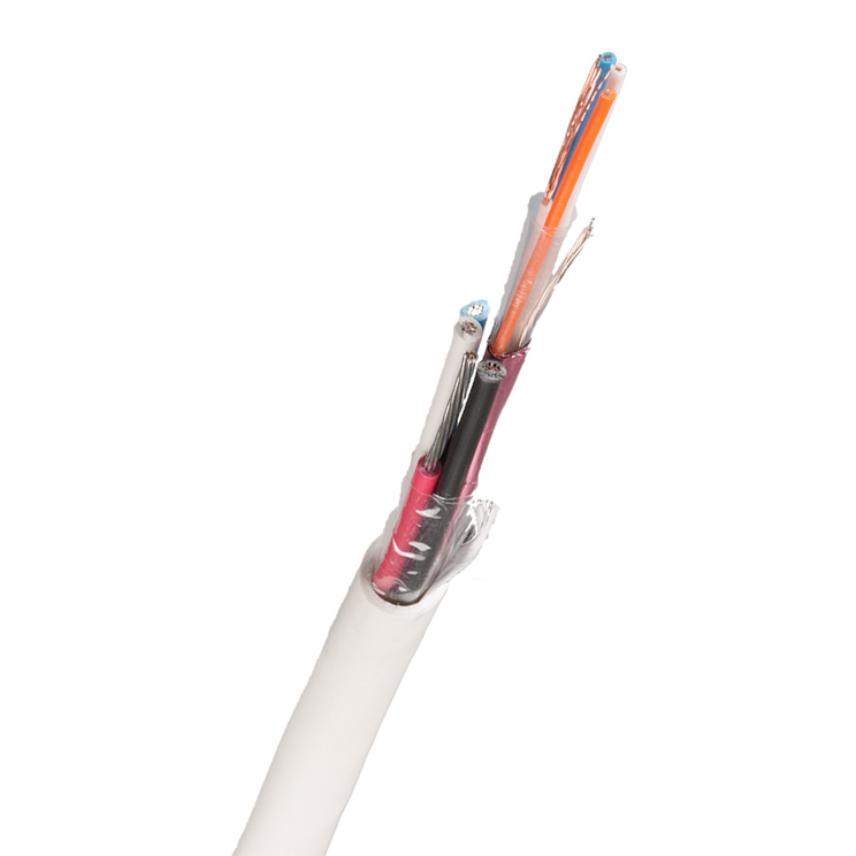

Combined power supply and signalling cable.
Read more- Nexans ref. : 17037641-802-02
- Country ref. : 4895502
- EAN : 7330000125674
Description
Description
Standards
-
TestIEC 60332-1
DESCRIPTION
Design
Combined power supply and signalling cable. The power supply conductors have a annealed copper wire strand, 1,0 mm2 or 1,5 mm2 and insulation of halogen free, flame retardant plastic compound. The pairs for signalling have a plain annealed copper wire strand, 0,22 mm2 or 0,5 mm2 alternatively solid copper 0,6 mm diameter. Insulation of solid polyethylene, are twisted to pairs and have a common screen of aluminium/polyester foil. The cable has a sheath of halogen free, flame retardant plastic compound and is intended for fixed installation indoors. The cable is intended for use in passage control systems. Fire performance according to CPR class Dcas2d2a2. The cable emits no corrosive gases and has low smoke production during fire.
Quality and environmental management system
Certified according to ISO 9001, ISO/TS 16949 and ISO 14001.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Declaration of Performance
- Declaration of Performance n� : 1000047-SEGR
- Certification Date : 10/5/17
- AVCP (Assessment and Verification of Constancy of Performance) : System 3
- Notified body : 0366
- Declared performance : Dca-s2,d2,a2
