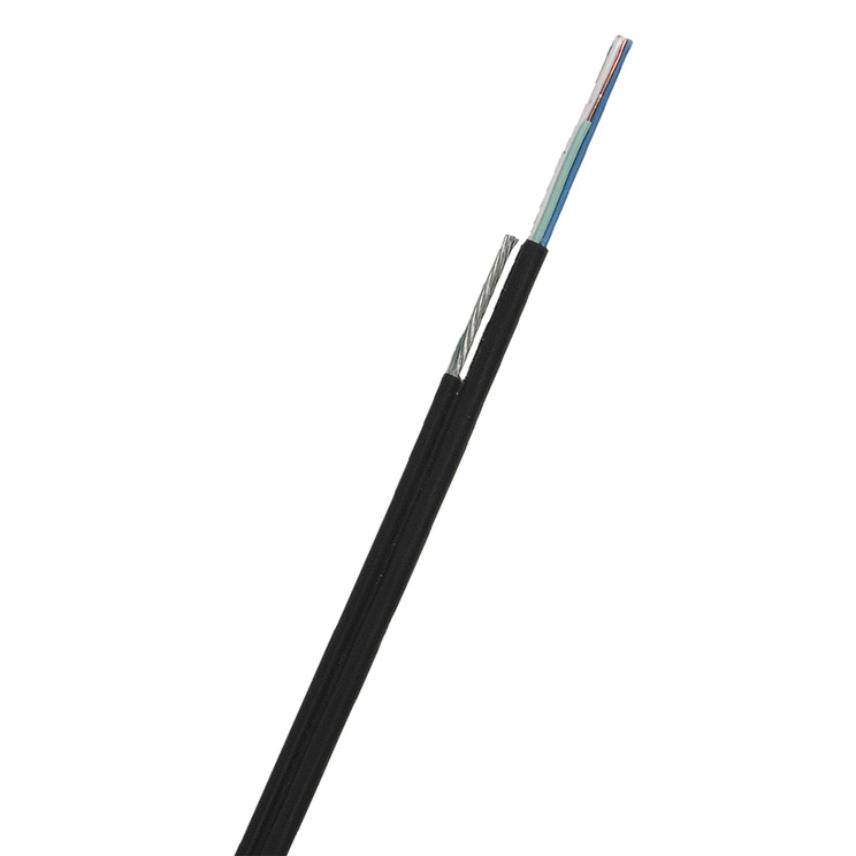

ELLC (Aerial Drop Cable)
ELLC (Aerial Drop Cable)
PE insulated, PE sheathed self-supporting subscriber access cable.
Read more
Description
Description
Standards
-
NationalSS 424 16 61
DESCRIPTION
Design
PE-insulated quad twisted aerial drop cable with black PE-sheath and integrated suspension strand in figure-8-section. The cable is intended for outdoor installation on poles
Quality and environmental management system
Certified according to ISO 9001, ISO/TS 16949 and ISO 14001.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor flexibility
Singlewire
Conductor material
Annealed copper
Insulation
PE
Material used for longitudinal water tightness
None
Screen
No
Construction type
Suspension strand
Outer sheath
PE
Colour
Black
Dimensional characteristics
Dimensional characteristics
Conductor diameter
0.6 mm
Nominal outer diameter
5.1 mm
Diameter over suspension strand
3.6 mm
Height
10 mm
Average sheath thickness
0.6 mm
Approximate weight
5.5 kg/100m
Electrical characteristics
Electrical characteristics
Max. DC resistance of the conductor at 20°C
64.7 Ohm/km
Resistance unbalance DC max % of loop resistance
2 %
Max. capacity pair / core to core
40 nF/km
Capacitance unbalance max.
300 pF/500m
Ohmical resistance of the insulation
5000 MOhm.km
Maximum operating voltage
100 V
Transmission characteristics
Transmission characteristics
Attenuation, max. 800 Hz
1.0 dB/1000m
Attenuation, max. 1 MHz
15 dB/1000m
Usage characteristics
Usage characteristics
Length
260 m
Packaging
Coil
Ambient installation temperature, range
-20 ... 40 °C
Operating temperature, range
-40 ... 70 °C
Minimum static operating bending radius
51 mm
Resources
Resources
Documentation
Colour Scheme (Swedish)
pdf — 10.4 kB
Selling & delivery Information
ELLC will be delivered in lenghts of 260 and 1000 m. The drum is marked with manufacturer, type of cable and length. The ends of the cable are sealed.
