EUALEV (Jelly filled; Duct/Underground)
EUALEV (Jelly filled; Duct/Underground)

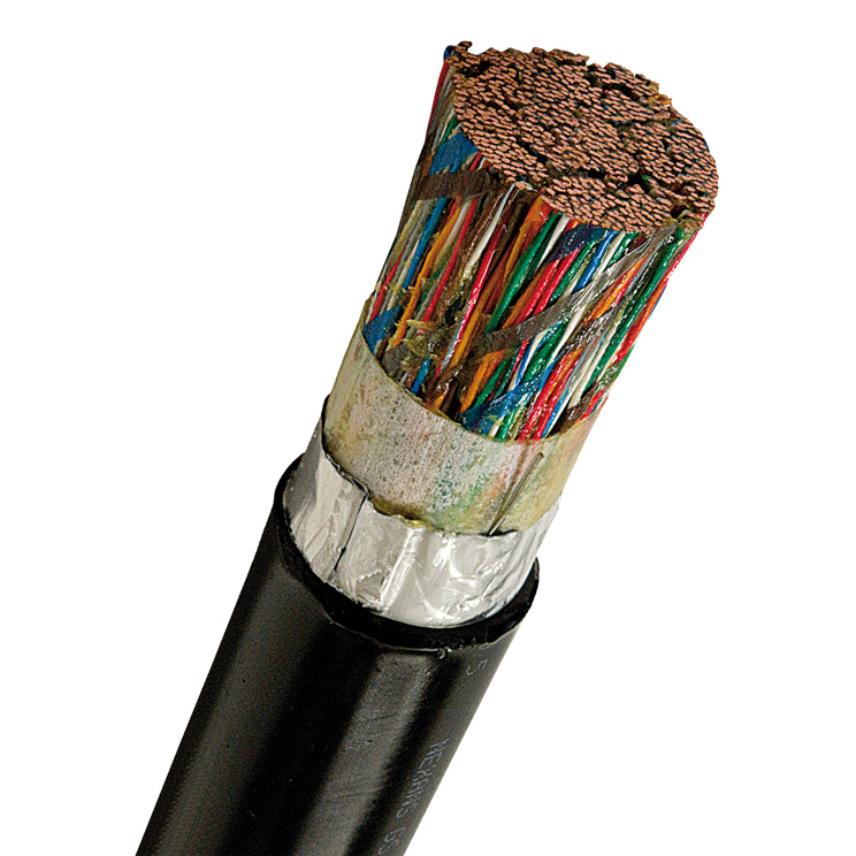

Foamed PE insulated, petroleum-jelly filled, PE sheathed telephone cable intended for installation outdoors in ground or ducts,
Read moreEUALEV 150x2x0,4 To be removed
Nexans ref. 18900798-201-06 - Country ref. 4805265
- Packaging: Drum (500m)
- Nominal outer diameter: 26.5 mm
- Approximate weight: 79.0 kg/100m
- Conductor diameter: 0.4 mm
EUALEV 200x2x0,4 To be removed
Nexans ref. 18900898-201-06 - Country ref. 4805275
- Packaging: Drum (500m)
- Nominal outer diameter: 29.5 mm
- Approximate weight: 101.0 kg/100m
- Conductor diameter: 0.4 mm
EUALEV 300x2x0,4 To be removed
Nexans ref. 18900998-201-06 - Country ref. 4805285
- Packaging: Drum (500m)
- Nominal outer diameter: 37.0 mm
- Approximate weight: 152.0 kg/100m
- Conductor diameter: 0.4 mm
EUALEV 5x2x0,5
Nexans ref. 18905198-201-05 - Country ref. 4805505
- Packaging: Drum (500m)
- Nominal outer diameter: 9.0 mm
- Approximate weight: 9.0 kg/100m
- Conductor diameter: 0.5 mm
EUALEV 10x2x0,5
Nexans ref. 18905298-201-05 - Country ref. 4805515
- Packaging: Drum (500m)
- Nominal outer diameter: 12.0 mm
- Approximate weight: 13.0 kg/100m
- Conductor diameter: 0.5 mm
EUALEV 20x2x0,5
Nexans ref. 18905398-201-05 - Country ref. 4805525
- Packaging: Drum (500m)
- Nominal outer diameter: 15.0 mm
- Approximate weight: 22.0 kg/100m
- Conductor diameter: 0.5 mm
EUALEV 30x2x0,5
Nexans ref. 18905498-201-05 - Country ref. 4805535
- Packaging: Drum (500m)
- Nominal outer diameter: 17.0 mm
- Approximate weight: 30.0 kg/100m
- Conductor diameter: 0.5 mm
EUALEV 50x2x0,5
Nexans ref. 18905598-201-05 - Country ref. 4805545
- Packaging: Drum (500m)
- Nominal outer diameter: 21.0 mm
- Approximate weight: 45.0 kg/100m
- Conductor diameter: 0.5 mm
EUALEV 100x2x0,5
Nexans ref. 18905698-201-05 - Country ref. 4805555
- Packaging: Drum (500m)
- Nominal outer diameter: 27.0 mm
- Approximate weight: 80.0 kg/100m
- Conductor diameter: 0.5 mm
EUALEV 150x2x0,5 To be removed
Nexans ref. 18905798-201-06 - Country ref. 4805565
- Packaging: Drum (500m)
- Nominal outer diameter: 31.0 mm
- Approximate weight: 112.0 kg/100m
- Conductor diameter: 0.5 mm
EUALEV 200x2x0,5
Nexans ref. 18905898-201-06 - Country ref. 4805575
- Packaging: Drum (500m)
- Nominal outer diameter: 38.0 mm
- Approximate weight: 158.0 kg/100m
- Conductor diameter: 0.5 mm
EUALEV 300x2x0,5
Nexans ref. 18905998-201-06 - Country ref. 4805585
- Packaging: Drum (500m)
- Nominal outer diameter: 43.0 mm
- Approximate weight: 213.0 kg/100m
- Conductor diameter: 0.5 mm
EUALEV 5x2x0,7
Nexans ref. 18906198-201-05 - Country ref. 4805605
- Packaging: Drum (500m)
- Nominal outer diameter: 12.0 mm
- Approximate weight: 13.0 kg/100m
- Conductor diameter: 0.7 mm
EUALEV 10x2x0,7
Nexans ref. 18906298-201-05 - Country ref. 4805615
- Packaging: Drum (500m)
- Nominal outer diameter: 15.0 mm
- Approximate weight: 22.0 kg/100m
- Conductor diameter: 0.7 mm
EUALEV 20x2x0,7
Nexans ref. 18906398-201-05 - Country ref. 4805625
- Packaging: Drum (500m)
- Nominal outer diameter: 20.0 mm
- Approximate weight: 39.0 kg/100m
- Conductor diameter: 0.7 mm
EUALEV 30x2x0,7
Nexans ref. 18906498-201-05 - Country ref. 4805635
- Packaging: Drum (500m)
- Nominal outer diameter: 23.0 mm
- Approximate weight: 53.0 kg/100m
- Conductor diameter: 0.7 mm
EUALEV 50x2x0,7
Nexans ref. 18906598-201-05 - Country ref. 4805645
- Packaging: Drum (500m)
- Nominal outer diameter: 28.0 mm
- Approximate weight: 82.0 kg/100m
- Conductor diameter: 0.7 mm
EUALEV 100x2x0,7
Nexans ref. 18906698-201-05 - Country ref. 4805655
- Packaging: Drum (500m)
- Nominal outer diameter: 37.0 mm
- Approximate weight: 152.0 kg/100m
- Conductor diameter: 0.7 mm
Description
Description
Standards
-
ProductIEC 60708
-
NationalSS 424 14 37; SS 424 16 22
DESCRIPTION
Design
Pair-twisted, petroleum-jelly filled, screened and PE-sheathed telecommunication cable. EUALEV is designed in accordance with SS 424 16 22. EUALEV is used for telephony and digital communication (xdsl) in the access network. On request the cable can be provided with steel tape armouring (EUALPLEV) or steel wire armouring (EUALTLEV).
Quality and environmental management system
Certified according to ISO 9001, ISO/TS 16949 and ISO 14001.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Documentation
Selling & delivery Information
EUALEV will be delivered in lengths of 500 m. The drum is marked with manufacturer, type of cable and length. The ends of the cable are sealed.
