ECALWLEV (Balise Transmission Cable)
ECALWLEV (Balise Transmission Cable)
Pair twisted, waterblocked balise transmission cable. The cable is intended for installation in ducts or in ground.
Read moreECALWLEV 4x2x0,9
Nexans ref. 18102498-201-37
- Packaging: Drum (3000m)
- Number of pairs: 4
- Nominal outer diameter: 16.5 mm
- Approximate weight: 28.5 kg/100m
ECALWLEV 7x2x0,9
Nexans ref. 18102798-201-35
- Packaging: Drum (1500m)
- Number of pairs: 7
- Nominal outer diameter: 19.0 mm
- Approximate weight: 37.0 kg/100m
ECALWLEV 10x2x0,9
Nexans ref. 18102998-201-00
- Packaging: Cut to length (m)
- Number of pairs: 10
- Nominal outer diameter: 21.0 mm
- Approximate weight: 47.0 kg/100m
ECALWLEV 2x2x0,9
Nexans ref. 18102298-201-37
- Packaging: Drum (3000m)
- Number of pairs: 2
- Nominal outer diameter: 15.0 mm
- Approximate weight: 22.0 kg/100m
Description
Description
Standards
-
NationalCustomer specification
DESCRIPTION
Design

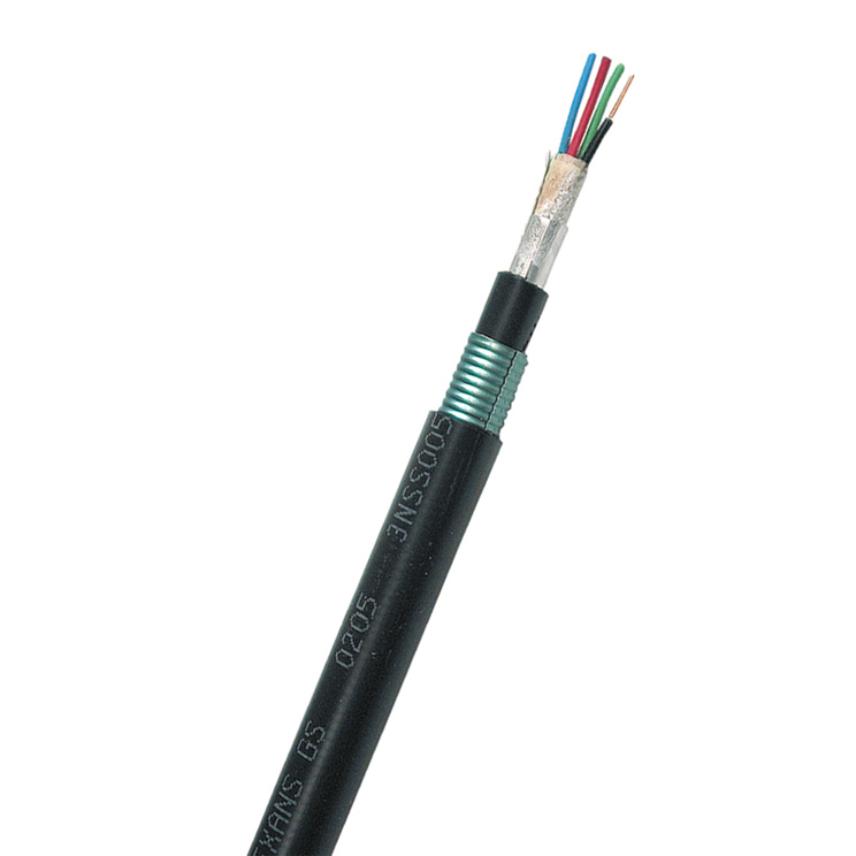

Pair-twisted, jelly filled, screened communication cable with steel tape amour between inner and outer PE sheath. ECALWLEV is used in communication systems for train control (ERTMS).
Quality System
Design, manufacture and testing according to the requirements in ISO 9001.
Environmental management system
The activities at our plant in Grimsås are certified to ISO 14001.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Documentation
Selling & delivery Information
ECALWLEV will be delivered on drums in lengths of 500-3000m. The drum is marked with manufacturer, type of cable and length. The ends of the cable are sealed.
