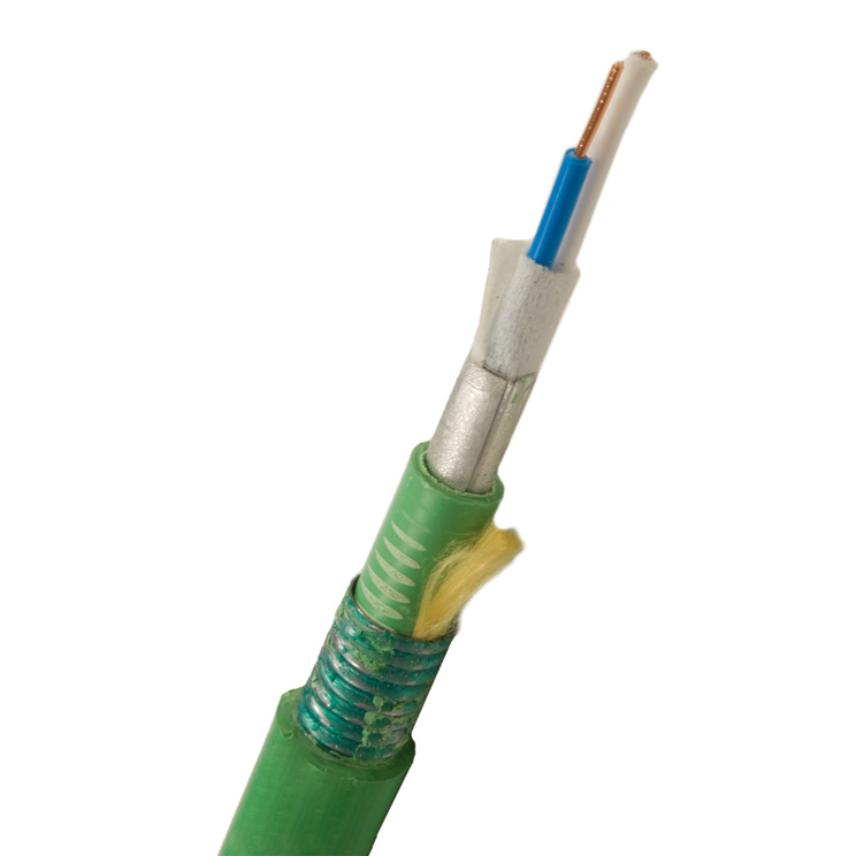

ELAQWQBEV (Balise Transmission Cable)
ELAQWQBEV (Balise Transmission Cable)
Pair twisted, waterblocked, flame retardant balise transmission cable. The cable is intended for installation in ducts or tunnels.
Read moreELAQWQBEV 2x2x0,9
Nexans ref. 18105298-805-37
- Packaging: Drum (3000m)
- Nominal outer diameter: 15.0 mm
- Approximate weight: 27.0 kg/100m
ELAQWQBEV 4x2x0,9
Nexans ref. 18105498-805-37
- Packaging: Drum (3000m)
- Nominal outer diameter: 17.5 mm
- Approximate weight: 34.0 kg/100m
ELAQWQBEV 7x2x0,9
Nexans ref. 18105798-805-35
- Packaging: Drum (1500m)
- Nominal outer diameter: 20.0 mm
- Approximate weight: 44.0 kg/100m
ELAQWQBEV 10x2x0,9
Nexans ref. 18105998-805-35
- Packaging: Drum (1500m)
- Nominal outer diameter: 22.5 mm
- Approximate weight: 54.0 kg/100m
Description
Description
Standards
-
InternationalIEC 60332-3 Cat.C
-
NationalCustomer specification
Design
Pair-twisted, water-blocked, screened communication cable with steel tape amour between inner and outer sheath of halogen free, flame retardant compound. ELAQWQBEV is used in communication systems for train control (ERTMS).
Quality System
Design, manufacture and testing according to the requirements in ISO 9001 and IRIS.
Environmental management system
The activities at our plant in Grimsås are certified to ISO 14001.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Documentation
Selling & delivery Information
ELAQWQBEV will be delivered on drums in lengths of 500-3000m. The drum is marked with manufacturer, type of cable and length. The ends of the cable are sealed.
