GRHLGL-L-CDGNRV 12/T12 G652D S12
GRHLGL-L-CDGNRV 12/T12 G652D S12

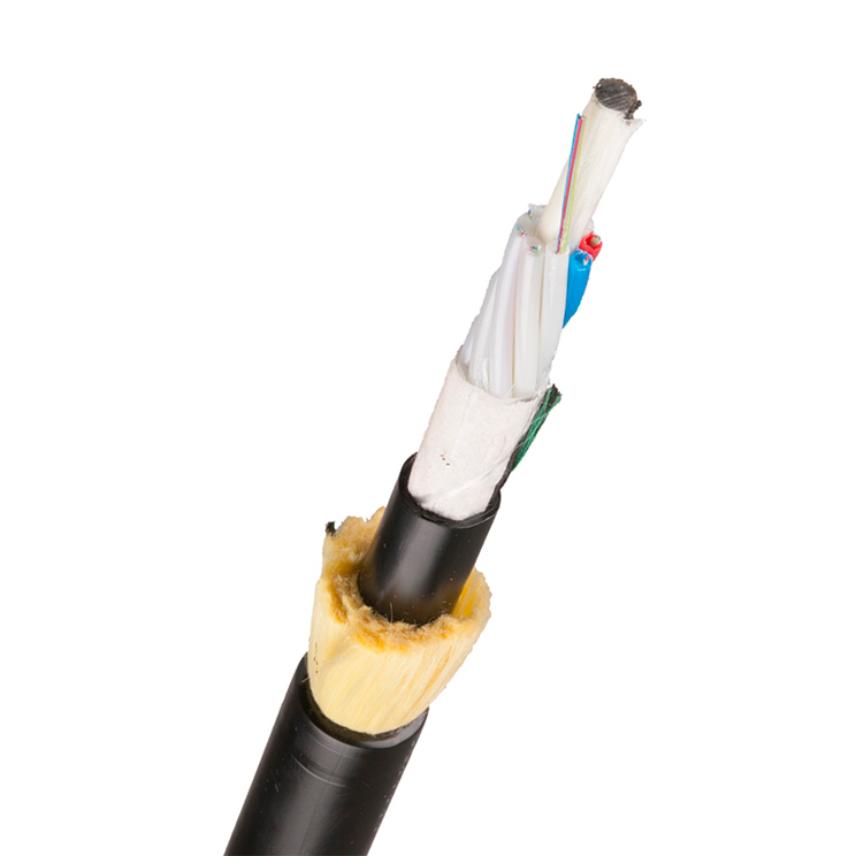

Type GRHLGL is a loose tube fibre optical cable. The cable type is intended for use in regional, urban, area property aerial sytems.
Read more- Nexans ref. : 29063998-201-00
- Country ref. : 4700960
- EAN : 7330000141674
Description
Description
Standards
-
ProductEN 187000; EN 187100; EN 187101; EN 188000; EN 188100; IEC 60794
-
TestIEC 60793
-
InternationalITU-T Rec. G.650; ITU-T Rec. G.652
GRHLGL is longitudinally water-blocked and intended for aerial system. The design can incorporate 12 to 192 fibres in loose tubes. The individually coloured fibres are tubed in groups of 12, and stranded onto a central dielectric fibre reinforced strength member (FRP). The cable type is longitudinal water-blocked through the use of polymeric filling compound and swellable materiel. The cable is sheathed in two layers of halogen-free black polyethylene with a intermediate layer of aramid yarns.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Mechanical characteristics
Mechanical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Documentation
Selling & delivery Information
The outer sheath of the cable is marked with cable type, manufacturer, identification number and meter marking.
The cable is delivered on wooden recyclable drums in lengths according to arrangement. The drum is marked with the cable type, length, rolling direction and installation information. Cable ends closed with end cap.
