GAHSQ-K-DHNRV 384/B8 G652D S12
GAHSQ-K-DHNRV 384/B8 G652D S12

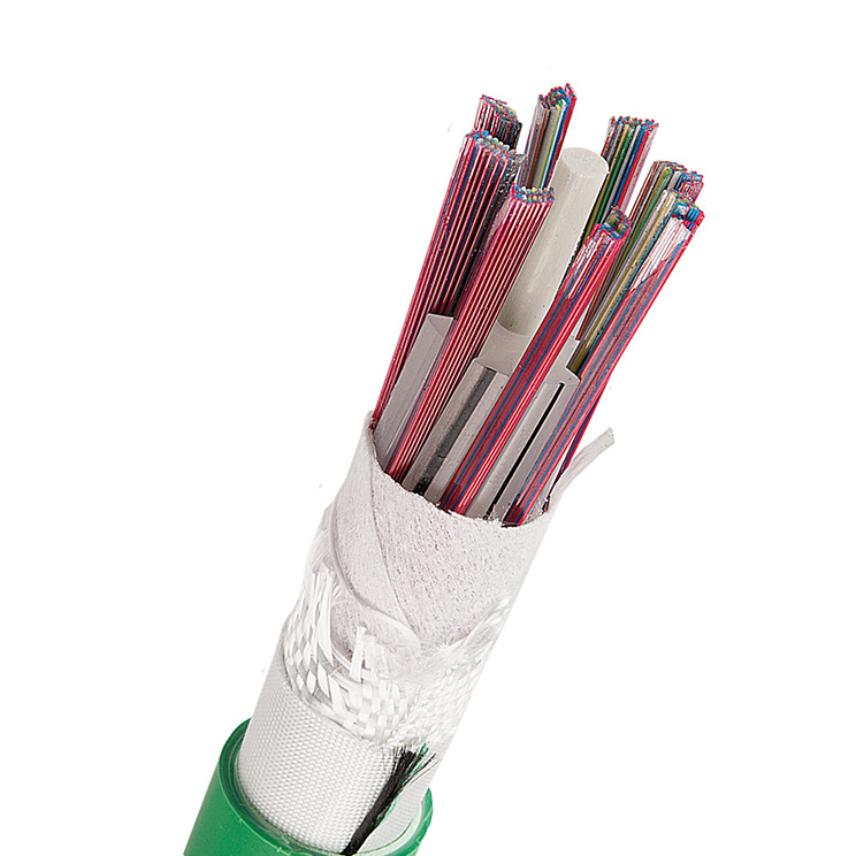

Type GAHSQ (previously called GASQBDUV) is a ribbon slotted core fibre optical cable. The cable type is intended for use in urban, area and property area networks. The cable type is also used a approach cable in factory assembled Optical Distribution Field (ODF) subracks.
Read more- Nexans ref. : 29484798-805-00
- Country ref. : 4977640
- EAN : 7330000164642
Description
Description
Standards
-
ProductIEC 60794
-
TestEN 13501-6; EN 60754-2; EN 61034; IEC 60793
-
InternationalITU-T Rec. G.652
-
NationalSS 424 18 86
Description
The cable type is intended for combined indoor as well as outdoor use (in ducts). The design can incorporate up to 1000 fibres. The fibres are grouped into ribbons consisting each of four fibres (maximum 96 fibres) or 8 fibres (maximum 1000 fibres). The 4- or 8-fibre ribbons are stacked in a slotted core profile of polyethylene, which is extruded onto a dielectric fibre reinforced strength member (FRP). The cable type is longitudinal water-blocked through the use of water-swellable materials and sheathed with halogen-free flame-retardant polymeric compound. The cable type meets the requirements for CPR Dcas2d2a2. The cable emits no corrosive gases and has low smoke production during fire.
Quality and environmental management system
Certified according to ISO 9001, ISO/TS 16949 and ISO 14001.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Mechanical characteristics
Mechanical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Selling & delivery Information
The outer sheath of the cable is marked with cable type, manufacturer, identification number and meter marking.
The cable is delivered on wooden recyclable drums in lengths according to arrangement. The drum is marked with the cable type, length, rolling direction and installation information. Cable ends closed with end cap.
Declaration of Performance
- Declaration of Performance n� : 1000163-SEGR
- Certification Date : 6/14/17
- AVCP (Assessment and Verification of Constancy of Performance) : System 3
- Notified body : 0366
- Declared performance : Dca-s2,d2,a2
