TBU LSZH 24xSM G652D SP1724 BK
TBU LSZH 24xSM G652D SP1724 BK
Tight Buffer cable - 24 fibres
Read more- Nexans ref. : 29510598-901-00
- Country ref. : 4977280
- EAN : 5420059926987
Description
Description
Standards
-
ProductIEC 60794
-
TestEN 50399 D; IEC 60332-1; IEC 60332-3; IEC 60754-1; IEC 61034
This tight buffer cable is designed for indoor/outdoor installation.
This cable has an outstanding fire behaviour.
Direct connectorization is made easy with 900µm buffered structure.
This cable can be operated under a large temperature range.
Design

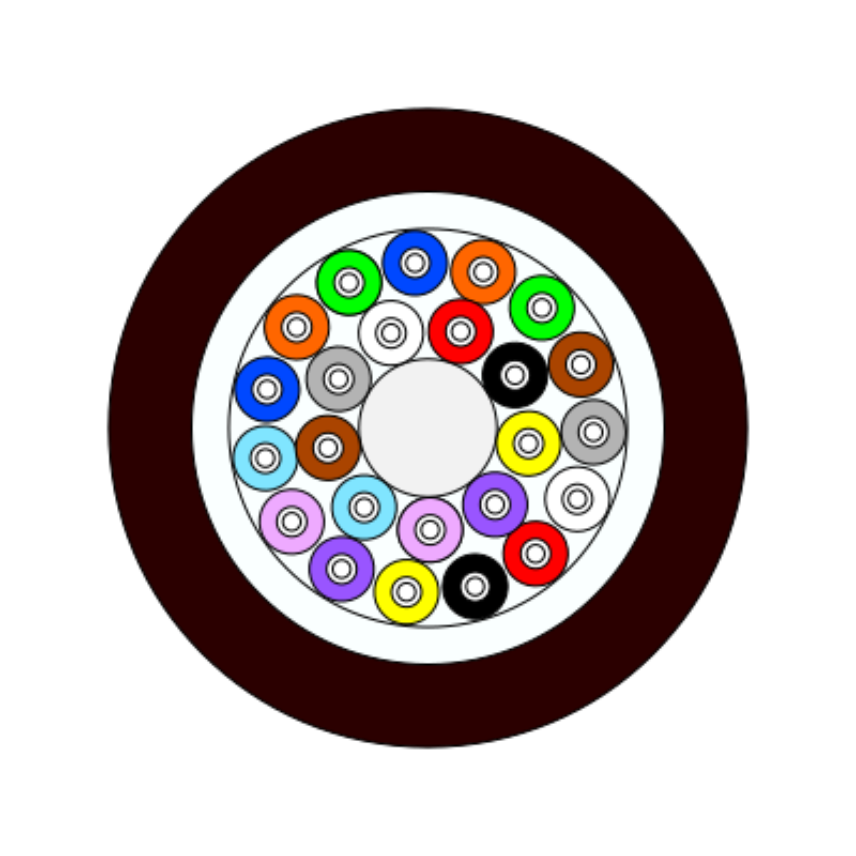

The TBU LSZH* SP1724 cable has a central strength member (FRP: Fibre Reinforced Plastic), with 24 900µm buffered structure around. The design is reinforced by a layer of glass yarns and a LSZH* sheath.
Fibre type
The TBU LSZH* SP1724 cable is available with multimode and singlemode fibres.
Technical performances
The tight buffer cable performances are specified in the following tables.
Additional details
This cable is provided as a standard with a black sheath, other sheath colours are also available. Long exposure to UV with these other colours could generate colour fading.
Black or colored stripes are used for the fibre identification from position 13 to 24.
* LSZH: Low Smoke Zero Halogen.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Mechanical characteristics
Mechanical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Documentation
Selling & delivery Information
Standard Marking
Nexans - FIBRE OPTIC CABLE - TBU LSZH Dca s1 d1 a1 SP1724 - XXxYY - FB - TN - metric
XX = Fibre Count YY = Fibre Type FB = Frameries, Belgium (manufacturing place) TN = Traceability NumberDeclaration of Performance
- Declaration of Performance n� : 1001189-NOLA
- Certification Date : 1/16/24
- AVCP (Assessment and Verification of Constancy of Performance) : System 3
- Notified body : 1000253
- Declared performance : Dca-s1,d1,a1
