TBU LSZH 4x50/125 OM3 SP1724 BK
TBU LSZH 4x50/125 OM3 SP1724 BK
Tight Buffer cable - 4 fibres
Read more- Nexans ref. : 29511998-901-00
- Country ref. : 4977370
- EAN : 5420059931035
Description
Description
Standards
-
ProductIEC 60794
-
TestEN 50399 D; IEC 60332-1; IEC 60332-3; IEC 60754-1; IEC 61034
This tight buffer cable is designed for indoor/outdoor installation.
This cable has an outstanding fire behaviour.
Direct connectorization is made easy with 900µm buffered structure.
This cable can be operated under a large temperature range.
Design

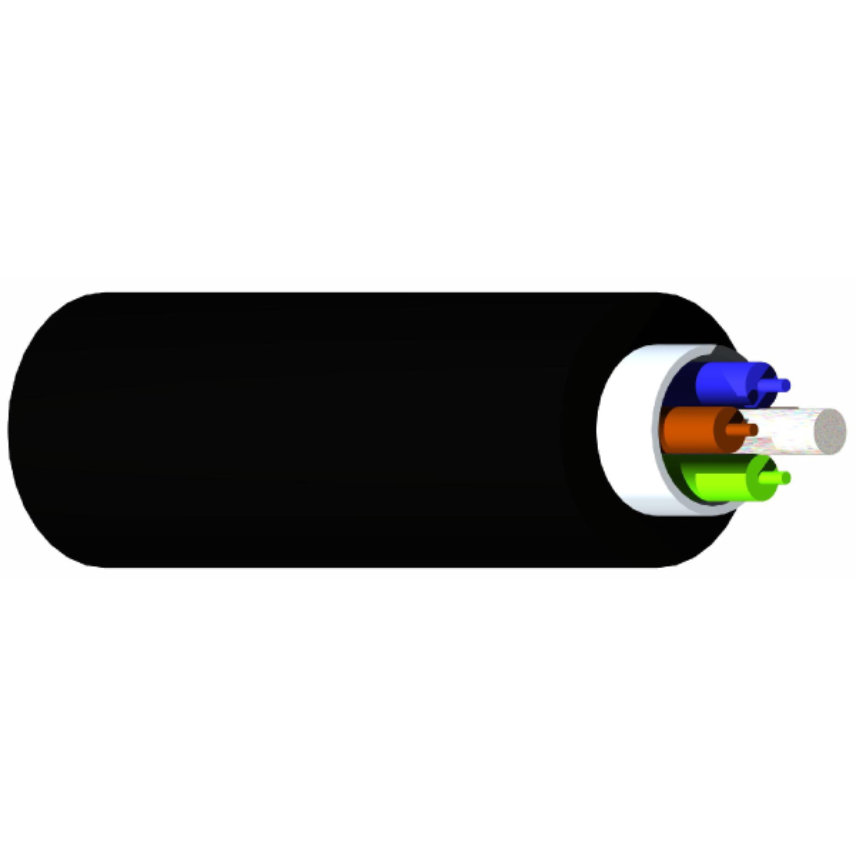

The TBU LSZH* SP1724 cable has a central strength member (FRP: Fibre Reinforced Plastic), with 4 900µm buffered structure around. The design is reinforced by a layer of glass yarns and a LSZH* sheath.
Fibre type
The TBU LSZH* SP1724 cable is available with multimode and singlemode fibres.
Technical performances
The tight buffer cable performances are specified in the following tables.
Additional details
This cable is provided as a standard with a black sheath, other sheath colours are also available. Long exposure to UV with these other colours could generate colour fading.
Euroclass
Dca S1 d0 a1
* LSZH: Low Smoke Zero Halogen.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Mechanical characteristics
Mechanical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Documentation
Selling & delivery Information
Standard Marking
Nexans - FIBRE OPTIC CABLE - TBU LSZH Dca s1 d1 a1 SP1724 - XXxYY - FB - TN - metric
XX = Fibre Count YY = Fibre Type FB = Frameries, Belgium (manufacturing place) TN = Traceability NumberDeclaration of Performance
- Declaration of Performance n� : 1001189-NOLA
- Certification Date : 1/16/24
- AVCP (Assessment and Verification of Constancy of Performance) : System 3
- Notified body : 1000253
- Declared performance : Dca-s1,d1,a1
