GAHSL-U-DHNRV 48/C4 G652D S12
GAHSL-U-DHNRV 48/C4 G652D S12
Type GAHSL is a ribbon slotted core fibre optical cable. The cable type is intended for use in regional, urban and area networks.
Read more- Nexans ref. : 29317398-411-00
- Country ref. : 4971880
- EAN : 7330000189874
Description
Description
Standards
-
ProductIEC 60794
-
TestIEC 60793
-
InternationalITU-T Rec. G.650; ITU-T Rec. G.652

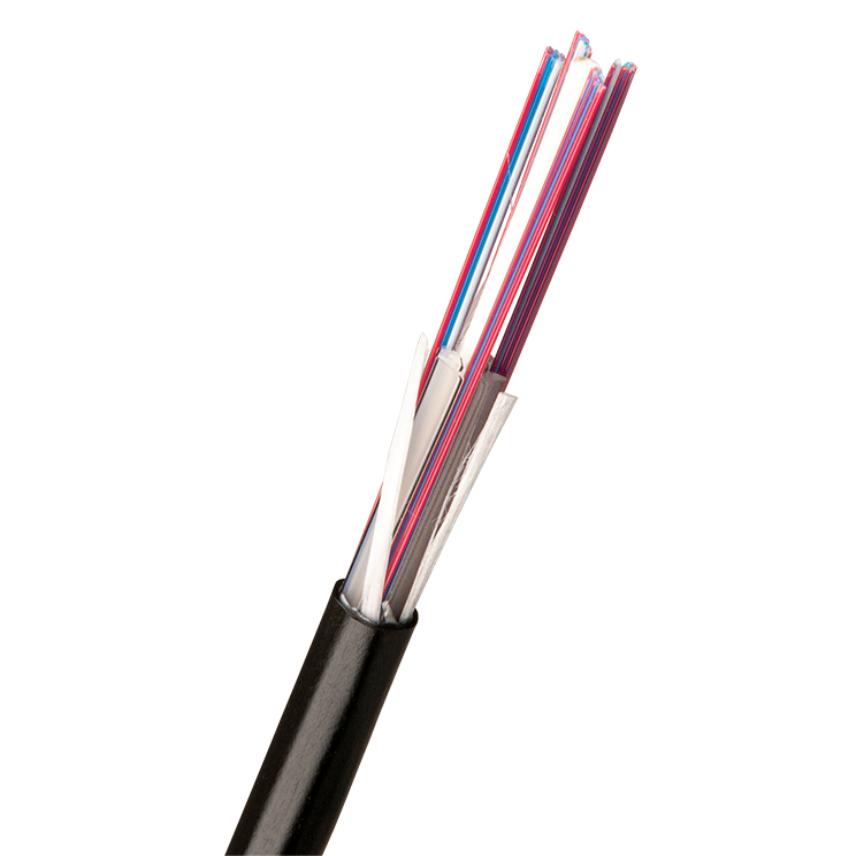

The cable type is longitudinally water-blocked and intended for outdoor use (in ducts). The design can incorporate up to 96 fibres. The fibres are grouped into ribbons consisting each of four fibres (maximum 96 fibres). The 4-fibre ribbons are stacked in a slotted core profile of polyethylene, which is extruded onto a dielectric fibre reinforced strength member (FRP). The cable type is longitudinal water-blocked through use of swellable yarns. GAHSL is sheathed with halogen-free black HDPE. Optimized for installation by jetting.
Quality and environmental management system
Certified according to ISO 9001, IRIS, ISO/TS 16949 and ISO 14001.
Fiber specifications
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Mechanical characteristics
Mechanical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Selling & delivery Information
The outer sheath of the cable is marked with cable type, manufacturer, identification number and meter marking.
The cable is delivered on wooden recyclable drums in lengths according to arrangement. The drum is marked with the cable type, length, rolling direction and installation information. Cable ends closed with end cap.
