Underwater - GAHSALJJL Ribbon (12 - 480 fibres)
Underwater - GAHSALJJL Ribbon (12 - 480 fibres)

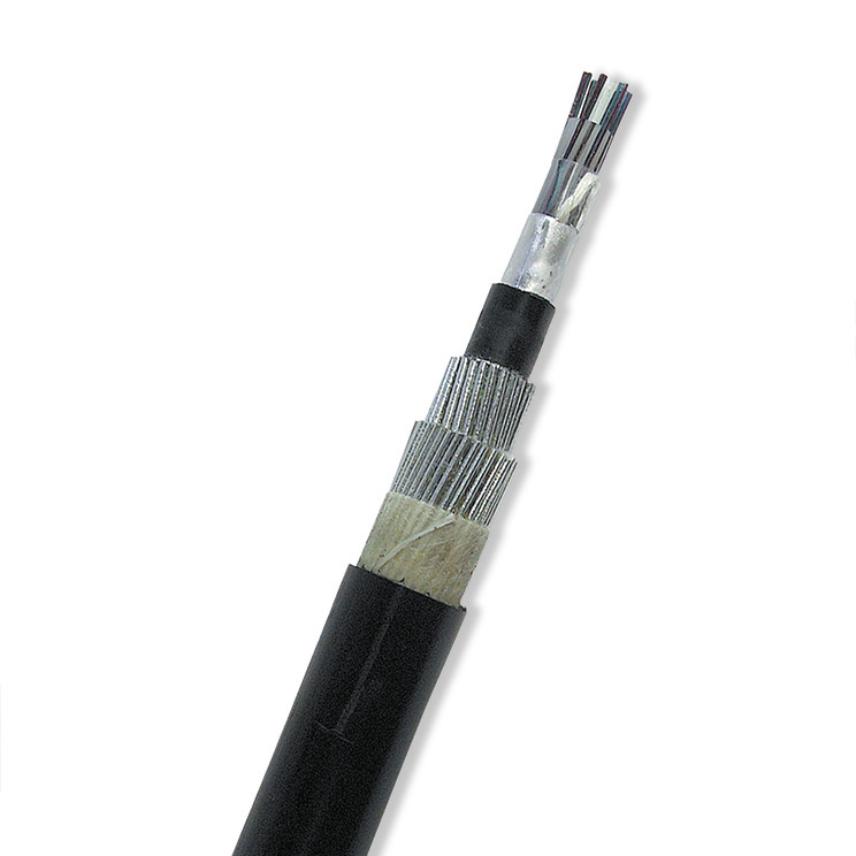

Type GAHSALJJL (tidigare benämnd GASALTTLV) is a ribbon slotted core fibre optical cable. The cable type is intended for use in regional and urban networks in river and lake installations.
Read moreGAHSALJJL-S-AFNRV 12/C4 G652D S12
Nexans ref. 29030398-201-00 - Country ref. 4969510
- Packaging: Drum (2000m)
- Type of secondary protection: 4-fibre ribbon
- Number of optical fibres: 12
- Average sheath thickness: 2.5 mm
- Nominal outer diameter: 25.6 mm
- Approximate weight: 1380 kg/km
GAHSALJJL-S-AFNRV 24/C4 G652D S12
Nexans ref. 29030498-201-00 - Country ref. 4969520
- Packaging: Drum (2000m)
- Type of secondary protection: 4-fibre ribbon
- Number of optical fibres: 24
- Average sheath thickness: 2.5 mm
- Nominal outer diameter: 25.6 mm
- Approximate weight: 1380 kg/km
GAHSALJJL-S-AFNRV 48/C4 G652D S12
Nexans ref. 29014498-201-00 - Country ref. 4969530
- Packaging: Drum (2000m)
- Type of secondary protection: 4-fibre ribbon
- Number of optical fibres: 48
- Average sheath thickness: 2.5 mm
- Nominal outer diameter: 25.6 mm
- Approximate weight: 1380 kg/km
GAHSALJJL-S-AFNRV 96/C4 G652D S12
Nexans ref. 29020298-201-00 - Country ref. 4969540
- Packaging: Drum (2000m)
- Type of secondary protection: 4-fibre ribbon
- Number of optical fibres: 96
- Average sheath thickness: 2.5 mm
- Nominal outer diameter: 26.4 mm
- Approximate weight: 1450 kg/km
GAHSALJJL-S-AFNRV 192/B8 G652D S12
Nexans ref. 29026398-201-00 - Country ref. 4969550
- Packaging: Drum (2000m)
- Type of secondary protection: 8-fibre ribbon
- Number of optical fibres: 192
- Average sheath thickness: 2.0 mm
- Nominal outer diameter: 29.6 mm
- Approximate weight: 1650 kg/km
GAHSALJJL-S-AFNRV 288/B8 G652D S12
Nexans ref. 29077698-201-00
- Packaging: Drum (2000m)
- Type of secondary protection: 8-fibre ribbon
- Number of optical fibres: 288
- Average sheath thickness: 2.0 mm
- Nominal outer diameter: 33.2 mm
- Approximate weight: 2150 kg/km
GAHSALJJL-S-AFNRV 480/B8 G652D S12
Nexans ref. 29078798-201-00
- Packaging: Drum (2000m)
- Type of secondary protection: 8-fibre ribbon
- Number of optical fibres: 480
- Average sheath thickness: 2.0 mm
- Nominal outer diameter: 34.0 mm
- Approximate weight: 2200 kg/km
Description
Description
Standards
-
ProductIEC 60794
-
TestIEC 60793
-
InternationalITU-T Rec. G.650; ITU-T Rec. G.652
Description
The cable type is intended for river and lake or direct burial installation. The design can incorporate up to 480 fibres. The fibres are grouped into ribbons consisting each of four fibres (maximum 96 fibres) or 8 fibres (maximum 480 fibres). The 4- or 8-fibre ribbons are stacked in a slotted core profile of polyethylene, which is extruded onto a dielectric fibre reinforced strength member (FRP). The cable type is longitudinal water-blocked through the use of polymeric filling compound and double sheathed with halogen-free black polyethylene including two layers of galvanized steel wires.
Quality and environmental management system
Certified according to ISO 9001, ISO/TS 16949 and ISO 14001.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Mechanical characteristics
Mechanical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Selling & delivery Information
The outer sheath of the cable is marked with cable type, manufacturer, identification number and meter marking.
The cable is delivered on wooden recyclable drums in lengths according to arrangement. The drum is marked with the cable type, length, rolling direction and installation information. Cable ends closed with end cap.
