GRHL-U-CDGNRV 12/T12 G657A1 S12
GRHL-U-CDGNRV 12/T12 G657A1 S12
Type GRHL is a loose tube fibre optical cable. The cable type is intended for use in regional, urban, and area property networks.
Read more- Nexans ref. : 29033198-201-00
- Country ref. : 4973060
- EAN : 7330000050945
Description
Description
Standards
-
ProductIEC 60794
-
TestIEC 60793
-
InternationalITU-T Rec. G.650; ITU-T Rec. G.652
Description

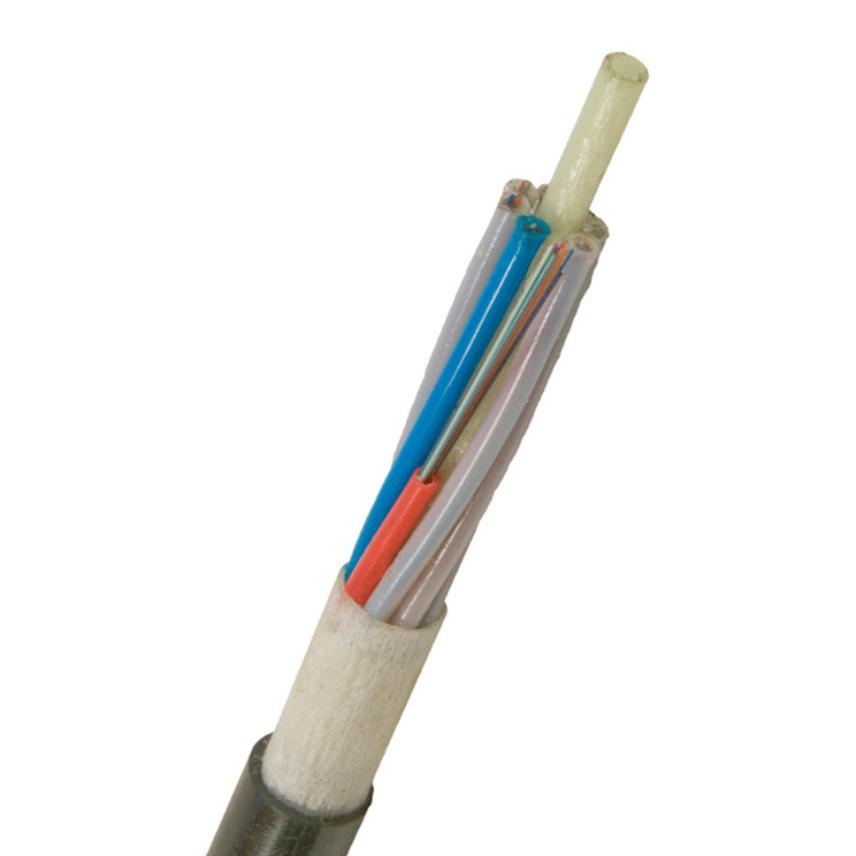

The cable type is longitudinally water-blocked and intended for outdoor use (in ducts). The design can incorporate 12 to 288 fibres in loose tubes with a diameter of 2,25 mm. The individually coloured fibres are tubed in groups of maximum 12, and stranded onto a central dielectric fibre reinforced strength member (FRP). The cable type is longitudinal water-blocked through the use of swellable tape and sheathed with halogen-free black polyethylene.
Quality and environmental management system
Certified according to ISO 9001, ISO/TS 16949 and ISO 14001.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Mechanical characteristics
Mechanical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Selling & delivery Information
The outer sheath of the cable is marked with cable type, manufacturer, identification number and meter marking.
The cable is delivered on wooden recyclable drums in lengths according to arrangement. The drum is marked with the cable type, length, rolling direction and installation information. Cable ends closed with end cap.
