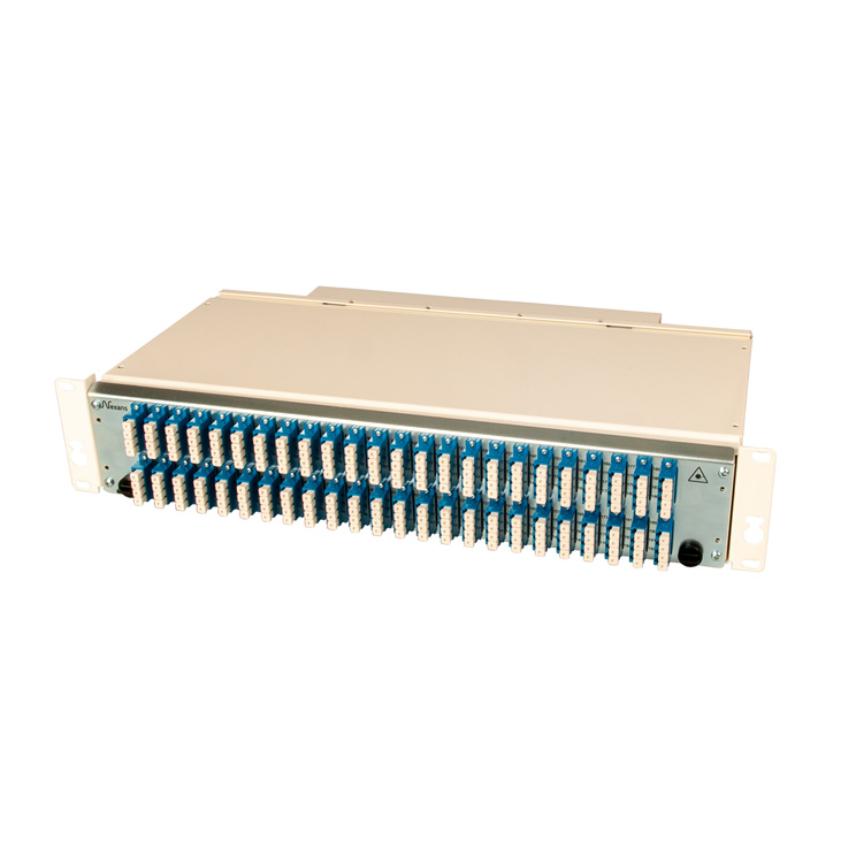

19 inch Subrack 2U 192SM LC/UPC with adapter
19 inch Subrack 2U 192SM LC/UPC with adapter
Preterminated fibre optic subrack with adapters to be used in 19 inch optical distribution frames.
Read more- Nexans ref. : 48430909-000-00
- Country ref. : 5027507
- EAN : 7330000164369
Description
Description
Fibre optic subrack with adapters for use in 19 inch system. The subrack is delivered with duplex adaptors with connector type SC or quad adapters with connector type LC. The subrack is delivered complete with panel board, adapters (screwed into the panel), attach device, cable fixing device.
Installation film 19 inch Fibre optic subrack D240 with adapters
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Box type
Splicing and patching
Colour
White
Cable entry
From two ways
Type of patching panel
LC
Connector type
LC
Dimensional characteristics
Dimensional characteristics
Depth
240 mm
Width
445 mm
Height
88 mm
Approximate weight per piece
4.5 kg
Number of optical connectors
192
Maximum number of adaptators
48
Usage characteristics
Usage characteristics
Field of application
Indoor
Adaptor
LC/UPC
Storage temperature, range
-40 ... 70 °C
Operating temperature, range
-30 ... 70 °C
Ambient installation temperature, range
-10 ... 40 °C
