KB1496 Preterminated fiber optic subrack 96SM SC/UPC 200m
KB1496 Preterminated fiber optic subrack 96SM SC/UPC 200m
Preterminated fibre optic subrack to be used in 14-19 inch and ETSI optical distribution frames.
Read more- Nexans ref. : 28188409-000-00
- Country ref. : 5027059
- EAN : 7330000156234
Description
Description
Description

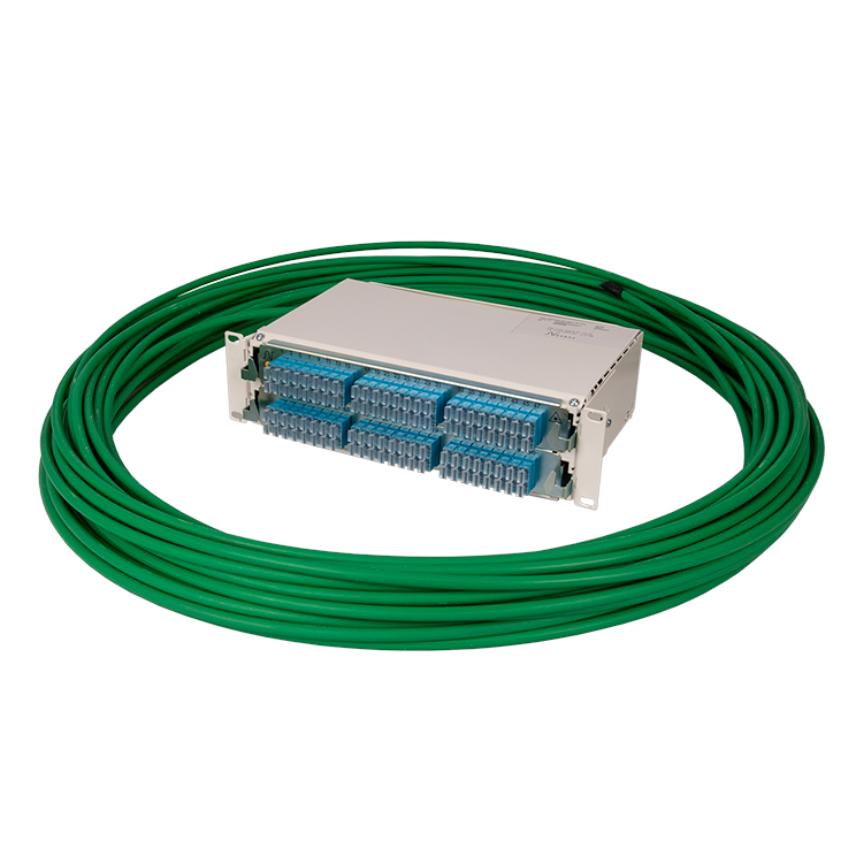

Preterminated fibre optic subrack with SC/UPC connectors. The subrack is delivered complete with panel board, adapters, connectors, cable fixing device and requested cable length wish of the cable types GAHSQ or N3S Cabinet Cable.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Cabinet format
19"/ETSI
Box type
Patching
Colour
White
Cable entry
From left
Type of patching panel
SC Duplex
Connector type
SC
Fiber optic type
SM (G.652D)
Type of secondary protection
4-fibre ribbon
Type of cable
GAHSQ
Dimensional characteristics
Dimensional characteristics
Depth
210 mm
Width
483 mm
Height
88 mm
Approximate weight per piece
- kg
Number of optical connectors
96
Maximum number of adaptators
48
Apex offset
50 µm
Ferrule outer diameter
2,4999 ± 0,0005 mm
Ferrule endface curvature, radius UPC
10< r <25 mm
Tolerance of cavity diameter
+1, -0 µm
Concentricity error of cavity
< 1,4 µm
Fibre protrusion
< -0,05 µm
Fibre undercut
> -0,05 µm
Transmission characteristics
Transmission characteristics
Return Loss, Minimum, dB
50 dB
Insertion Loss, max, 1550 nm, dB
0.5 dB
Insertion Loss, nom, 1550 nm, dB
0.2 dB
Usage characteristics
Usage characteristics
Field of application
Indoor
Length
200 m
Storage temperature, range
-40 ... 70 °C
Operating temperature, range
-30 ... 70 °C
Ambient installation temperature, range
-15 ... 40 °C
