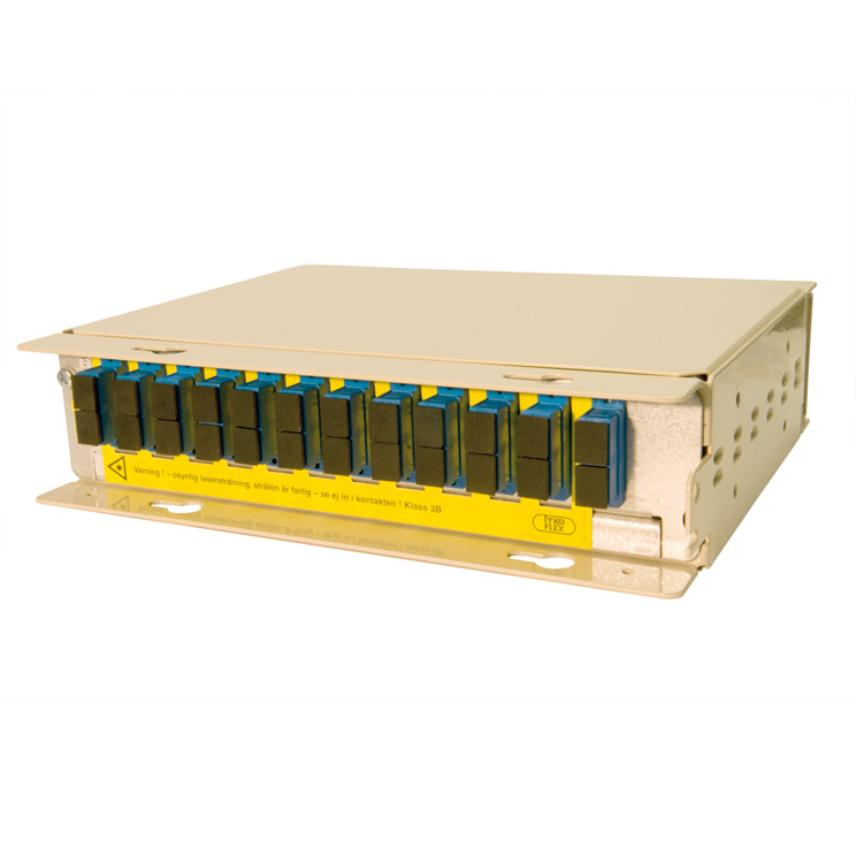

Maxi Preterminated fibre optic subrack with fan-out
Maxi Preterminated fibre optic subrack with fan-out
Preterminated fibre optic fan-out subrack to be used in Maxi optical distribution frames.
Read moreMaxi Preterminated fibre optic fan-out subrack 12SM SC/UPC
Nexans ref. 28491209-000-00 - Country ref. 5026148
- Packaging: Unit
- Type of patching panel: SC
- Number of optical connectors: 12
Maxi Preterminated fibre optic fan-out subrack 24SM SC/UPC
Nexans ref. 28492409-000-00 - Country ref. 5026149
- Packaging: Unit
- Type of patching panel: SC Duplex
- Number of optical connectors: 24
Maxi Preterminated fibre optic fan-out subrack 48SM SC/UPC
Nexans ref. 28494809-000-00 - Country ref. 5026150
- Packaging: Unit
- Type of patching panel: SC Duplex
- Number of optical connectors: 48
Description
Description
Description
Preterminated fibre optic fan-out subrack for system Maxi. The Maxi subrack is delivered preterminated with 12, 24 or 48 fibres (3, 6 or 12 fan-outs) and with connectors SC/UPC. The subrack is delivered complete with panel board, adapters, connectors, attach device and cable fixing device.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Box type
Splicing and patching
Colour
White
Cable entry
From two ways
Connector type
SC
Fiber optic type
SM (G.652D)
Type of secondary protection
4-fibre ribbon
Dimensional characteristics
Dimensional characteristics
Depth
225 mm
Width
75 mm
Apex offset
50 µm
Ferrule outer diameter
2,4999 ± 0,0005 mm
Tolerance of cavity diameter
+1, -0 µm
Concentricity error of cavity
< 1,4 µm
Usage characteristics
Usage characteristics
Field of application
Indoor
Storage temperature, range
... °C
Operating temperature, range
... °C
Ambient installation temperature, range
... °C
