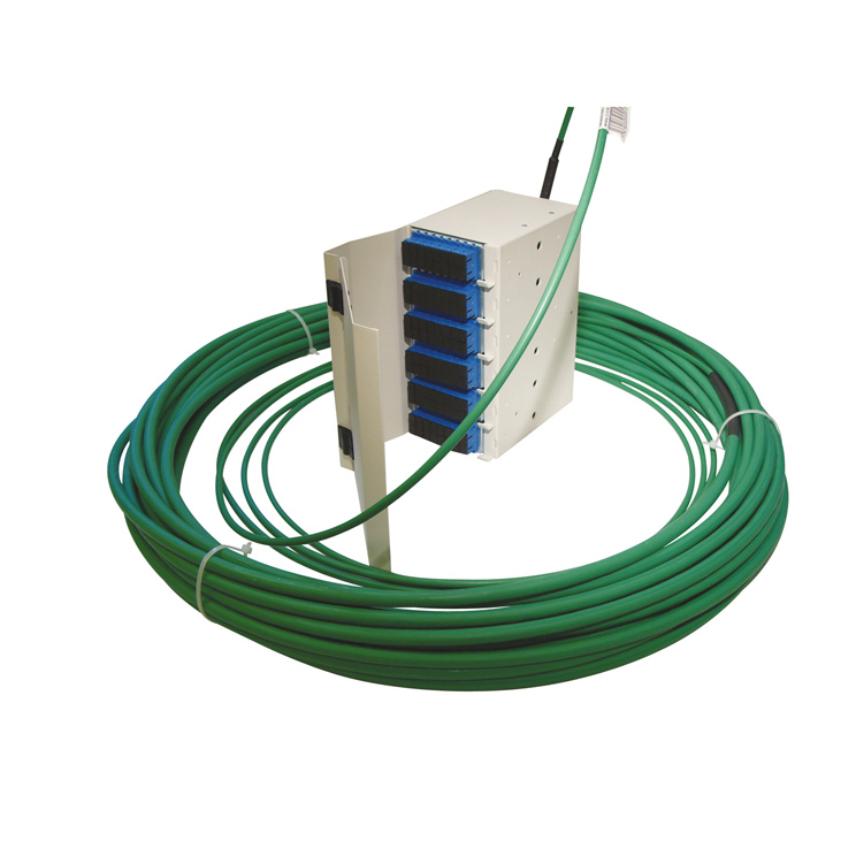

N3S Preterminated fibre optic subrack with cable

N3S Preterminated fibre optic subrack with cable

N3S Preterminated fibre optic subrack with cable

Preterminated fibre optic subrack to be used in N3S optical distribution frames.

Read more
Download all documents
Contact us

Products

Actions
Filters

  • products

N3S Preterminated sub-rack 12SM SC/UPC 30 m NEW

Nexans ref. 28391309-000-00 - Country ref. 5029001

  • Packaging: Unit
  • Connector type: SC
  • Type of cable: GAHSQ
  • Number of optical connectors: 12
  • Length: 30 m
  • Adaptor: SC/UPC



N3S Preterminated sub-rack 12SM SC/UPC 70 m NEW

Nexans ref. 28391709-000-00 - Country ref. 5029002

  • Packaging: Unit
  • Connector type: SC
  • Type of cable: GAHSQ
  • Number of optical connectors: 12
  • Length: 70 m
  • Adaptor: SC/UPC



N3S Preterminated sub-rack 48SM SC/UPC 50 m

Nexans ref. 28142509-000-00 - Country ref. 5025935

  • Packaging: Unit
  • Connector type: SC
  • Type of cable: GAHSQ
  • Number of optical connectors: 48
  • Length: 50 m
  • Adaptor: SC/UPC



N3S Preterminated sub-rack 48SM SC/UPC 70 m

Nexans ref. 28142709-000-00 - Country ref. 5025936

  • Packaging: Unit
  • Connector type: SC
  • Type of cable: GAHSQ
  • Number of optical connectors: 48
  • Length: 70 m
  • Adaptor: SC/UPC



N3S Preterminated sub-rack 48SM SC/UPC 100 m

Nexans ref. 28143009-000-00 - Country ref. 5025937

  • Packaging: Unit
  • Connector type: SC
  • Type of cable: GAHSQ
  • Number of optical connectors: 48
  • Length: 100 m
  • Adaptor: SC/UPC



N3S Preterminated sub-rack 48SM SC/UPC 120 m

Nexans ref. 28145209-000-00 - Country ref. 5027040

  • Packaging: Unit
  • Connector type: SC
  • Type of cable: GAHSQ
  • Number of optical connectors: 48
  • Length: 120 m
  • Adaptor: SC/UPC



N3S Preterminated sub-rack 48SM SC/UPC 140 m

Nexans ref. 28146309-000-00 - Country ref. 5027041

  • Packaging: Unit
  • Connector type: SC
  • Type of cable: GAHSQ
  • Number of optical connectors: 48
  • Length: 140 m
  • Adaptor: SC/UPC



N3S Preterminated sub-rack 48SM SC/UPC 160 m

Nexans ref. 28146409-000-00 - Country ref. 5027042

  • Packaging: Unit
  • Connector type: SC
  • Type of cable: GAHSQ
  • Number of optical connectors: 48
  • Length: 160 m
  • Adaptor: SC/UPC



N3S Preterminated sub-rack 48SM SC/UPC 180 m

Nexans ref. 28144909-000-00 - Country ref. 5027043

  • Packaging: Unit
  • Connector type: SC
  • Type of cable: GAHSQ
  • Number of optical connectors: 48
  • Length: 180 m
  • Adaptor: SC/UPC



N3S Preterminated sub-rack 48SM SC/UPC 200 m

Nexans ref. 28144809-000-00 - Country ref. 5027044

  • Packaging: Unit
  • Connector type: SC
  • Type of cable: GAHSQ
  • Number of optical connectors: 48
  • Length: 200 m
  • Adaptor: SC/UPC



N3S Preterminated sub-rack 96SM SC/UPC 50 m

Nexans ref. 28140509-000-00 - Country ref. 5025939

  • Packaging: Unit
  • Connector type: SC
  • Type of cable: GAHSQ
  • Number of optical connectors: 96
  • Length: 50 m
  • Adaptor: SC/UPC



N3S Preterminated sub-rack 96SM SC/UPC 70 m

Nexans ref. 28140709-000-00 - Country ref. 5025940

  • Packaging: Unit
  • Connector type: SC
  • Type of cable: GAHSQ
  • Number of optical connectors: 96
  • Length: 70 m
  • Adaptor: SC/UPC



N3S Preterminated sub-rack 96SM SC/UPC 100 m

Nexans ref. 28141009-000-00 - Country ref. 5025941

  • Packaging: Unit
  • Connector type: SC
  • Type of cable: GAHSQ
  • Number of optical connectors: 96
  • Length: 100 m
  • Adaptor: SC/UPC



N3S Preterminated sub-rack 96SM SC/UPC 120 m

Nexans ref. 28141209-000-00 - Country ref. 5027045

  • Packaging: Unit
  • Connector type: SC
  • Type of cable: GAHSQ
  • Number of optical connectors: 96
  • Length: 120 m
  • Adaptor: SC/UPC



N3S Preterminated sub-rack 96SM SC/UPC 140 m

Nexans ref. 28141409-000-00 - Country ref. 5027046

  • Packaging: Unit
  • Connector type: SC
  • Type of cable: GAHSQ
  • Number of optical connectors: 96
  • Length: 140 m
  • Adaptor: SC/UPC



N3S Preterminated sub-rack 96SM SC/UPC 160 m

Nexans ref. 28141609-000-00 - Country ref. 5027047

  • Packaging: Unit
  • Connector type: SC
  • Type of cable: GAHSQ
  • Number of optical connectors: 96
  • Length: 160 m
  • Adaptor: SC/UPC



N3S Preterminated sub-rack 96SM SC/UPC 180 m

Nexans ref. 28141809-000-00 - Country ref. 5027048

  • Packaging: Unit
  • Connector type: SC
  • Type of cable: GAHSQ
  • Number of optical connectors: 96
  • Length: 180 m
  • Adaptor: SC/UPC



N3S Preterminated sub-rack 96SM SC/UPC 200 m

Nexans ref. 28142009-000-00 - Country ref. 5027049

  • Packaging: Unit
  • Connector type: SC
  • Type of cable: GAHSQ
  • Number of optical connectors: 96
  • Length: 200 m
  • Adaptor: SC/UPC



N3S Preterminated sub-rack 48SM SC/APC 20 m

Nexans ref. 28131909-000-00 - Country ref. 5027516

  • Packaging: Unit
  • Connector type: SC/APC
  • Type of cable: N3S Cabinet Cable (double)
  • Number of optical connectors: 48
  • Length: 20 m
  • Adaptor: SC/APC



N3S Preterminated sub-rack 48SM SC/APC 30 m

Nexans ref. 28132309-000-00 - Country ref. 5027518

  • Packaging: Unit
  • Connector type: SC/APC
  • Type of cable: N3S Cabinet Cable (double)
  • Number of optical connectors: 48
  • Length: 30 m
  • Adaptor: SC/APC



N3S Preterminated sub-rack 96SM SC/APC 20 m

Nexans ref. 28132009-000-00 - Country ref. 5027517

  • Packaging: Unit
  • Connector type: SC/APC
  • Type of cable: N3S Cabinet Cable (double)
  • Number of optical connectors: 96
  • Length: 20 m
  • Adaptor: SC/APC



N3S Preterminated sub-rack 96SM SC/APC 30 m

Nexans ref. 28132409-000-00 - Country ref. 5027519

  • Packaging: Unit
  • Connector type: SC/APC
  • Type of cable: N3S Cabinet Cable (double)
  • Number of optical connectors: 96
  • Length: 30 m
  • Adaptor: SC/APC



N3S Preterminated sub-rack 48SM SC/UPC 15 m

Nexans ref. 28143109-000-00 - Country ref. 5025988

  • Packaging: Unit
  • Connector type: SC
  • Type of cable: N3S Cabinet Cable (double)
  • Number of optical connectors: 48
  • Length: 15 m
  • Adaptor: SC/UPC



N3S Preterminated sub-rack 48SM SC/UPC 30 m

Nexans ref. 28143309-000-00 - Country ref. 5025942

  • Packaging: Unit
  • Connector type: SC
  • Type of cable: N3S Cabinet Cable (double)
  • Number of optical connectors: 48
  • Length: 30 m
  • Adaptor: SC/UPC



N3S Preterminated sub-rack 48SM SC/UPC 50 m

Nexans ref. 28143509-000-00 - Country ref. 5025943

  • Packaging: Unit
  • Connector type: SC
  • Type of cable: N3S Cabinet Cable (double)
  • Number of optical connectors: 48
  • Length: 50 m
  • Adaptor: SC/UPC



N3S Preterminated sub-rack 48SM SC/UPC 70 m

Nexans ref. 28143709-000-00 - Country ref. 5025944

  • Packaging: Unit
  • Connector type: SC
  • Type of cable: N3S Cabinet Cable (double)
  • Number of optical connectors: 48
  • Length: 70 m
  • Adaptor: SC/UPC



N3S Preterminated sub-rack 96SM SC/UPC 15 m

Nexans ref. 28147109-000-00 - Country ref. 5025989

  • Packaging: Unit
  • Connector type: SC
  • Type of cable: N3S Cabinet Cable (double)
  • Number of optical connectors: 96
  • Length: 15 m
  • Adaptor: SC/UPC



N3S Preterminated sub-rack 96SM SC/UPC 30 m

Nexans ref. 28147309-000-00 - Country ref. 5025945

  • Packaging: Unit
  • Connector type: SC
  • Type of cable: N3S Cabinet Cable (double)
  • Number of optical connectors: 96
  • Length: 30 m
  • Adaptor: SC/UPC



N3S Preterminated sub-rack 96SM SC/UPC 50 m

Nexans ref. 28147509-000-00 - Country ref. 5025946

  • Packaging: Unit
  • Connector type: SC
  • Type of cable: N3S Cabinet Cable (double)
  • Number of optical connectors: 96
  • Length: 50 m
  • Adaptor: SC/UPC



N3S Preterminated sub-rack 96SM SC/UPC 70 m

Nexans ref. 28147709-000-00 - Country ref. 5025947

  • Packaging: Unit
  • Connector type: SC
  • Type of cable: N3S Cabinet Cable (double)
  • Number of optical connectors: 96
  • Length: 70 m
  • Adaptor: SC/UPC



Description

Description

Description

Preterminated fibre optic subrack for N3S system. N3S subrack is delivered preterminated with 48 or 96 fibres and with connectors SC/UPC or SC/APC. The subrack is delivered complete with panel board, adapters, connectors, attach device for N3S, cable fixing device and requested cable length wish of the cable types GAHSQ or N3S Cabinet Cable.

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Cabinet format
600 N3S
Box type
Patching
Colour
White
Cable entry
From the bottom
Type of patching panel
SC Duplex
Fiber optic type
SM (G.652D)

Dimensional characteristics

Dimensional characteristics

Depth
180 mm
Width
112 mm
Apex offset
50 µm
Ferrule outer diameter
2,4999 ± 0,0005 mm
Tolerance of cavity diameter
+1, -0 µm
Concentricity error of cavity
< 1,4 µm

Usage characteristics

Usage characteristics

Field of application
Indoor
Storage temperature, range
-40 ... 70 °C
Operating temperature, range
-30 ... 70 °C
Ambient installation temperature, range
-10 ... 40 °C

Resources

Resources

Documentation

Installation instruction N3S ODF system pdf — 1.0 MB
Download
Product description N3S ODF system pdf — 434.7 kB
Download
