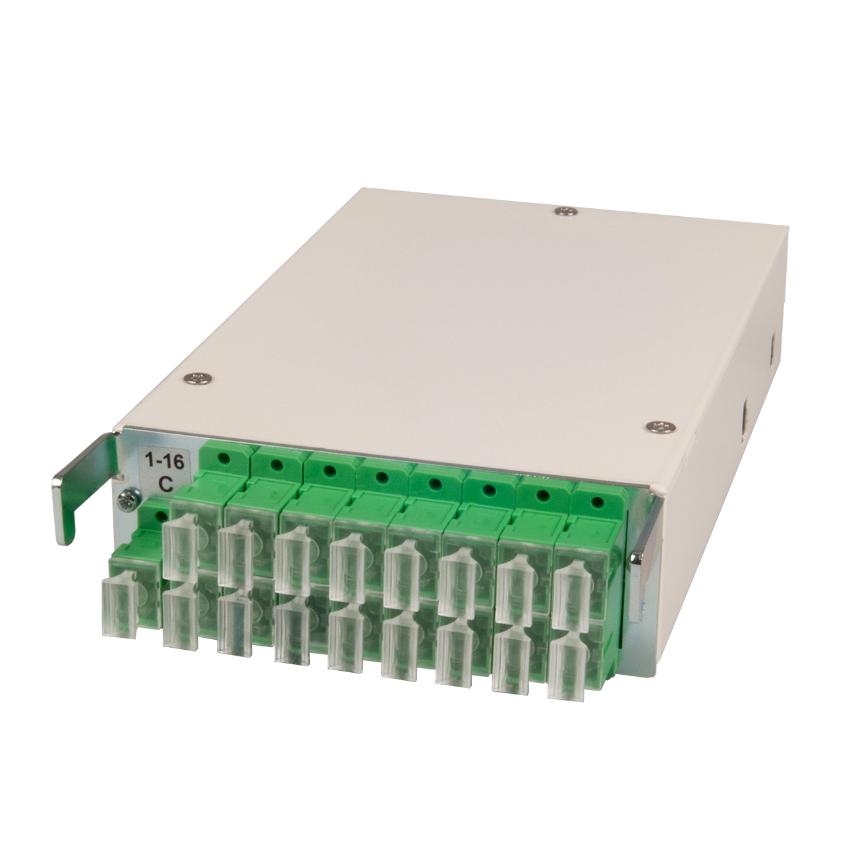

N3S preterminated fibre optic subrack 1:16 splitter SC/APC
N3S preterminated fibre optic subrack 1:16 splitter SC/APC
Preterminated fibre optic box and accessories for PON to be used in N3S or 14-19" optical distribution frames.
Read more- Nexans ref. : 28149109-000-00
- Country ref. : 5035301
- EAN : 7330000197640
Description
Description
Preterminated fibre optic box and accessories for PON in N3S system. The N3S box is delivered preterminated with 1:2 or 1:16 splitter with connectors SC/APC.
The box is to be used with PON accessories when mounted in N3S system or 14-19" frame.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Box type
Colour
White
Connector type
SC/APC
Fiber optic type
SM
Dimensional characteristics
Dimensional characteristics
Depth
180 mm
Width
99 mm
Height
34 mm
Approximate weight per piece
0.3 kg
Number of optical connectors
17
Maximum number of adaptators
9
Apex offset
50 µm
Ferrule outer diameter
2,4999 ± 0,0005 mm
Number of optical fibres
17
Tolerance of cavity diameter
+1, -0 µm
Concentricity error of cavity
< 1,4 µm
Fibre protrusion
< -0,05 µm
Fibre undercut
> -0,05 µm
Transmission characteristics
Transmission characteristics
Return Loss, Minimum, dB
65 dB
Insertion Loss, max, 1550 nm, dB
- dB
Insertion Loss, nom, 1550 nm, dB
- dB
Usage characteristics
Usage characteristics
Field of application
Indoor
Storage temperature, range
-40 ... 70 °C
Operating temperature, range
-30 ... 70 °C
Ambient installation temperature, range
-10 ... 40 °C
