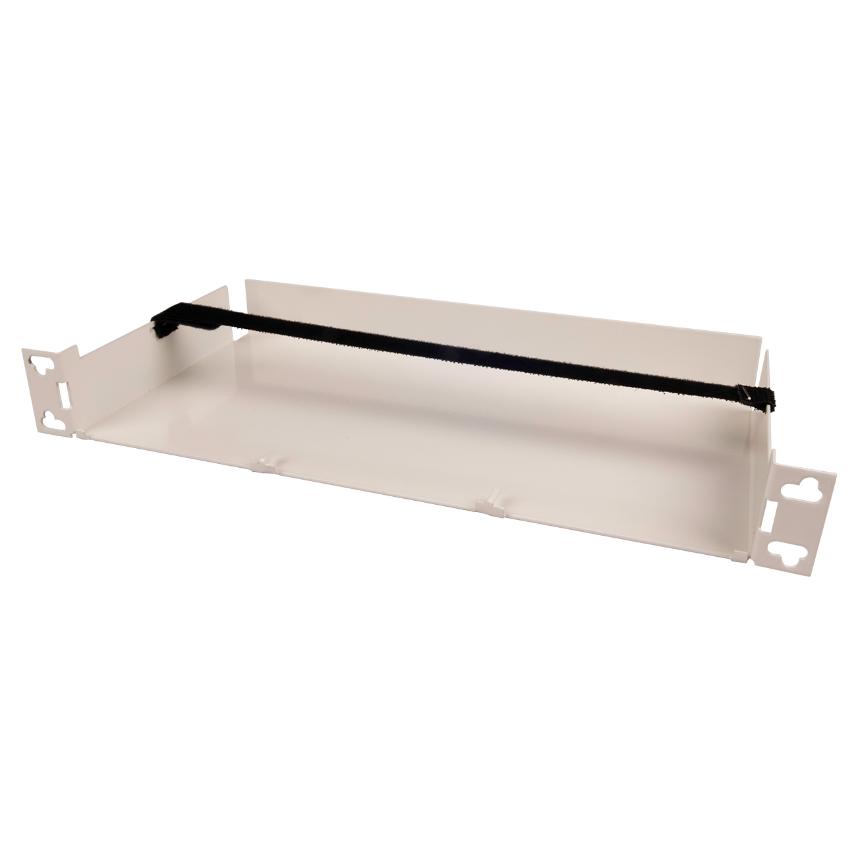

14 inch subrack for PON boxes
14 inch subrack for PON boxes
14 inch subrack for PON boxes.
Read more- Nexans ref. : 30311409-000-00
- Country ref. : 5002101
- EAN : 7330000194076
Description
Description
Preterminated fibre optic box and accessories for PON in N3S system. The N3S box is delivered preterminated with 1:2 or 1:16 splitter with connectors SC/APC.
The box is to be used with PON accessories when mounted in N3S system or 14-19" frame.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Box type
Colour
White
Connector type
Fiber optic type
Dimensional characteristics
Dimensional characteristics
Depth
160.5 mm
Width
354 mm
Height
43.5 mm
Approximate weight per piece
0.7 kg
Number of optical connectors
-
Maximum number of adaptators
-
Apex offset
- µm
Ferrule outer diameter
Number of optical fibres
-
Tolerance of cavity diameter
Concentricity error of cavity
Fibre protrusion
Fibre undercut
Transmission characteristics
Transmission characteristics
Return Loss, Minimum, dB
- dB
Insertion Loss, max, 1550 nm, dB
- dB
Insertion Loss, nom, 1550 nm, dB
- dB
Usage characteristics
Usage characteristics
Field of application
Indoor
Storage temperature, range
-40 ... 70 °C
Operating temperature, range
-30 ... 70 °C
Ambient installation temperature, range
-10 ... 40 °C
