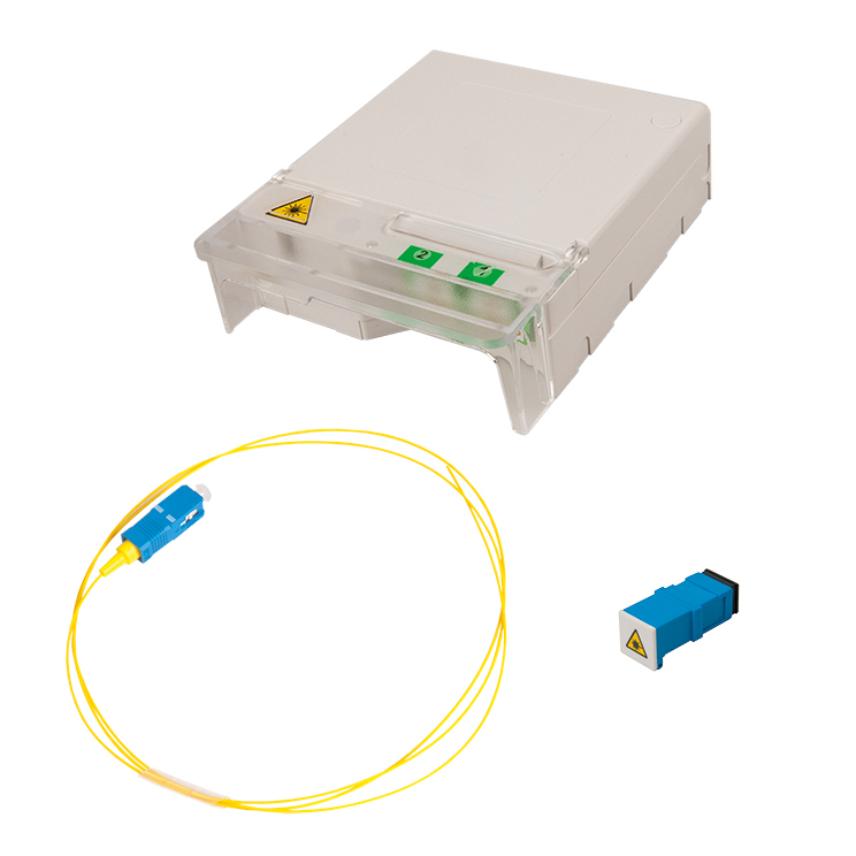

Optical Terminal Outlet TETR@XS 1 SC/UPC with adaptor and pigtail
Optical Terminal Outlet TETR@XS 1 SC/UPC with adaptor and pigtail
Fibre optic outlet designed for the FTTH-market.
Read more- Nexans ref. : 28758109-000-00
- Country ref. : 5026092
- EAN : 7330000104440
Description
Description
The Tetr@XS terminal outlet has been designed for the FTTH market to terminate the optical network at the indoor subscriber side. It is the last passive interface before the converter.
The outlet is composed of an equipped base and a cover. For surface mounted outlet, the cable can comes from the left, the right and the bottom.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Colour
White
Material
Plastic
Dimensional characteristics
Dimensional characteristics
Depth
28 mm
Height
91 mm
Maximum number of adaptators
2
Outer Diameter
67 mm
Weight
58 g
Width
80 mm
Usage characteristics
Usage characteristics
Field of application
Indoor
