Patch cord Reinforced SM Blue

Patch cord Reinforced SM Blue

Patch cord Reinforced SM Blue

A complete range of high quality fiber optic patchcords for high performance telecom data transmission applications.

Read more

Datasheet PDF

Products

products

Description

Description

Description

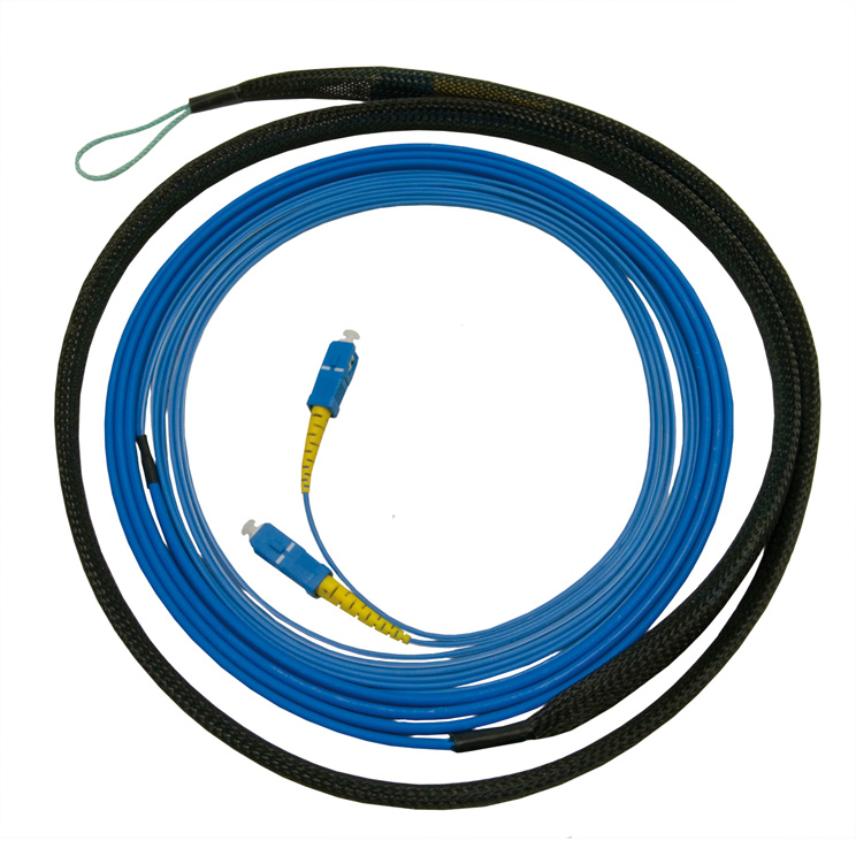

Reinforced Patchcords in different length used for cross-connections or termination of active-equipment. The patchcord has two preconnected ends. Tight buffered fibres are used in the patchcord. The cable is sheathed with blue flame-retardant and halogene-free sheath.

The product is available in length from 1 to 50 meter and has a protection over the connectors in both ends.

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Type of cable

GOGQ

Outer sheath

HFFR (polyolefin)

Sheath colour

Blue

Reinforcement members material type

Aramid yarn

Fiber optic type

SM (G.652D)

Type of secondary protection

Tight buffer

Halogen free

Yes

Dimensional characteristics

Dimensional characteristics

Number of optical fibres

2

Number of optical connectors

4

External dimensions

3.2 x 5.2 mm

Apex offset

50 µm

Tolerance of cavity diameter

+1, -0 µm

Concentricity error of cavity

< 1,4 µm

Fibre protrusion

< -0,05 µm

Fibre undercut

> -0,05 µm

Transmission characteristics

Transmission characteristics

Insertion Loss, nom, 1550 nm, dB

0.2 dB

Insertion Loss, max, 1550 nm, dB

0.5 dB

Return Loss, Minimum, dB

55 dB

Mechanical characteristics

Mechanical characteristics

Maximum pulling force by laying

0.5 kN

Maximum permanent tensile load

0.7 kN

Usage characteristics

Usage characteristics

Field of application

Indoor

Minimum dynamic operating bending radius

40.0 mm

Storage temperature, range

-40 ... 70 °C

Operating temperature, range

-30 ... 60 °C

Ambient installation temperature, range

-10 ... 40 °C
