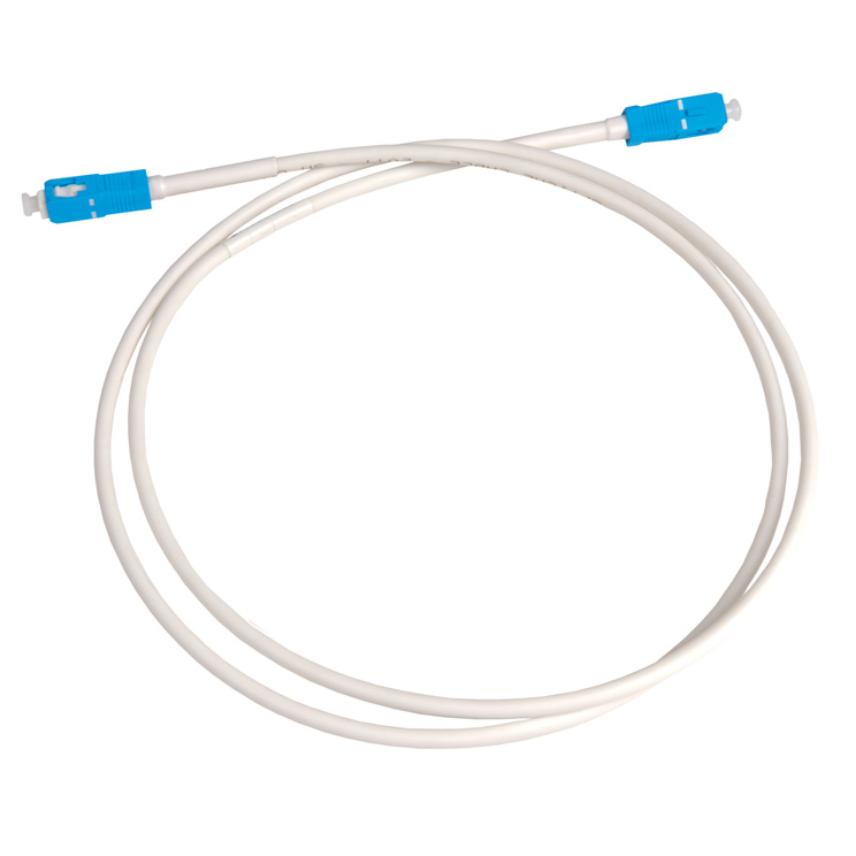

Villapatch SM White

Villapatch SM White

Villapatch SM White

A complete range of high quality fiber optic patchcords for high performance telecom data transmission applications.

Read more
Contact us

Products

Actions
Filters

  • products

Villapatch SC/APC-LC/UPC 1m, White

Nexans ref. 28504009-000-00 - Country ref. 5070890

  • Packaging: Unit
  • Connector type: LC-SC/APC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 1 m



Villapatch SC/APC-LC/UPC 3m, White

Nexans ref. 28504109-000-00 - Country ref. 5070891

  • Packaging: Unit
  • Connector type: LC-SC/APC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 3 m



Villapatch SC/APC-LC/UPC 5m, White

Nexans ref. 28504209-000-00 - Country ref. 5070892

  • Packaging: Unit
  • Connector type: LC-SC/APC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 5 m



Villapatch SC/APC-LC/UPC 7m, White

Nexans ref. 28504309-000-00 - Country ref. 5070893

  • Packaging: Unit
  • Connector type: LC-SC/APC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 7 m



Villapatch SC/APC-LC/UPC 15m, White

Nexans ref. 28504509-000-00 - Country ref. 5070894

  • Packaging: Unit
  • Connector type: LC-SC/APC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 15 m



Villapatch SC/APC-LC/UPC 20m, White

Nexans ref. 28505309-000-00

  • Packaging: Unit
  • Connector type: LC-SC/APC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 20 m



Villapatch SC/APC-LC/UPC 25m, White

Nexans ref. 28505509-000-00

  • Packaging: Unit
  • Connector type: LC-SC/APC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 25 m



Villapatch SC/UPC-SC/UPC 0.3m, White

Nexans ref. 28507709-000-00 - Country ref. 5072074

  • Packaging: Unit
  • Connector type: SC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 0.3 m



Villapatch SC/UPC-SC/UPC 0.5m, White

Nexans ref. 28508009-000-00 - Country ref. 5068604

  • Packaging: Unit
  • Connector type: SC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 0.5 m



Villapatch slim SC/UPC-SC/UPC 0,5m, White

Nexans ref. 28743409-000-00 - Country ref. 5073043

  • Packaging: Unit
  • Connector type: SC
  • Outer Diameter: 2 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 0.5 m



Villapatch SC/UPC-SC/UPC 0.75m, White

Nexans ref. 28507409-000-00

  • Packaging: Unit
  • Connector type: SC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 0.8 m



Villapatch SC/UPC-SC/UPC 1m, White

Nexans ref. 28508109-000-00 - Country ref. 5070862

  • Packaging: Unit
  • Connector type: SC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 1 m



Villapatch slim SC/UPC-SC/UPC 1m, White

Nexans ref. 28743509-000-00 - Country ref. 5074716

  • Packaging: Unit
  • Connector type: SC
  • Outer Diameter: 2 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 1 m



Villapatch SC/UPC-SC/UPC 2m, White

Nexans ref. 28508209-000-00 - Country ref. 5070863

  • Packaging: Unit
  • Connector type: SC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 2 m



Villapatch SC/UPC-SC/UPC 3m, White

Nexans ref. 28508309-000-00 - Country ref. 5070864

  • Packaging: Unit
  • Connector type: SC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 3 m



Villapatch SC/UPC-SC/UPC 4m, White

Nexans ref. 28508409-000-00 - Country ref. 5070865

  • Packaging: Unit
  • Connector type: SC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 4 m



Villapatch SC/UPC-SC/UPC 5m, White

Nexans ref. 28508509-000-00 - Country ref. 5070866

  • Packaging: Unit
  • Connector type: SC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 5 m



Villapatch SC/UPC-SC/UPC 7m, White

Nexans ref. 28508709-000-00 - Country ref. 5070867

  • Packaging: Unit
  • Connector type: SC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 7 m



Villapatch SC/UPC-SC/UPC 9m, White

Nexans ref. 28508909-000-00 - Country ref. 5070868

  • Packaging: Unit
  • Connector type: SC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 9 m



Villapatch SC/UPC-SC/UPC 11m, White

Nexans ref. 28509109-000-00 - Country ref. 5070869

  • Packaging: Unit
  • Connector type: SC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 11 m



Villapatch SC/UPC-SC/UPC 13m, White

Nexans ref. 28509309-000-00 - Country ref. 5070870

  • Packaging: Unit
  • Connector type: SC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 13 m



Villapatch SC/UPC-SC/UPC 15m, White

Nexans ref. 28509509-000-00 - Country ref. 5070871

  • Packaging: Unit
  • Connector type: SC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 15 m



Villapatch SC/UPC-SC/UPC 19m, White

Nexans ref. 28509609-000-00

  • Packaging: Unit
  • Connector type: SC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 19 m



Villapatch SC/UPC-SC/UPC 20m, White

Nexans ref. 28509909-000-00 - Country ref. 5070895

  • Packaging: Unit
  • Connector type: SC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 20 m



Villapatch SC/UPC-SC/UPC 22m, White

Nexans ref. 28509709-000-00

  • Packaging: Unit
  • Connector type: SC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 22 m



Villapatch SC/UPC-SC/UPC 25m, White

Nexans ref. 28509809-000-00 - Country ref. 5070896

  • Packaging: Unit
  • Connector type: SC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 25 m



Villapatch SC/UPC-SC/UPC 30m, White

Nexans ref. 28504909-000-00 - Country ref. 5070897

  • Packaging: Unit
  • Connector type: SC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 30 m



Villapatch SC/UPC-SC/UPC 35m, White

Nexans ref. 28505009-000-00 - Country ref. 5070898

  • Packaging: Unit
  • Connector type: SC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 35 m



Villapatch SC/UPC-SC/UPC 40m, White

Nexans ref. 28505609-000-00 - Country ref. 5071126

  • Packaging: Unit
  • Connector type: SC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 40 m



Villapatch SC/UPC-SC/UPC 70m, White

Nexans ref. 28505809-000-00

  • Packaging: Unit
  • Connector type: SC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 40 m



Villapatch SC/UPC-SC/UPC 45m, White

Nexans ref. 28505709-000-00 - Country ref. 5071127

  • Packaging: Unit
  • Connector type: SC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 45 m



Villapatch SC/UPC-SC/UPC 50m, White

Nexans ref. 28505109-000-00 - Country ref. 5070899

  • Packaging: Unit
  • Connector type: SC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 50 m



Villapatch SC/UPC-SC/UPC 55m, White

Nexans ref. 28500109-000-00

  • Packaging: Unit
  • Connector type: SC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 55 m



Villapatch SC/UPC-SC/UPC 60m, White

Nexans ref. 28500309-000-00

  • Packaging: Unit
  • Connector type: SC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 60 m



Villapatch SC/UPC-SC/UPC 65m, White

Nexans ref. 28500409-000-00

  • Packaging: Unit
  • Connector type: SC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 65 m



Villapatch SC/UPC-LC/UPC 0.5m, White

Nexans ref. 28502909-000-00 - Country ref. 5070880

  • Packaging: Unit
  • Connector type: SC-LC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 0.5 m



Villapatch SC/UPC-LC/UPC 1m, White

Nexans ref. 28503009-000-00 - Country ref. 5068953

  • Packaging: Unit
  • Connector type: SC-LC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 1 m



Villapatch SC/UPC-LC/UPC 2m, White

Nexans ref. 28503109-000-00 - Country ref. 5070881

  • Packaging: Unit
  • Connector type: SC-LC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 2 m



Villapatch SC/UPC-LC/UPC 3m, White

Nexans ref. 28503209-000-00 - Country ref. 5070882

  • Packaging: Unit
  • Connector type: SC-LC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 3 m



Villapatch SC/UPC-LC/UPC 4m, White

Nexans ref. 28503309-000-00 - Country ref. 5070883

  • Packaging: Unit
  • Connector type: SC-LC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 4 m



Villapatch SC/UPC-LC/UPC 5m, White

Nexans ref. 28503409-000-00 - Country ref. 5070884

  • Packaging: Unit
  • Connector type: SC-LC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 5 m



Villapatch SC/UPC-LC/UPC 7m, White

Nexans ref. 28503509-000-00 - Country ref. 5070885

  • Packaging: Unit
  • Connector type: SC-LC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 7 m



Villapatch SC/UPC-LC/UPC 9m, White

Nexans ref. 28503609-000-00 - Country ref. 5070886

  • Packaging: Unit
  • Connector type: SC-LC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 9 m



Villapatch SC/UPC-LC/UPC 11m, White

Nexans ref. 28503709-000-00 - Country ref. 5070887

  • Packaging: Unit
  • Connector type: SC-LC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 11 m



Villapatch SC/UPC-LC/UPC 13m, White

Nexans ref. 28503809-000-00 - Country ref. 5070888

  • Packaging: Unit
  • Connector type: SC-LC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 13 m



Villapatch SC/UPC-LC/UPC 15m, White

Nexans ref. 28503909-000-00 - Country ref. 5070889

  • Packaging: Unit
  • Connector type: SC-LC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 15 m



Villapatch SC/UPC-LC/UPC 20m, White

Nexans ref. 28502509-000-00

  • Packaging: Unit
  • Connector type: SC-LC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 20 m



Villapatch SC/UPC-SC/APC 0.5m, White

Nexans ref. 28500909-000-00 - Country ref. 5068951

  • Packaging: Unit
  • Connector type: SC-SC/APC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 60 dB
  • Length: 0.5 m



Villapatch SC/UPC-SC/APC 1m, White

Nexans ref. 28501009-000-00 - Country ref. 5068952

  • Packaging: Unit
  • Connector type: SC-SC/APC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 60 dB
  • Length: 1 m



Villapatch SC/UPC-SC/APC 2m, White

Nexans ref. 28501109-000-00 - Country ref. 5069080

  • Packaging: Unit
  • Connector type: SC-SC/APC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 60 dB
  • Length: 2 m



Villapatch SC/UPC-SC/APC 3m, White

Nexans ref. 28501209-000-00 - Country ref. 5069081

  • Packaging: Unit
  • Connector type: SC-SC/APC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 60 dB
  • Length: 3 m



Villapatch SC/UPC-SC/APC 4m, White

Nexans ref. 28501309-000-00 - Country ref. 5069082

  • Packaging: Unit
  • Connector type: SC-SC/APC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 60 dB
  • Length: 4 m



Villapatch SC/UPC-SC/APC 5m, White

Nexans ref. 28501409-000-00 - Country ref. 5069083

  • Packaging: Unit
  • Connector type: SC-SC/APC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 60 dB
  • Length: 5 m



Villapatch SC/UPC-SC/APC 7m, White

Nexans ref. 28501609-000-00 - Country ref. 5069084

  • Packaging: Unit
  • Connector type: SC-SC/APC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 60 dB
  • Length: 7 m



Villapatch SC/UPC-SC/APC 9m, White

Nexans ref. 28501809-000-00 - Country ref. 5069085

  • Packaging: Unit
  • Connector type: SC-SC/APC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 60 dB
  • Length: 9 m



Villapatch SC/UPC-SC/APC 11m, White

Nexans ref. 28502009-000-00 - Country ref. 5069086

  • Packaging: Unit
  • Connector type: SC-SC/APC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 60 dB
  • Length: 11 m



Villapatch SC/UPC-SC/APC 13m, White

Nexans ref. 28502209-000-00 - Country ref. 5069087

  • Packaging: Unit
  • Connector type: SC-SC/APC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 60 dB
  • Length: 13 m



Villapatch SC/UPC-SC/APC 15m, White

Nexans ref. 28502409-000-00 - Country ref. 5069088

  • Packaging: Unit
  • Connector type: SC-SC/APC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 60 dB
  • Length: 15 m



Villapatch SC/APC-SC/APC 0.5m, White

Nexans ref. 28507609-000-00 - Country ref. 5068605

  • Packaging: Unit
  • Connector type: SC/APC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 0.5 m



Villapatch SC/APC-SC/APC 1m, White

Nexans ref. 28507809-000-00 - Country ref. 5068606

  • Packaging: Unit
  • Connector type: SC/APC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 1 m



Villapatch SC/APC-SC/APC 2m, White

Nexans ref. 28506009-000-00 - Country ref. 5068608

  • Packaging: Unit
  • Connector type: SC/APC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 2 m



Villapatch SC/APC-SC/APC 3m, White

Nexans ref. 28506109-000-00 - Country ref. 5068609

  • Packaging: Unit
  • Connector type: SC/APC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 3 m



Villapatch SC/APC-SC/APC 4m, White

Nexans ref. 28506209-000-00 - Country ref. 5068610

  • Packaging: Unit
  • Connector type: SC/APC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 4 m



Villapatch SC/APC-SC/APC 5m, White

Nexans ref. 28506309-000-00 - Country ref. 5068611

  • Packaging: Unit
  • Connector type: SC/APC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 5 m



Villapatch SC/APC-SC/APC 7m, White

Nexans ref. 28506509-000-00 - Country ref. 5068612

  • Packaging: Unit
  • Connector type: SC/APC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 7 m



Villapatch SC/APC-SC/APC 9m, White

Nexans ref. 28506709-000-00 - Country ref. 5068613

  • Packaging: Unit
  • Connector type: SC/APC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 9 m



Villapatch SC/APC-SC/APC 11m, White

Nexans ref. 28506909-000-00 - Country ref. 5068614

  • Packaging: Unit
  • Connector type: SC/APC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 11 m



Villapatch SC/APC-SC/APC 13m, White

Nexans ref. 28507109-000-00 - Country ref. 5068615

  • Packaging: Unit
  • Connector type: SC/APC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 13 m



Villapatch SC/APC-SC/APC 15m, White

Nexans ref. 28507309-000-00 - Country ref. 5068616

  • Packaging: Unit
  • Connector type: SC/APC
  • Outer Diameter: 4.1 mm
  • Return Loss, Minimum, dB: 50 dB
  • Length: 15 m



Description

Description

Patchcords in different length used for termination between outlet and active-equipment. The patchcord has two preconnected ends. Tight buffered fibres are used in the patchcord. The cable is sheathed with white flame-retardant and halogen-free sheath.

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Type of cable
GOGQ
Outer sheath
HFFR (polyolefin)
Sheath colour
White
Reinforcement members material type
Aramid yarn
Fiber optic type
SM (G.657B)
Type of secondary protection
Tight buffer
Halogen free
Yes

Dimensional characteristics

Dimensional characteristics

Number of optical fibres
1
Number of optical connectors
2
Apex offset
50 µm
Ferrule outer diameter
2,4999 ± 0,0005 mm
Tolerance of cavity diameter
+1, -0 µm
Concentricity error of cavity
< 1,4 µm
Fibre protrusion
< -0,05 µm
Fibre undercut
> -0,05 µm

Transmission characteristics

Transmission characteristics

Insertion Loss, max, 1550 nm, dB
0.5 dB
Insertion Loss, nom, 1550 nm, dB
0.2 dB

Mechanical characteristics

Mechanical characteristics

Maximum pulling force by laying
0.3 kN
Maximum permanent tensile load
0.5 kN

Usage characteristics

Usage characteristics

Field of application
Indoor
Minimum dynamic operating bending radius
15.0 mm
Storage temperature, range
-40 ... 70 °C
Operating temperature, range
-30 ... 60 °C
Ambient installation temperature, range
-10 ... 50 °C

Resources

Resources

Close

Our websites

Select your country to find our products and solutions

Contact us

Topics on which you wish to get more informations:

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close
