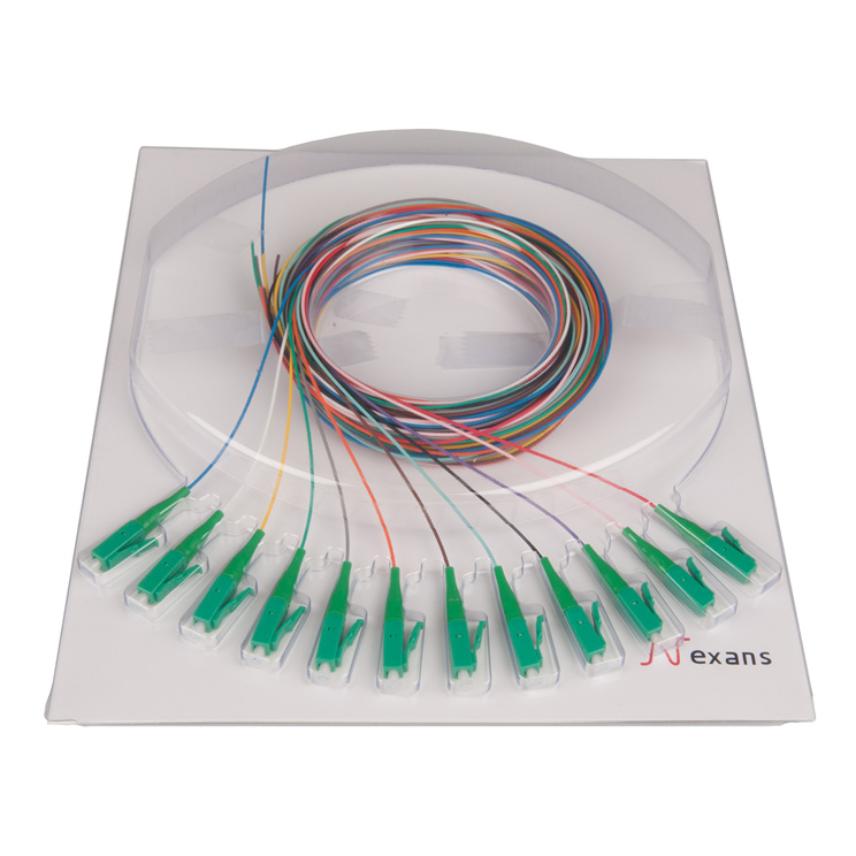

Pigtail S12 1SM G657A1 LC/APC 2 m 12-pcs
Pigtail S12 1SM G657A1 LC/APC 2 m 12-pcs
A complete range of high quality fiber optic pigtails for high performance telecom data transmission applications.
Read more- Nexans ref. : 48759009-000-00
- Country ref. : 5072933
- EAN : 7330000128439
Description
Description
Description
Pigtails in different length used for splicing against optical fibers in subracks and outlets. The pigtail is preconnected in one end. Tight buffered fibre is used and it is sheathed with flame retardant and halogen free sheath.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Type of cable
Tight buffer
Colour
-
Fiber optic type
SM (G657.A1)
Type of secondary protection
Tight buffer
Connector type
LC/APC
Dimensional characteristics
Dimensional characteristics
Outer Diameter
0.9 mm
Approximate weight per piece
0.2 kg
Number of optical connectors
12
Ferrule endface curvature, radius UPC
-
Ferrule endface curvature, radius APC
5< r <12 mm
Apex offset
50 µm
Ferrule outer diameter
2,4999 ± 0,0005 mm
Tolerance of cavity diameter
+1, -0 µm
Concentricity error of cavity
< 1,4 µm
Fibre protrusion
< -0,05 µm
Fibre undercut
> -0,05 µm
Transmission characteristics
Transmission characteristics
Insertion Loss, max, 1550 nm, dB
0.5 dB
Insertion Loss, nom, 1550 nm, dB
0.2 dB
Return Loss, Minimum, dB
60 dB
Usage characteristics
Usage characteristics
Field of application
Indoor
Length
2 m
Minimum dynamic operating bending radius
15.0 mm
Storage temperature, range
-40 ... 70 °C
Operating temperature, range
-40 ... 70 °C
Ambient installation temperature, range
-10 ... 50 °C
