Preterminated fibre optic wall-mounted fan-out box
Preterminated fibre optic wall-mounted fan-out box
Preterminated fibre optic fan-out box for wall-mounting.
Read morePreterminated fibre optic wall-mounted box with fan-outs 12SM SC/UPC
Nexans ref. 28495309-000-00 - Country ref. 5026626
- Packaging: Box (Unit)
Description
Description
Description

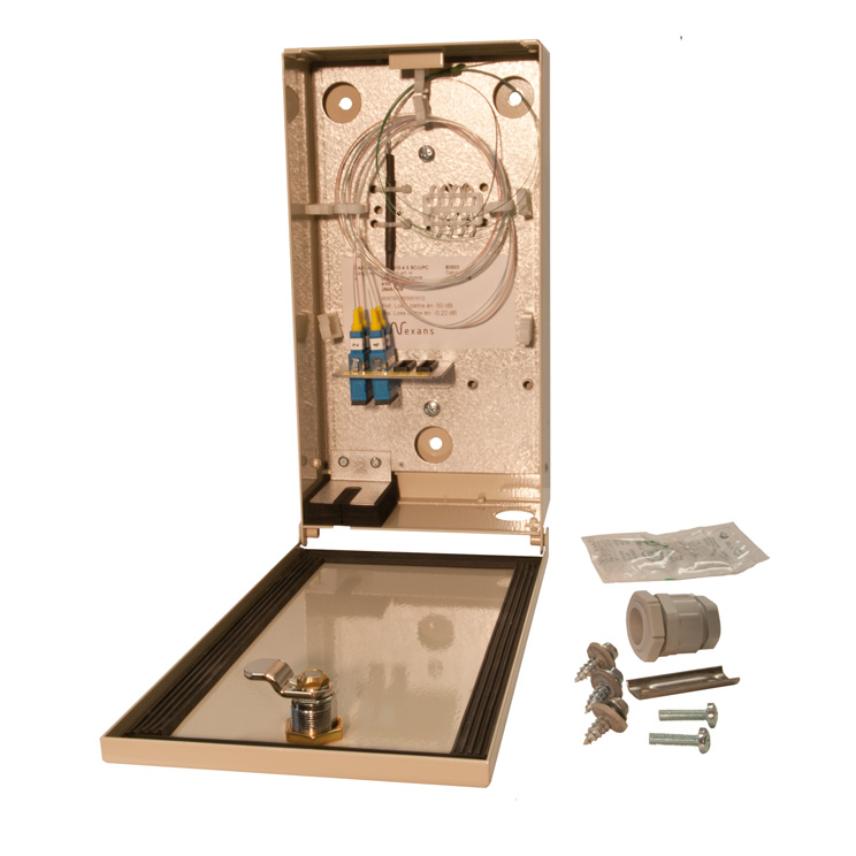

Preterminated fibre optic wall-mounted box with fan-outs. The box is delivered preterminated with 4 - 24 fibres and with connectors of type SC/UPC or SC/APC. The wall-mounted box is delivered complete with panel board, adapters, connectors, attach device and cable fixing device.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Box type
Splicing and patching
Colour
White
Connector type
SC Duplex
Fiber optic type
SM (G.652D)
Type of secondary protection
4-fibre ribbon
Dimensional characteristics
Dimensional characteristics
Number of optical connectors
12
Apex offset
50 µm
Ferrule outer diameter
2,4999 ± 0,0005 mm
Tolerance of cavity diameter
+1, -0 µm
Concentricity error of cavity
< 1,4 µm
Usage characteristics
Usage characteristics
Field of application
Indoor
Adaptor
SC/UPC
Storage temperature, range
-40 ... 70 °C
Operating temperature, range
-30 ... 70 °C
Ambient installation temperature, range
-10 ... 40 °C
