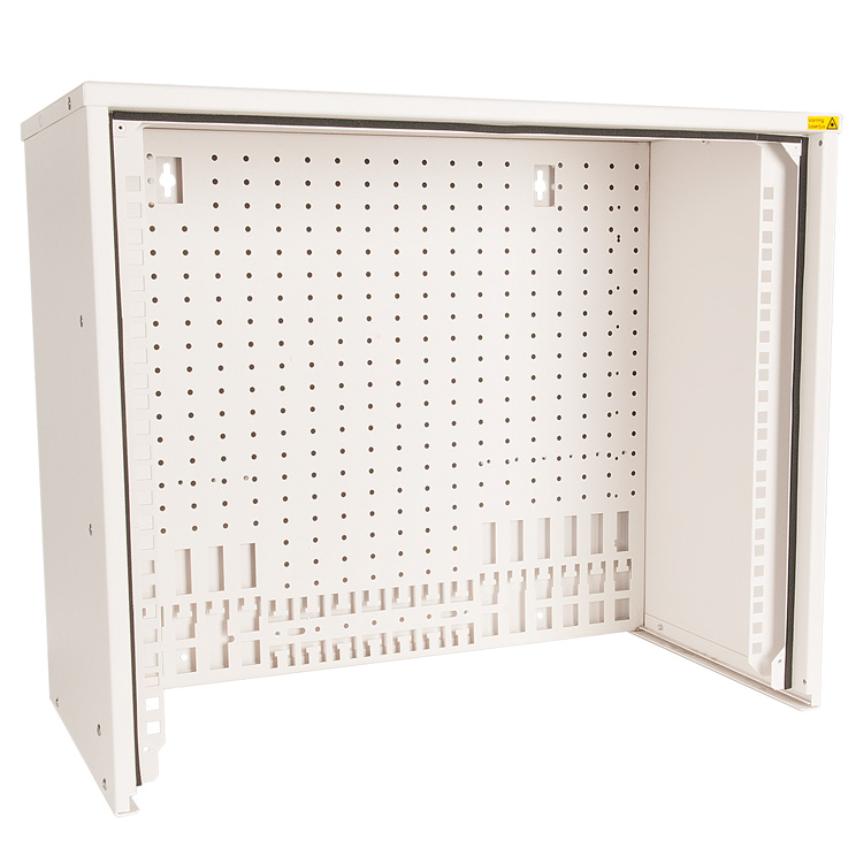

Splice cabinet NS16+

Description

NS16+ which is made of powder coated galvanized steel is suitable for use in all types of splicing and / or branching.
Suitable environments are indoors or outdoors in street cabinet or similar.
NS16+ has the capacity for splicing up to 1728 fibers in 4-fbers ribbon design (single fiber 864 fibers). The cabinet is prepared for mid span.
The standard cabinet is an empty cabinet without front cover and the bottom / top (depending on how the cabinet is used). The standard cabinet is supplemented as needed with accessories such as splice unit, splice tray, cable clamps, front cover and Bottom / top.

The cabinet has room for six cable clamps. Ducts and micro cables can be secured with cable ties along the entire width of the cabinet or with a connection for the selected dimension of micro duct, see accessories list.

The cabinet must be completed with splice units and cassettes after the amount of fiber that shall be spliced.
