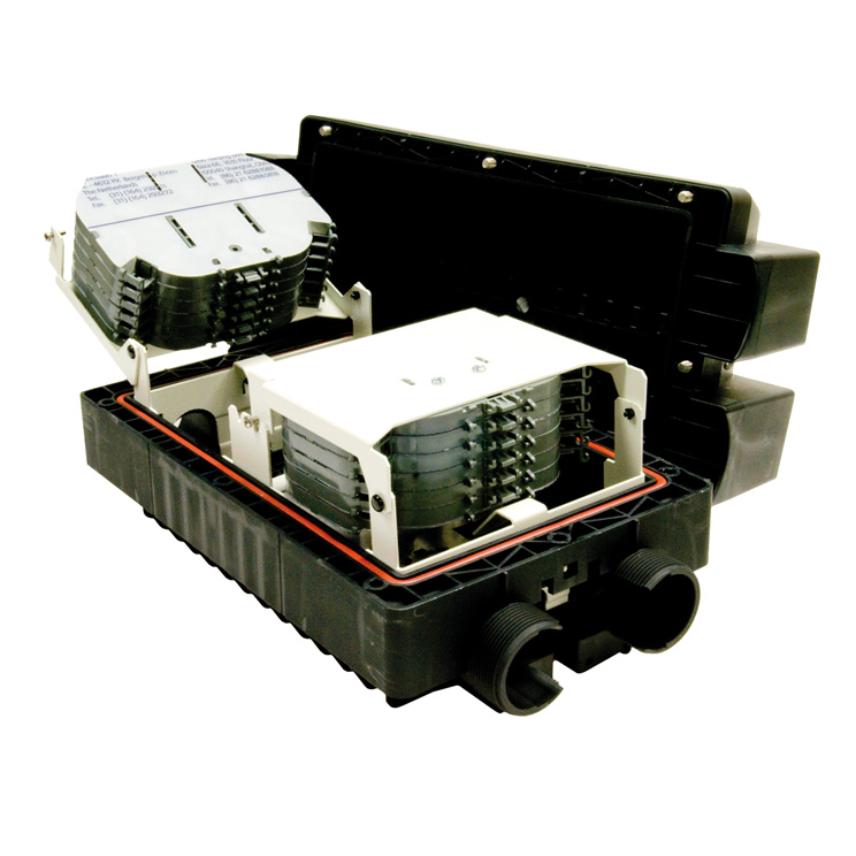

Splice closure WTC1,5 midspan 144 fiber

Description

Description

The WTC1,5 MIDSP LT/RI 144 fibre splice closure has 12 cassette and 2 blind plugs.
This WTC1,5 can be used for straight or butt mid span splicing or branching of up to 144 fibres in single fibre form. The box is supplemented with cable sealing’s for the type of cable to be used.

For more information see the installation instruction.


Characteristics

Characteristics

Construction characteristics

Construction characteristics

Colour
Black
Lead free
Yes
Material
Polycarbonate

Dimensional characteristics

Dimensional characteristics

Approximate weight per piece
3 kg
Approximate weight per set
3.7 kg
Height
150 mm
Length
355 mm
Number of cables
50
Number of cassettes
12
Number of optical fibres
144
Width
190 mm

Usage characteristics

Usage characteristics

Field of application
Indoor, Outdoor, Underground
Number of ports
4
Resistance to vibrations
High
Water proof
IP 68, pressurizable
