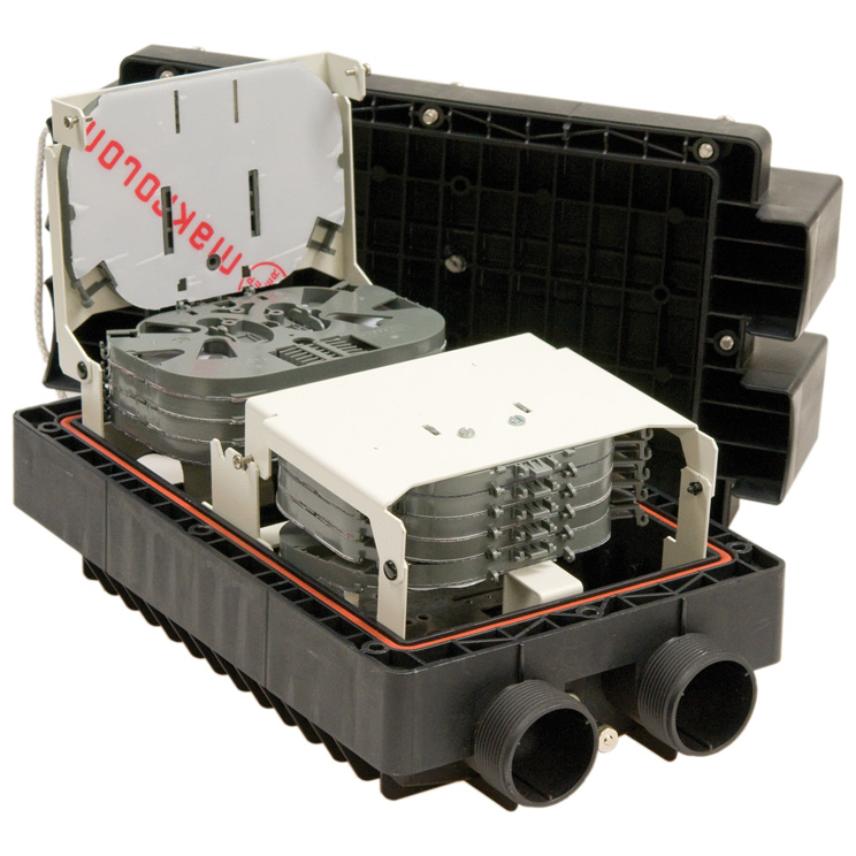

Splice closure WTC1,5 144 fiber
Splice closure WTC1,5 144 fiber
Fibre-optic splice closure WTC1,5 LT/RI 144 fibre is used for straight splicing or branching of tube (LT) and/or fibre ribbon cables (RI) up to 144 fibres.
Read more- Nexans ref. : 30469609-000-00
- Country ref. : 5060821
- EAN : 3444360155845
Description
Description
The WTC1,5 LT/RI 144 fibre splice closure has 12 cassettes and 2 blind plugs,
This WTC1,5 can be used for straight splicing or branching of up to 144 fibres in single fibre form. The box is supplemented with cable clamps and cable sealing’s for the type of cable to be used.
For more information see installation instruction.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Colour
Black
Lead free
Yes
Material
Polycarbonate
Dimensional characteristics
Dimensional characteristics
Approximate weight per piece
2.95 kg
Approximate weight per set
3.6 kg
Height
150 mm
Length
355 mm
Number of cables
74
Number of cassettes
12
Number of optical fibres
144
Width
190 mm
Usage characteristics
Usage characteristics
Field of application
Indoor, Outdoor, Underground
Number of ports
4
Resistance to vibrations
High
Water proof
IP 68, pressurizable
