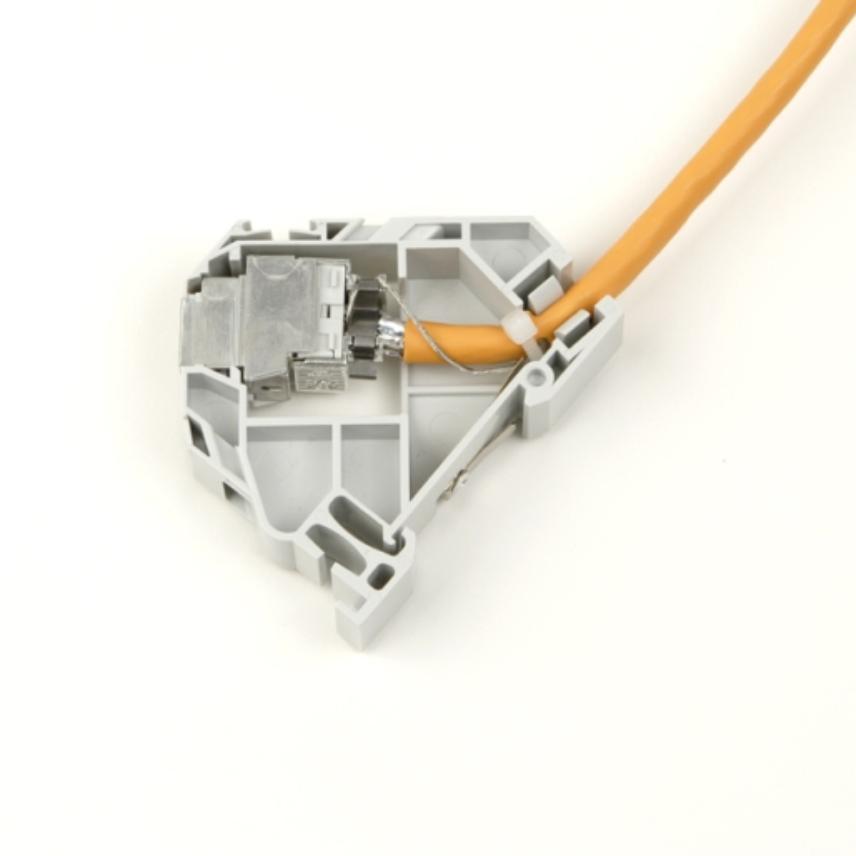

LANmark Industry module DIN-rail mount with 1 Snap-In Category 6A

DESCRIPTION

Standards

ISO/IEC 11801; ISO/IEC 24702

Application

The LANmark Industry DIN-Rail mount is designed to enable the installation of LANmark-6A Snap-in data connectors in industrial cabinets fitted with a 35mm DIN-Rail. Several DIN-Rail mounts can be joined together to form a row. The LANmark-6A connector exceeds the requirements of the ISO/IEC 11801. As such it supports all data applications defined for Cat 5, Cat 5e, Cat.6 and Cat 6A, such as:

• 10baseT
• Fast Ethernet
• Gigabit Ethernet
• 10 Gigabit Ethernet
• 155 ATM
• 622 ATM
• 1.2 ATM
• Industrial Ethernet

Performance

The LANmark-6A Snap-in connector has been designed to reach the highest performance in Category 6A. It has been tested as specified in the TIA/EIA-568-B.2-1, the IEC 60603-7-5 (screened) standards. Furthermore, it complies with the Terms and conditions for use of the EC Verified marking on generic cabling products, as certified by Delta independent testing.

Installation

The LANmark-6A Snap-in connector is designed to be terminated without punchdown tool. For fast and easy installation an optional comfort tool can be used.

• Fast termination
• Colour code : TSB568A & TSB568B
• Can be used with all types of cables : UTP, F/UTP, SF/UTP and S/FTP
• Accepts 24, 23 and 22 AWG cable, PUR, LSZH
• For all LANmark industrial cables
