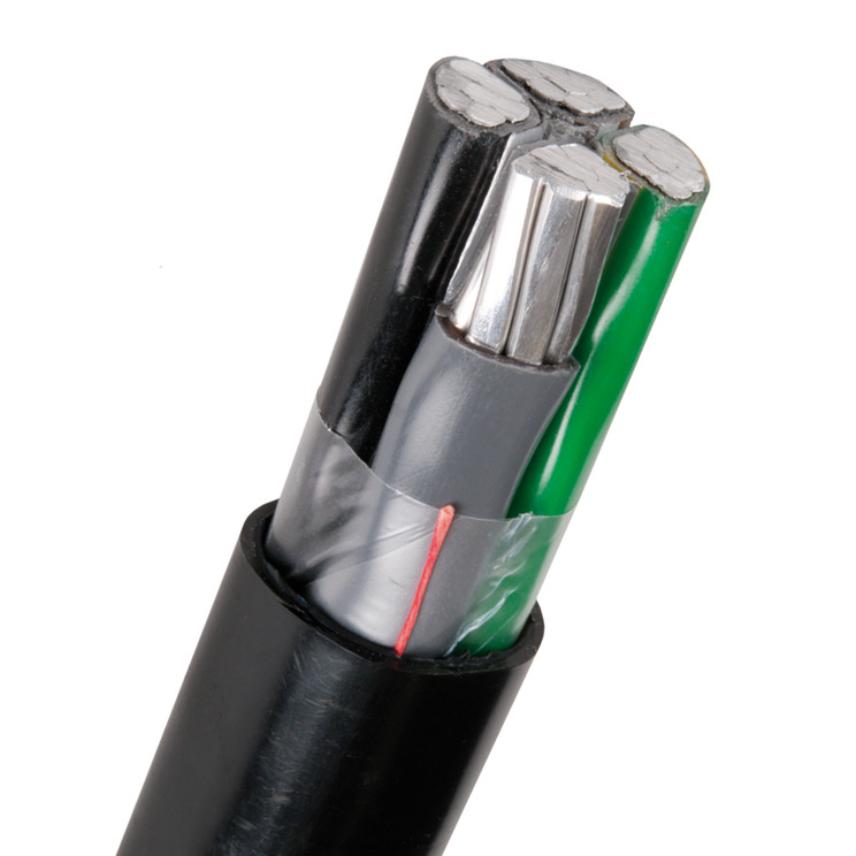

AML 1 kV
AML 1 kV
The cable may be used for fixed installation outdoors in air, ground and water. AML is a halogenfree, TPI insulated, PE sheathed cable with aluminium conductors. The sheath material consists of at least 45 % recycled PE and the cable is easy to recycle.
Read moreAML 1 kV 4G25
Nexans ref. 15400698-201-05 - Country ref. 0008845
- Packaging: Drum (500m)
- Conductor shape: Round, stranded
- Conductor cross-section: 25 mm²
- Nominal outer diameter: 24.0 mm
- Approximate weight: 69.0 kg/100m
AML 1 kV 4G50
Nexans ref. 15400998-201-05 - Country ref. 0008865
- Packaging: Drum (500m)
- Conductor shape: Sector-shaped stranded (SM)
- Conductor cross-section: 50 mm²
- Nominal outer diameter: 27.0 mm
- Approximate weight: 78.0 kg/100m
AML 1 kV 4G95
Nexans ref. 15401198-201-05 - Country ref. 0008875
- Packaging: Drum (500m)
- Conductor shape: Sector-shaped stranded (SM)
- Conductor cross-section: 95 mm²
- Nominal outer diameter: 35.0 mm
- Approximate weight: 150.0 kg/100m
AML 1 kV 4G150
Nexans ref. 15401398-201-05 - Country ref. 0008885
- Packaging: Drum (500m)
- Conductor shape: Sector-shaped stranded (SM)
- Conductor cross-section: 150 mm²
- Nominal outer diameter: 43.0 mm
- Approximate weight: 215.0 kg/100m
AML 1 kV 4G240
Nexans ref. 15401598-201-05 - Country ref. 0008895
- Packaging: Drum (500m)
- Conductor shape: Sector-shaped stranded (SM)
- Conductor cross-section: 240 mm²
- Nominal outer diameter: 54.0 mm
- Approximate weight: 360.0 kg/100m
Description
Description
Standards
-
InternationalHD 603 S2/5O
-
NationalSS 424 14 18
AML is a halogen free, PP-insulated, PE-sheathed cable with stranded aluminium conductors. The cable is designed according to HD 603. The conductors have resistance and number of wires according to SS-EN 60228 class 2. The cores are identified by colours according to HD 308. The sheath is marked type/manufacturer/year+month/metre marking. AML is not flame retardant. The sheath opens with cable tear thread.
Lifemark(TM) recycling marking
The external surface of the outer sheath is embossed with a text which specifies all components in the polymers and prepares the cable for future recycling.
Standards
AML is manufactured and tested according to SS 424 14 18 i.a.p..The cable can be loaded in accordance with valid powercurrent regulations and SS 436 40 00.
Certification
Declaration of conformity.
Quality and environmental management system
Certified according to ISO 9001, IRIS, ISO/TS 16949 and ISO 14001.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Selling & delivery Information
AML will be delivered in lengths of 500 m. The drum is marked with manufacturer, type of cable and length. The ends of the cable are sealed.
