J-H(ST)H 2x2x0,8
Nexans ref. 37214171-902-05 - Country ref. 4838115
- Packaging: Reel (500m)
- Insulation: HFFR
- Colour: White

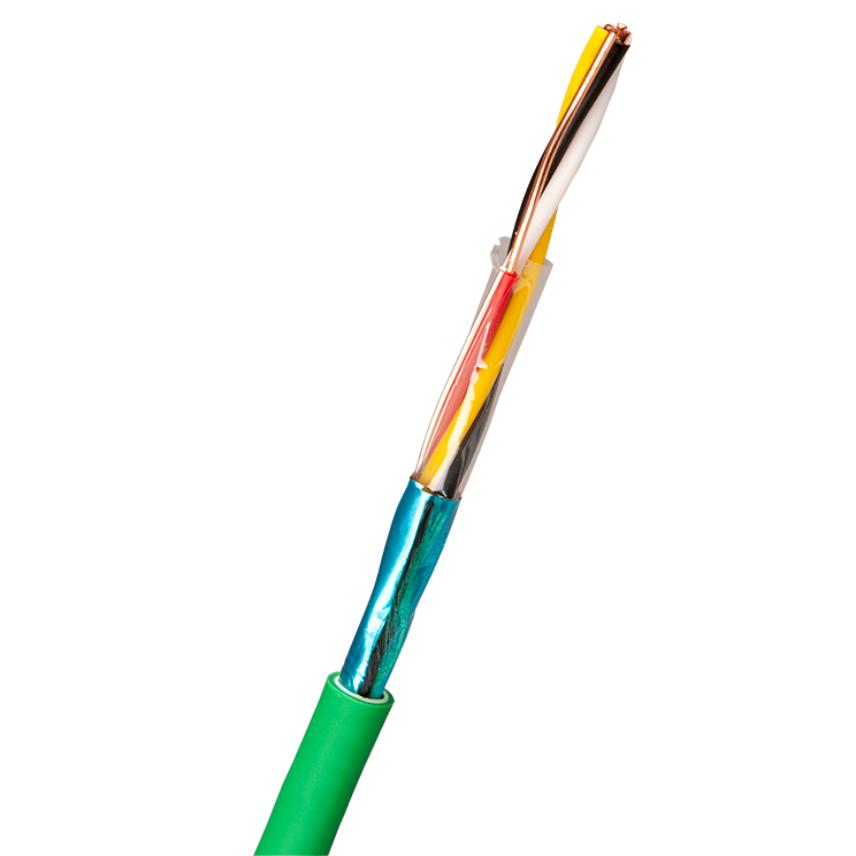

J-H(ST)H 2x2x0,8
Nexans ref. 37214171-805-05 - Country ref. 4837815
- Packaging: Reel (500m)
- Insulation: PE
- Colour: Green
Description
Description
Standards
-
TestIEC 60332-1
DESCRIPTION
PE-insulated, Al-foil-screened and HFFR-sheathed signalling cable to be used for EIB/KNX-bus systems. Intended for indoor cabling. Fire performance according to CPR class Dcas2d2a2.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor shape
Single wired
Conductor material
Annealed copper
Screen
Aluminium-Polyester tape + tinned copper drain wire
Outer sheath
HFFR (polyolefin)
Halogen free
Yes
Dimensional characteristics
Dimensional characteristics
Conductor diameter
0.8 mm
Nominal outer diameter
6.2 mm
Approximate weight
5.02 kg/100m
Electrical characteristics
Electrical characteristics
Max. DC resistance of the conductor at 20°C
36.6 Ohm/km
Ohmical resistance of the insulation
500 MOhm.km
Nominal capacitance core to core
120.0 pF/m
Maximum operating voltage
- V
Usage characteristics
Usage characteristics
Laying operation bending radius
50 mm
Length
500 m
Packaging
Spool 500 m
Ambient installation temperature, range
-10 ... 50 °C
Operating temperature, range
-15 ... 70 °C
Resources
Resources
Documentation
Colour Scheme (in Swedish)
pdf — 18.7 kB
Selling & delivery Information
J-H(ST)H will be delivered in lengths of 500 m. The drum is marked with manufacturer, type of cable and length. The ends of the cable are sealed.
