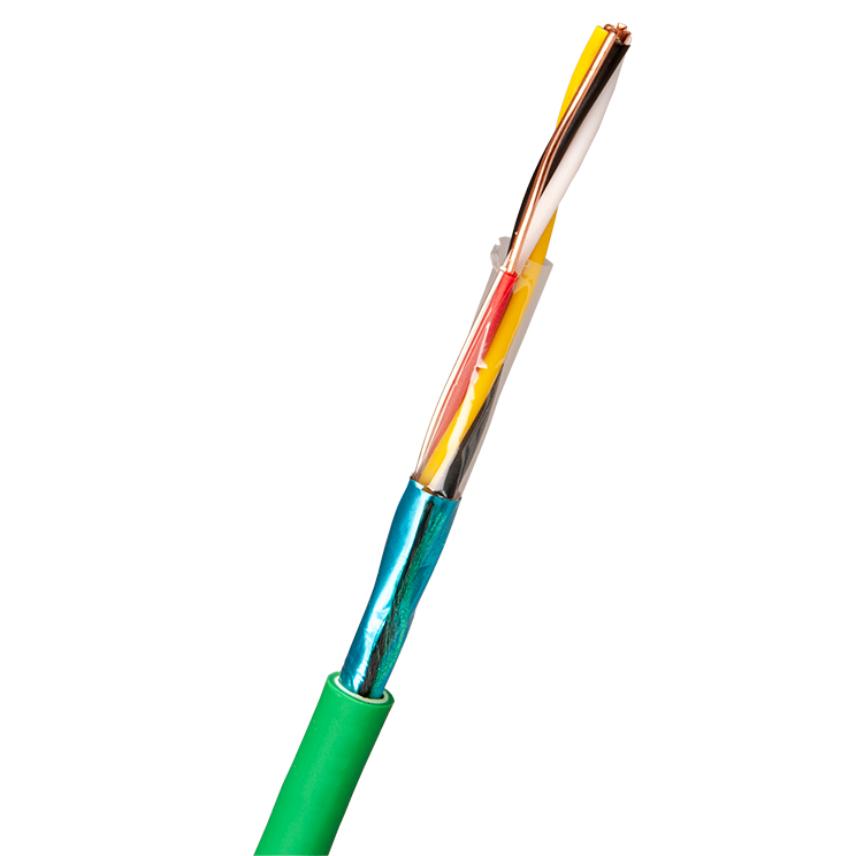

J-H(ST)H 2x2x0,8
J-H(ST)H 2x2x0,8
Halogen free, flame retardant bus cable.
Read more- Nexans ref. : 37214171-805-05
- Country ref. : 4837815
- EAN : 7330000136731
Description
Description
Standards
-
TestIEC 60332-1
DESCRIPTION
PE-insulated, Al-foil-screened and HFFR-sheathed signalling cable to be used for EIB/KNX-bus systems. Intended for indoor cabling. Fire performance according to CPR class Dcas2d2a2.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor shape
Single wired
Conductor material
Annealed copper
Insulation
PE
Screen
Aluminium-Polyester tape + tinned copper drain wire
Outer sheath
HFFR (polyolefin)
Colour
Green
Halogen free
Yes
Dimensional characteristics
Dimensional characteristics
Conductor diameter
0.8 mm
Nominal outer diameter
6.2 mm
Approximate weight
5.02 kg/100m
Electrical characteristics
Electrical characteristics
Max. DC resistance of the conductor at 20°C
36.6 Ohm/km
Ohmical resistance of the insulation
500 MOhm.km
Nominal capacitance core to core
120.0 pF/m
Maximum operating voltage
- V
Usage characteristics
Usage characteristics
Laying operation bending radius
50 mm
Length
500 m
Packaging
Spool 500 m
Ambient installation temperature, range
-10 ... 50 °C
Operating temperature, range
-15 ... 70 °C
Resources
Resources
Documentation
Colour Scheme (in Swedish)
pdf — 18.7 kB
Selling & delivery Information
J-H(ST)H will be delivered in lengths of 500 m. The drum is marked with manufacturer, type of cable and length. The ends of the cable are sealed.
Declaration of Performance
- Declaration of Performance n� : 1000647-SEGR
- Certification Date : 11/24/22
- AVCP (Assessment and Verification of Constancy of Performance) : System 3
- Notified body : 0366
- Declared performance : Dca-s2,d2,a2
