19 inch Fibre optic subrack with pigtail

19 inch Fibre optic subrack with pigtail

19 inch Fibre optic subrack with pigtail

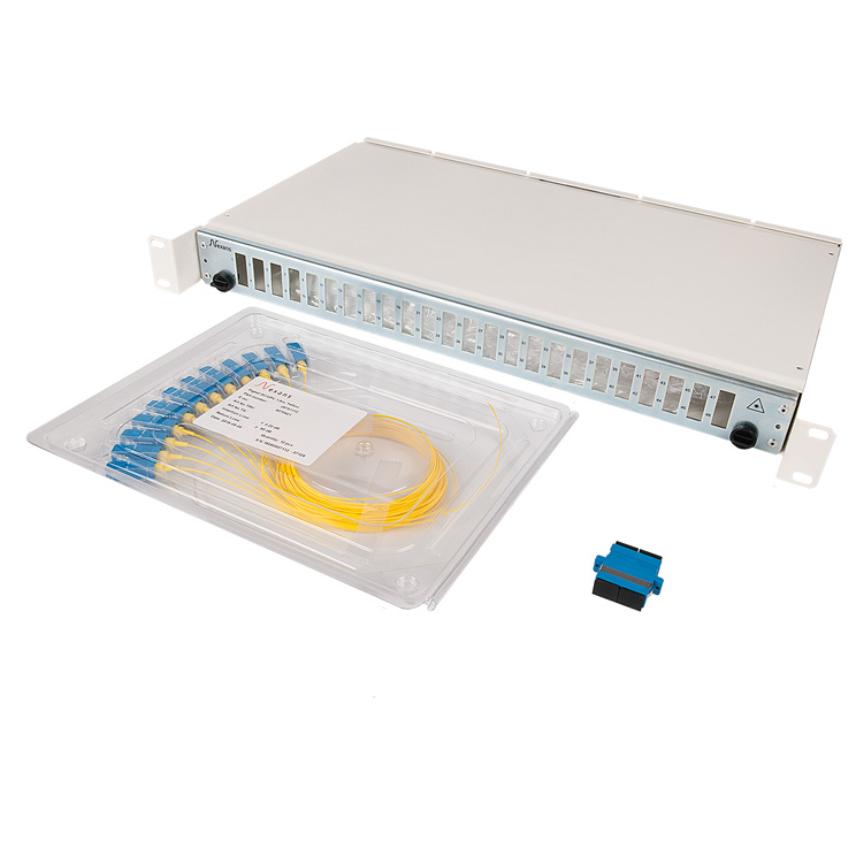

The fiber optic subrack type 19" is designed for use in 19" system. 19" subrack can be installed in a frame/cabinet with a depth of least 400 mm.

Read more
Contact us

Products

Actions
Filters

  • products

19 inch Subrack 1U with installation kit 12SM SC/UPC Pigtail

Nexans ref. 48230109-000-00 - Country ref. 5026172

  • Packaging: Box (Unit)
  • Type of patching panel: SC Duplex
  • Connector type: SC
  • Height: 44 mm
  • Heightunit: 1 U
  • Number of optical connectors: 12
  • Maximum number of adaptators: 24



19 inch Subrack 1U with installation kit 24SM SC/UPC Pigtail

Nexans ref. 48230209-000-00 - Country ref. 5026173

  • Packaging: Box (Unit)
  • Type of patching panel: SC Duplex
  • Connector type: SC
  • Height: 44 mm
  • Heightunit: 1 U
  • Number of optical connectors: 24
  • Maximum number of adaptators: 24



19 inch Subrack 1U with installation kit 48SM SC/UPC Pigtail

Nexans ref. 48230309-000-00 - Country ref. 5026174

  • Packaging: Box (Unit)
  • Type of patching panel: SC Duplex
  • Connector type: SC
  • Height: 44 mm
  • Heightunit: 1 U
  • Number of optical connectors: 48
  • Maximum number of adaptators: 24



19 inch Subrack 2U with installation kit 96SM SC/UPC Pigtail

Nexans ref. 48230409-000-00 - Country ref. 5026175

  • Packaging: Box (Unit)
  • Type of patching panel: SC Duplex
  • Connector type: SC
  • Height: 88 mm
  • Heightunit: 2 U
  • Number of optical connectors: 96
  • Maximum number of adaptators: 48



19 inch Subrack 3U with installation kit 144SM SC/UPC Pigtail

Nexans ref. 48230509-000-00 - Country ref. 5026176

  • Packaging: Box (Unit)
  • Type of patching panel: SC Duplex
  • Connector type: SC
  • Height: 132 mm
  • Heightunit: 3 U
  • Number of optical connectors: 144
  • Maximum number of adaptators: 72



19 inch Subrack 4U with installation kit 192SM SC/UPC Pigtail

Nexans ref. 48230609-000-00 - Country ref. 5026177

  • Packaging: Box (Unit)
  • Type of patching panel: SC Duplex
  • Connector type: SC
  • Height: 177 mm
  • Heightunit: 4 U
  • Number of optical connectors: 192
  • Maximum number of adaptators: 96



19 inch Subrack 1U with installation kit 12SM SC/APC Pigtail

Nexans ref. 48231109-000-00 - Country ref. 5026178

  • Packaging: Box (Unit)
  • Type of patching panel: SC Duplex
  • Connector type: SC/APC
  • Height: 44 mm
  • Heightunit: 1 U
  • Number of optical connectors: 12
  • Maximum number of adaptators: 24



19 inch Subrack 1U with installation kit 24SM SC/APC Pigtail

Nexans ref. 48231209-000-00 - Country ref. 5026179

  • Packaging: Box (Unit)
  • Type of patching panel: SC Duplex
  • Connector type: SC/APC
  • Height: 44 mm
  • Heightunit: 1 U
  • Number of optical connectors: 24
  • Maximum number of adaptators: 24



19 inch Subrack 1U with installation kit 48SM SC/APC Pigtail

Nexans ref. 48231309-000-00 - Country ref. 5026180

  • Packaging: Box (Unit)
  • Type of patching panel: SC Duplex
  • Connector type: SC/APC
  • Height: 44 mm
  • Heightunit: 1 U
  • Number of optical connectors: 48
  • Maximum number of adaptators: 24



19 inch Subrack 2U with installation kit 96SM SC/APC Pigtail

Nexans ref. 48231409-000-00 - Country ref. 5026181

  • Packaging: Box (Unit)
  • Type of patching panel: SC Duplex
  • Connector type: SC/APC
  • Height: 88 mm
  • Heightunit: 2 U
  • Number of optical connectors: 96
  • Maximum number of adaptators: 48



19 inch Subrack 3U with installation kit 144SM SC/APC Pigtail

Nexans ref. 48231509-000-00 - Country ref. 5026182

  • Packaging: Box (Unit)
  • Type of patching panel: SC Duplex
  • Connector type: SC/APC
  • Height: 132 mm
  • Heightunit: 3 U
  • Number of optical connectors: 144
  • Maximum number of adaptators: 72



19 inch Subrack 4U with installation kit 192SM SC/APC Pigtail

Nexans ref. 48231609-000-00 - Country ref. 5026183

  • Packaging: Box (Unit)
  • Type of patching panel: SC Duplex
  • Connector type: SC/APC
  • Height: 177 mm
  • Heightunit: 4 U
  • Number of optical connectors: 192
  • Maximum number of adaptators: 96



19 inch Subrack 1U with installation kit 12SM LC/UPC Pigtail

Nexans ref. 48232109-000-00 - Country ref. 5026184

  • Packaging: Box (Unit)
  • Type of patching panel: LC
  • Connector type: LC
  • Height: 44 mm
  • Heightunit: 1 U
  • Number of optical connectors: 12
  • Maximum number of adaptators: 3



19 inch Subrack 1U with installation kit 24SM LC/UPC Pigtail

Nexans ref. 48232209-000-00 - Country ref. 5026185

  • Packaging: Box (Unit)
  • Type of patching panel: LC
  • Connector type: LC
  • Height: 44 mm
  • Heightunit: 1 U
  • Number of optical connectors: 24
  • Maximum number of adaptators: 6



19 inch Subrack 1U with installation kit 48SM LC/UPC Pigtail

Nexans ref. 48232309-000-00 - Country ref. 5026186

  • Packaging: Box (Unit)
  • Type of patching panel: LC
  • Connector type: LC
  • Height: 44 mm
  • Heightunit: 1 U
  • Number of optical connectors: 48
  • Maximum number of adaptators: 12



19 inch Subrack 1U with installation kit 96SM LC/UPC Pigtail

Nexans ref. 48232409-000-00 - Country ref. 5026187

  • Packaging: Box (Unit)
  • Type of patching panel: LC
  • Connector type: LC
  • Height: 44 mm
  • Heightunit: 1 U
  • Number of optical connectors: 96
  • Maximum number of adaptators: 24



19 inch Subrack 2U with installation kit 144SM LC/UPC Pigtail

Nexans ref. 48232509-000-00 - Country ref. 5026188

  • Packaging: Box (Unit)
  • Type of patching panel: LC
  • Connector type: LC
  • Height: 88 mm
  • Heightunit: 2 U
  • Number of optical connectors: 144
  • Maximum number of adaptators: 36



19 inch Subrack 2U with installation kit 192SM LC/UPC Pigtail

Nexans ref. 48232609-000-00 - Country ref. 5026189

  • Packaging: Box (Unit)
  • Type of patching panel: LC
  • Connector type: LC
  • Height: 88 mm
  • Heightunit: 2 U
  • Number of optical connectors: 192
  • Maximum number of adaptators: 48



19 inch Subrack 1U with installation kit 96SM LC/APC Pigtail

Nexans ref. 48233209-000-00 - Country ref. 5027030

  • Packaging: Box (Unit)
  • Type of patching panel: LC
  • Connector type: LC/APC
  • Height: 44 mm
  • Heightunit: 1 U
  • Number of optical connectors: 96
  • Maximum number of adaptators: 24



19 inch Subrack 2U with installation kit 192SM LC/APC Pigtail

Nexans ref. 48233409-000-00 - Country ref. 5027031

  • Packaging: Box (Unit)
  • Type of patching panel: LC
  • Connector type: LC/APC
  • Height: 88 mm
  • Heightunit: 2 U
  • Number of optical connectors: 192
  • Maximum number of adaptators: 48



19 inch Subrack 3U with installation kit 288SM LC/APC Pigtail

Nexans ref. 48233509-000-00 - Country ref. 5027032

  • Packaging: Box (Unit)
  • Type of patching panel: LC
  • Connector type: LC/APC
  • Height: 132 mm
  • Heightunit: 3 U
  • Number of optical connectors: 288
  • Maximum number of adaptators: 72



19 inch Subrack 4U with installation kit 384SM LC/UPC Pigtail

Nexans ref. 48232809-000-00 - Country ref. 5027139

  • Packaging: Box (Unit)
  • Type of patching panel: LC
  • Connector type: LC
  • Height: 177 mm
  • Heightunit: 4 U
  • Number of optical connectors: 384
  • Maximum number of adaptators: 96



19 inch Subrack 3U with installation kit 288SM LC/UPC Pigtail

Nexans ref. 48232709-000-00 - Country ref. 5036966

  • Packaging: Box (Unit)
  • Type of patching panel: LC
  • Connector type: LC
  • Height: 132 mm
  • Heightunit: 3 U
  • Number of optical connectors: 288
  • Maximum number of adaptators: 72



19 inch Subrack 1U 96SM LC/UPC Pigtail

Nexans ref. 48233709-000-00 - Country ref. 5036967

  • Packaging: Box (Unit)
  • Type of patching panel: LC
  • Connector type: LC
  • Height: 44 mm
  • Heightunit: 1 U
  • Number of optical connectors: 96
  • Maximum number of adaptators: 24



19 inch Subrack 2U 192SM LC/UPC Pigtail

Nexans ref. 48233909-000-00 - Country ref. 5036968

  • Packaging: Box (Unit)
  • Type of patching panel: LC
  • Connector type: LC
  • Height: 88 mm
  • Heightunit: 2 U
  • Number of optical connectors: 192
  • Maximum number of adaptators: 48



19 inch Subrack 3U 288SM LC/UPC Pigtail

Nexans ref. 48234009-000-00 - Country ref. 5036969

  • Packaging: Box (Unit)
  • Type of patching panel: LC
  • Connector type: LC
  • Height: 132 mm
  • Heightunit: 3 U
  • Number of optical connectors: 288
  • Maximum number of adaptators: 72



Description

Description

Description

The fiber optic subrack type 19" is designed for use in 19" system. 19" subrack can be installed in a frame/cabinet with a depth of least 400 mm. Pigatils and adapters are enclosed with the subrack.

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Cabinet format
19"
Box type
Splicing and patching
Colour
White
Cable entry
From two ways
Fiber optic type
SM
Type of secondary protection
Tight buffer

Dimensional characteristics

Dimensional characteristics

Depth
305 mm
Width
485 mm
Apex offset
50 µm
Ferrule outer diameter
2,4999 ± 0,0005 mm
Tolerance of cavity diameter
+1, -0 µm
Concentricity error of cavity
< 1,4 µm
Fibre protrusion
< -0,05 µm
Fibre undercut
> -0,05 µm

Usage characteristics

Usage characteristics

Field of application
Indoor
Storage temperature, range
-40 ... 70 °C
Operating temperature, range
-30 ... 70 °C
Ambient installation temperature, range
-15 ... 40 °C
