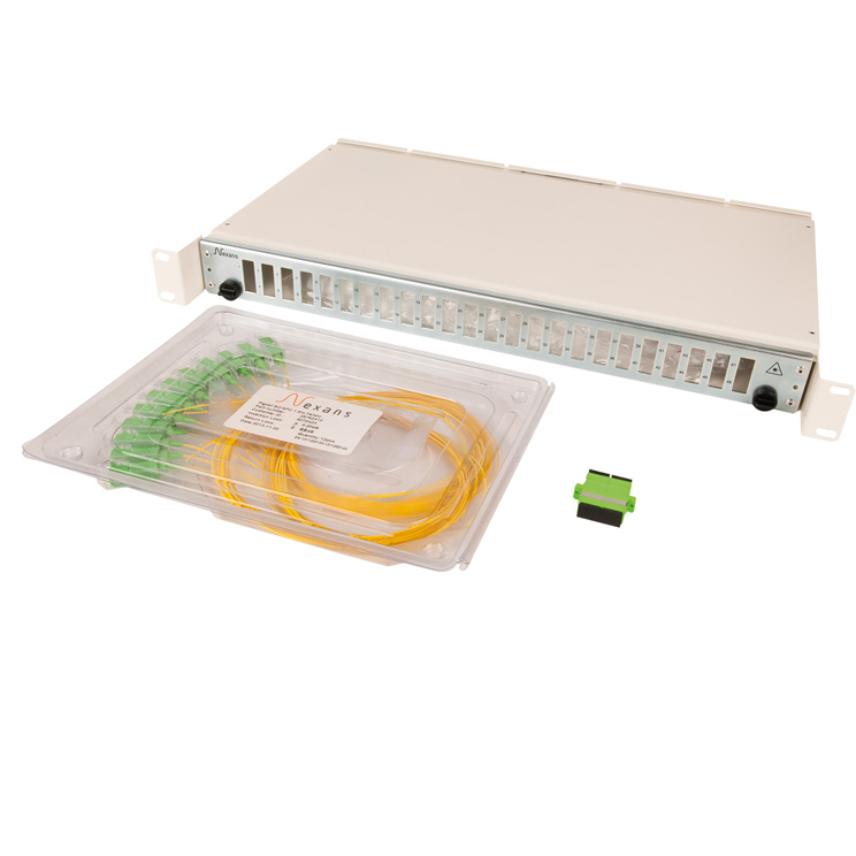

19 inch Subrack 1U with installation kit 12SM SC/APC Pigtail
19 inch Subrack 1U with installation kit 12SM SC/APC Pigtail
The fiber optic subrack type 19" is designed for use in 19" system. 19" subrack can be installed in a frame/cabinet with a depth of least 400 mm.
Read more- Nexans ref. : 48231109-000-00
- Country ref. : 5026178
- EAN : 7330000104624
Description
Description
The fiber optic subrack type 19" is designed for use in 19" system. 19" subrack can be installed in a frame/cabinet with a depth of least 400 mm. Pigatils and adapters are enclosed with the subrack.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Cabinet format
19"
Box type
Splicing and patching
Colour
White
Cable entry
From two ways
Type of patching panel
SC Duplex
Connector type
SC/APC
Fiber optic type
SM
Type of secondary protection
Tight buffer
Dimensional characteristics
Dimensional characteristics
Depth
305 mm
Width
485 mm
Height
44 mm
Heightunit
1 U
Approximate weight per piece
- kg
Number of optical connectors
12
Maximum number of adaptators
24
Apex offset
50 µm
Ferrule outer diameter
2,4999 ± 0,0005 mm
Ferrule endface curvature, radius APC
5< r <12 mm
Ferrule endface curvature, radius UPC
Tolerance of cavity diameter
+1, -0 µm
Concentricity error of cavity
< 1,4 µm
Fibre protrusion
< -0,05 µm
Fibre undercut
> -0,05 µm
Transmission characteristics
Transmission characteristics
Return Loss, Minimum, dB
60 dB
Insertion Loss, max, 1550 nm, dB
0.5 dB
Insertion Loss, nom, 1550 nm, dB
0.2 dB
Usage characteristics
Usage characteristics
Field of application
Indoor
Storage temperature, range
-40 ... 70 °C
Operating temperature, range
-30 ... 70 °C
Ambient installation temperature, range
-15 ... 40 °C
Packaging
Box
