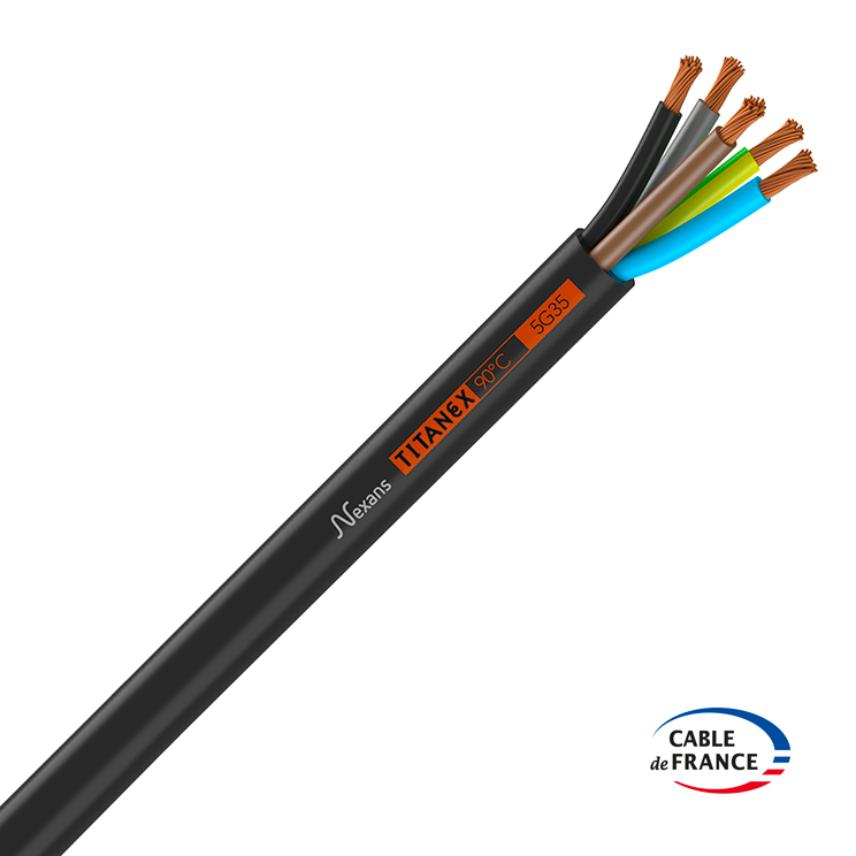

H07RN-F TITANEX 5G35 Trumma 500 m

Core identification

(In accordance with european harmonization HD308 S2)

1x: black
2x: brown - blue
3x: brown - black - grey (brown - black - blue if the conductor cross-section is 1.5 or 2.5mm²)
3G: brown - blue - green/yellow
4x: brown - black - grey - blue
4G: brown - black - grey - green/yellow
5x: black cores with printed numbers
5G: blue - brown - black - grey - green/yellow
7 cores and above : black cores with printed numbers

Current rating capacities

The data are indicated for continuous duty operation and apply to:

• Maximum conductor temperature = 90 °C
• Nominal frequencies = 50 or 60 Hz
• One cable in free air (on perforated trays)
• Ambient temperature = 30 °C

Data recording from IEC 60364-5-52 or NF C 15-100

Voltage drop

The data are based on Cos ø = 0.8

Minimum bending radius

• Static use: 3 x cable outer diameter
• Dynamic use: 6 to 8 x outer cable diameter.
